Inside Rearview Mirror Replacement

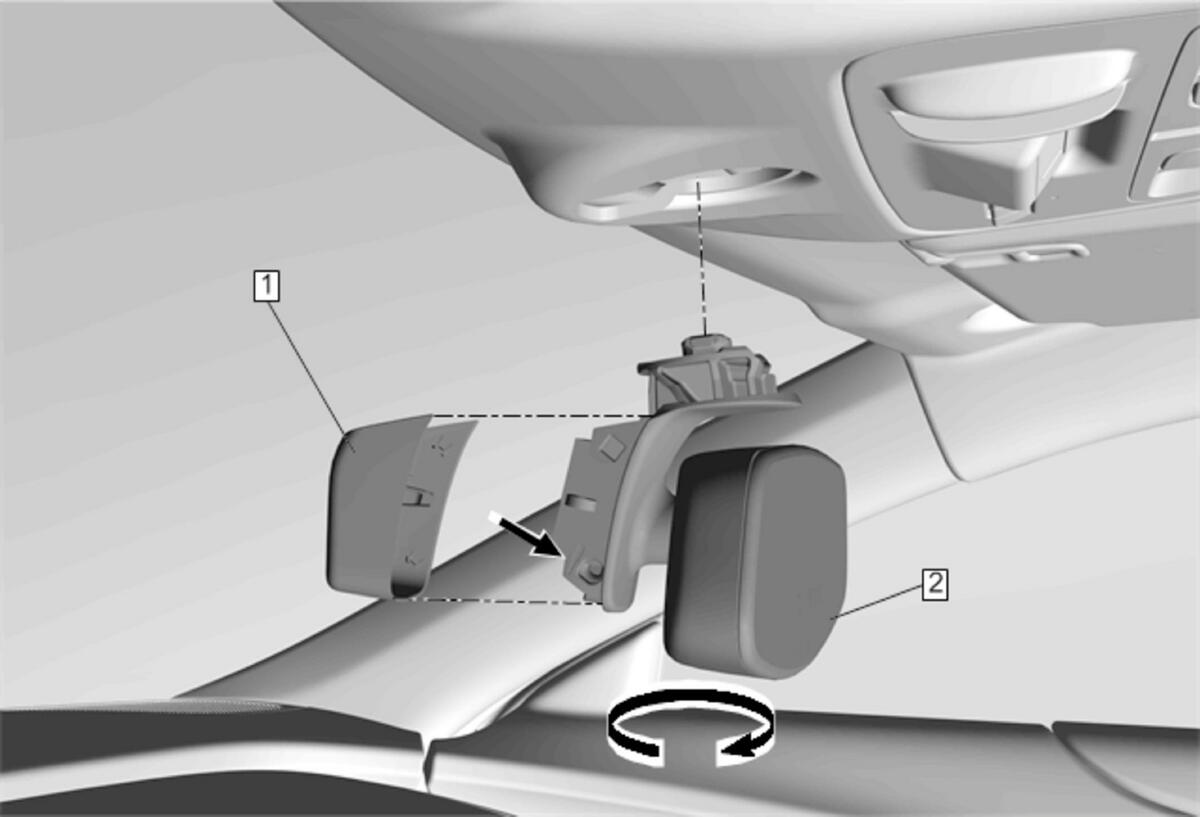

GM4177521

Courtesy of GENERAL MOTORS COMPANY

Callout

Component Name

1

Inside Rearview Mirror Cover
Procedure
Using appropriate tool, release the bottom cover from the mirror.

2

Inside Rearview Mirror

Procedure

Adjust the mirror to the full upward position.
Place a flat-bladed tool through both lower holes on the mirror.
Using the flat-bladed tool, rotate the mirror 90 degrees to remove the mirror.
Disconnect the electrical connector.
Using the flat-bladed tool, install the mirror by rotating the mirror until an audible click is heard. An audible click is heard when the mirror is fully seated.

NOTE:

DO NOT grab the mirror to remove or to install, you will damage the mirror.
Ensure screwdriver is through both lower holes of the mirror or you will damage the mirror.
More force is required to remove the mirror than to install the mirror.
