Front Seat Heater Vent Control Module Replacement

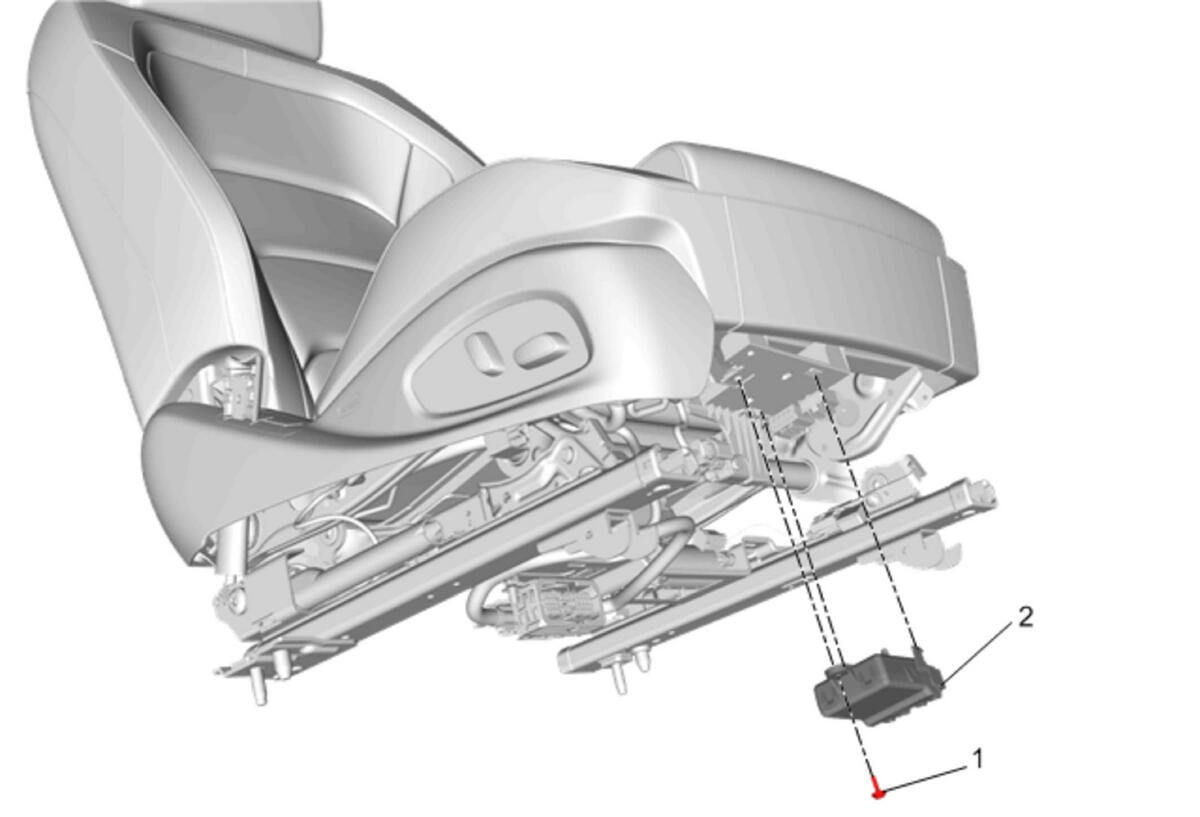

GM4165018Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Front Seat Removal and Installation
1 Front Seat Heater Vent Control Module Fastener
CAUTION:

Refer to Fastener Caution .


Tighten
2.5 N.m (22 lb in)
2 Front Seat Heater Vent Control Module
Procedure
Release the retaining tabs.
