Installation Procedure

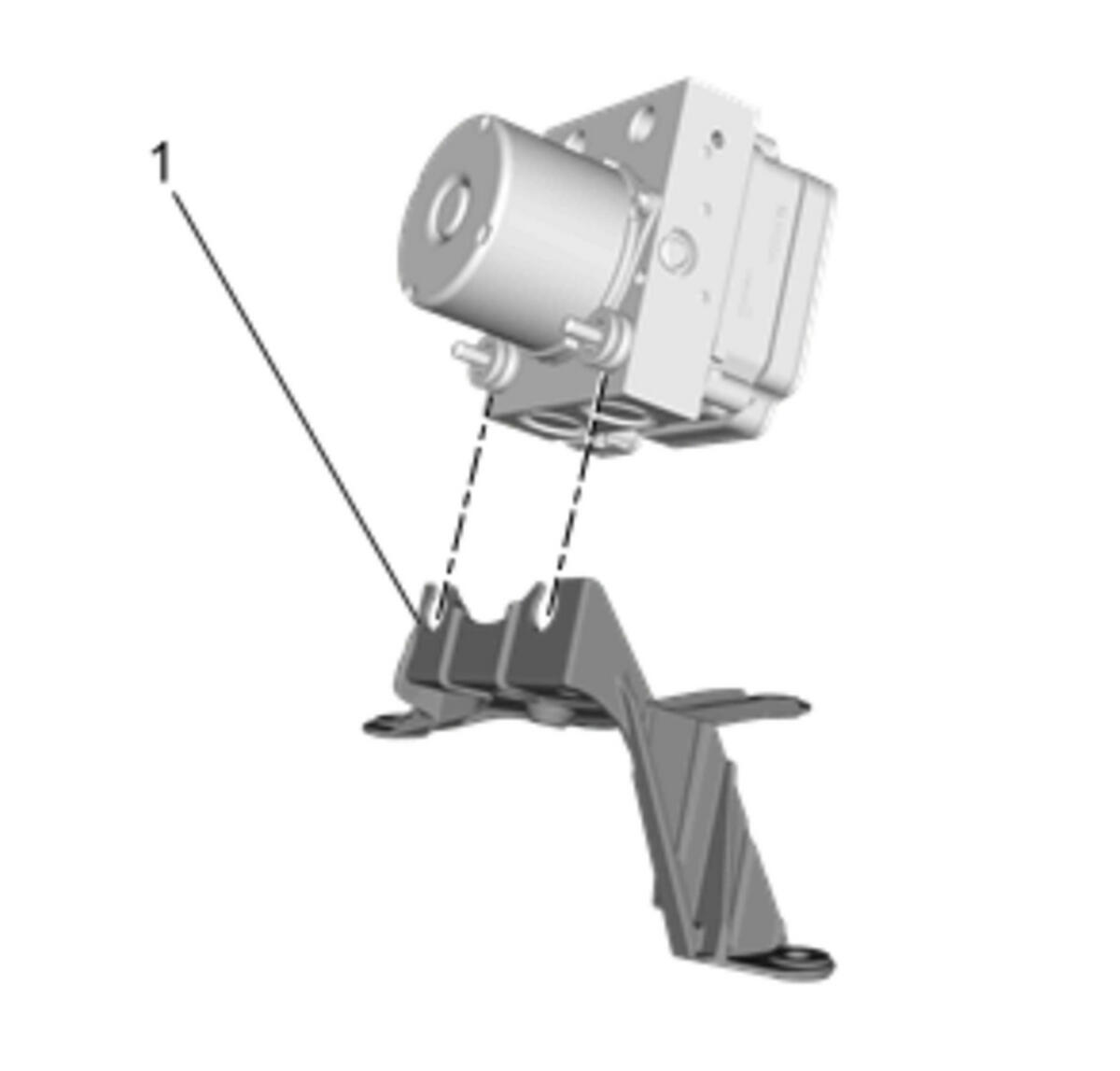

  1. GM4168107Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    A small amount of denatured alcohol may be used on the insulators to ease assembly.

    Brake Pressure Modulator Valve Bracket (1) - Install

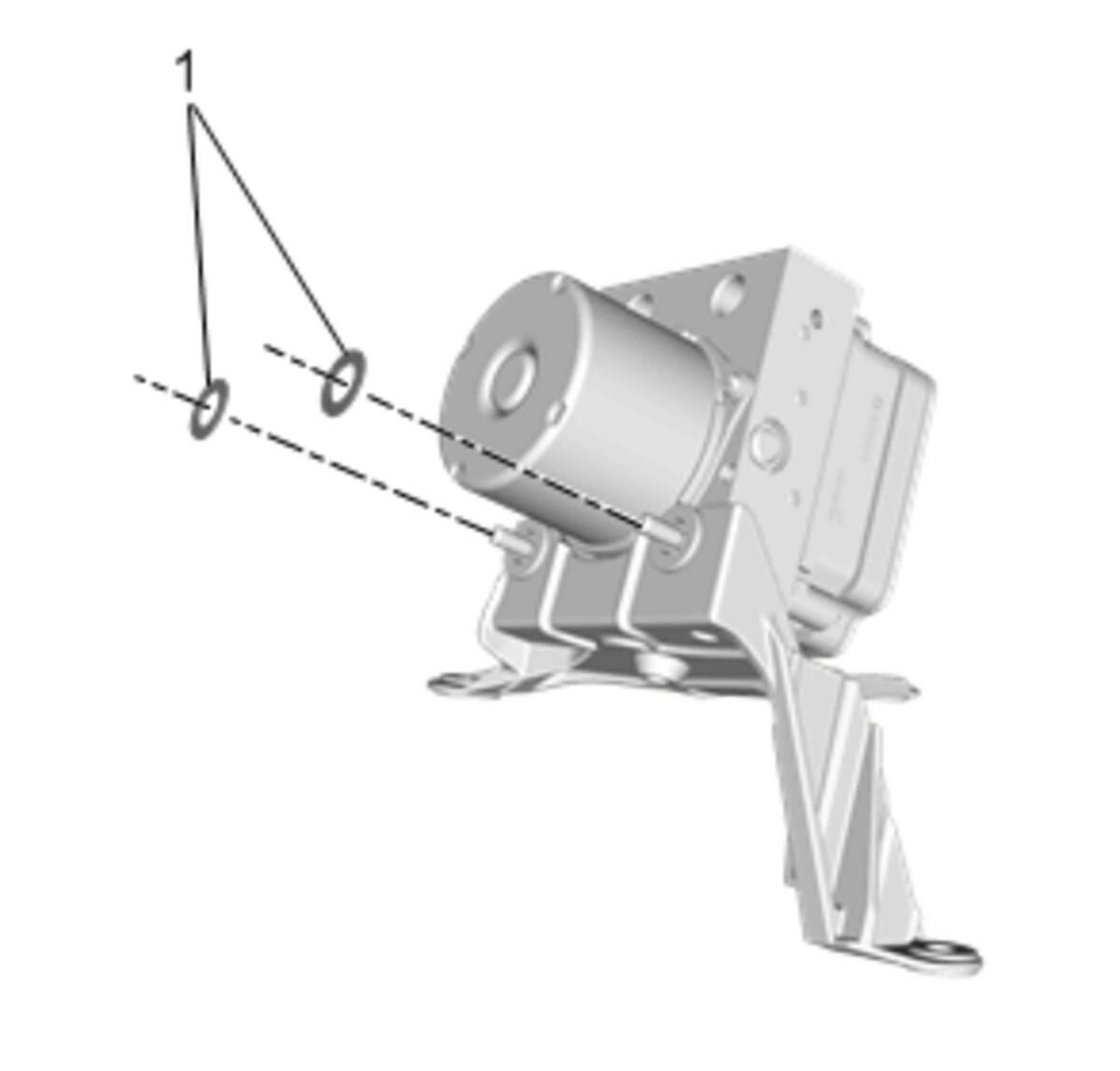

  2. GM4168104Courtesy of GENERAL MOTORS COMPANY

    Brake Pressure Modulator Valve Bracket Washer (1) - Install [2x]

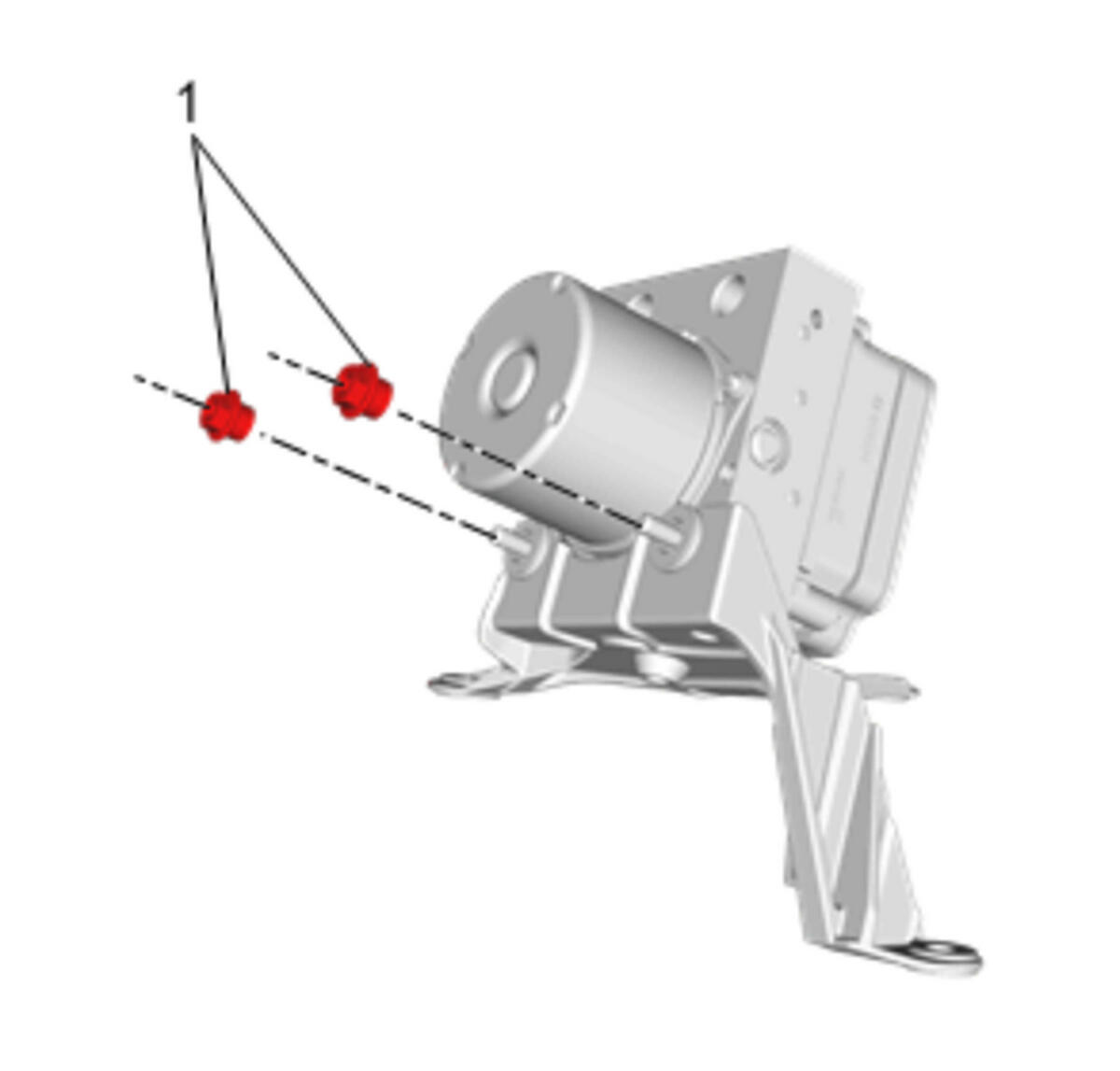

  3. GM4168097Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Fastener Caution

    Brake Pressure Modulator Valve Nut (1) - Install and tighten 3 N.m (27 lb in) [2x]

  4. Electronic Brake Control Module with Brake Pressure Modulator Valve Replacement  - Install
