Automatic Transmission Control Indicator Bezel Replacement

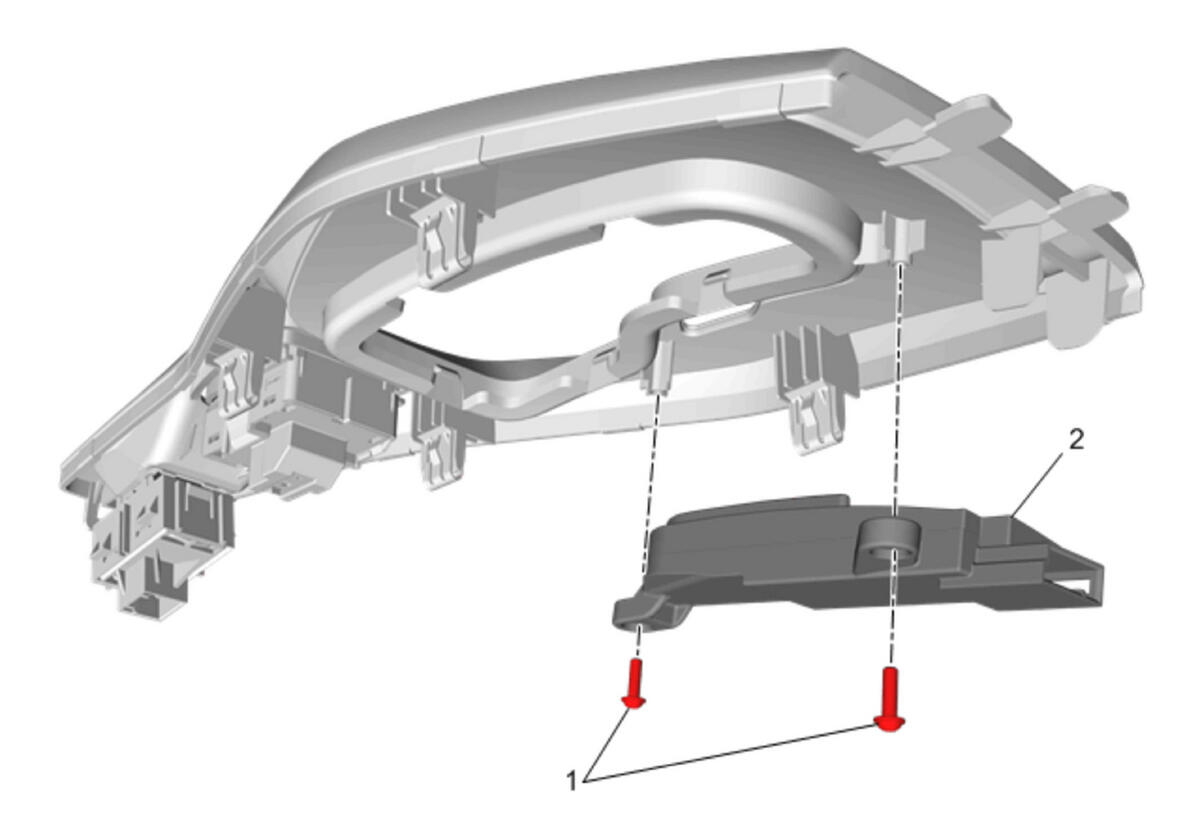

GM4195219Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Front Floor Console Trim Plate Replacement (Automatic) , or Front Floor Console Trim Plate Replacement (Manual)
1 Automatic Transmission Control Indicator Housing Bolt [2x]
CAUTION:

Refer to Fastener Caution .


Tighten
2 N.m (18 lb in)
2 Automatic Transmission Control Indicator Bezel
