Multiuse Module Bracket Replacement - Instrument Panel

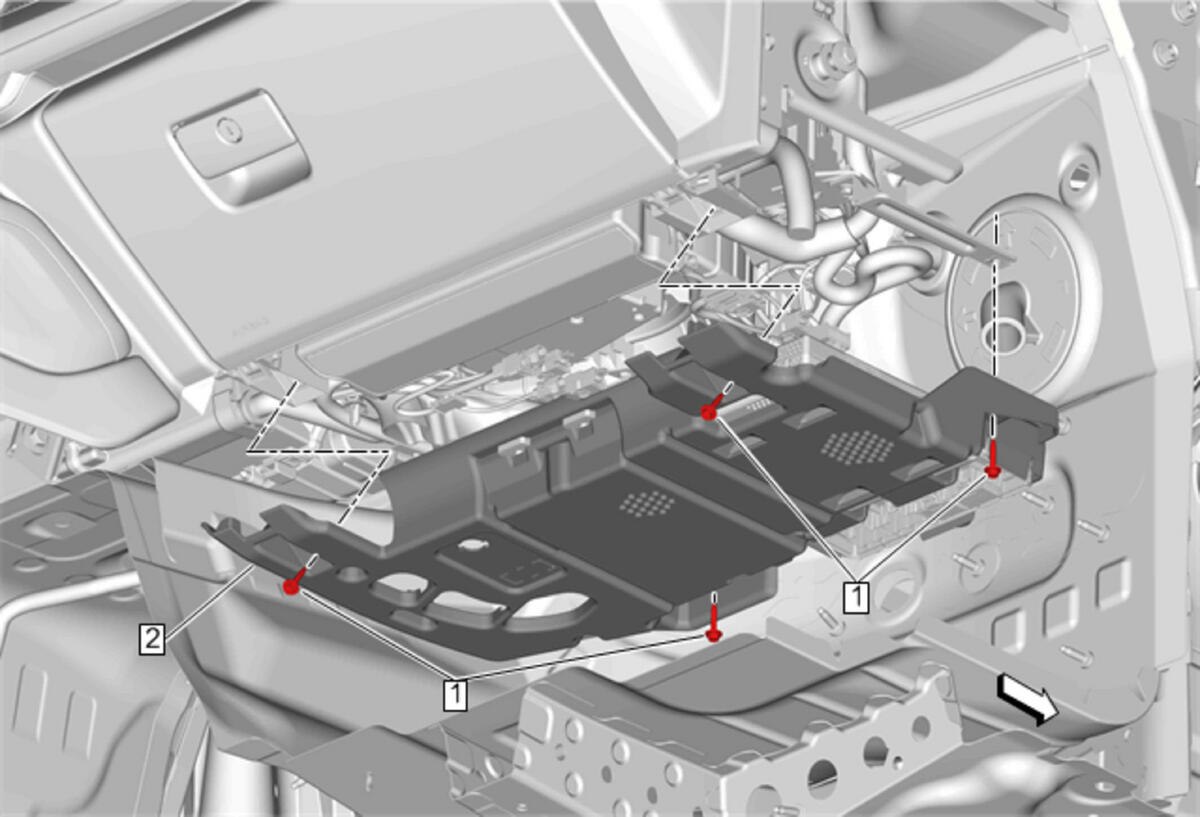

GM4180617Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Multiuse Module Upper Tray Bolt [4x]
CAUTION:

Refer to Fastener Caution .


Tighten
2.5 N.m (22 lb in)
2 Multiuse Module Bracket

Procedure

  1. Disconnect the electrical connectors.
  2. Transfer components as necessary.
