Fuel Tank Components

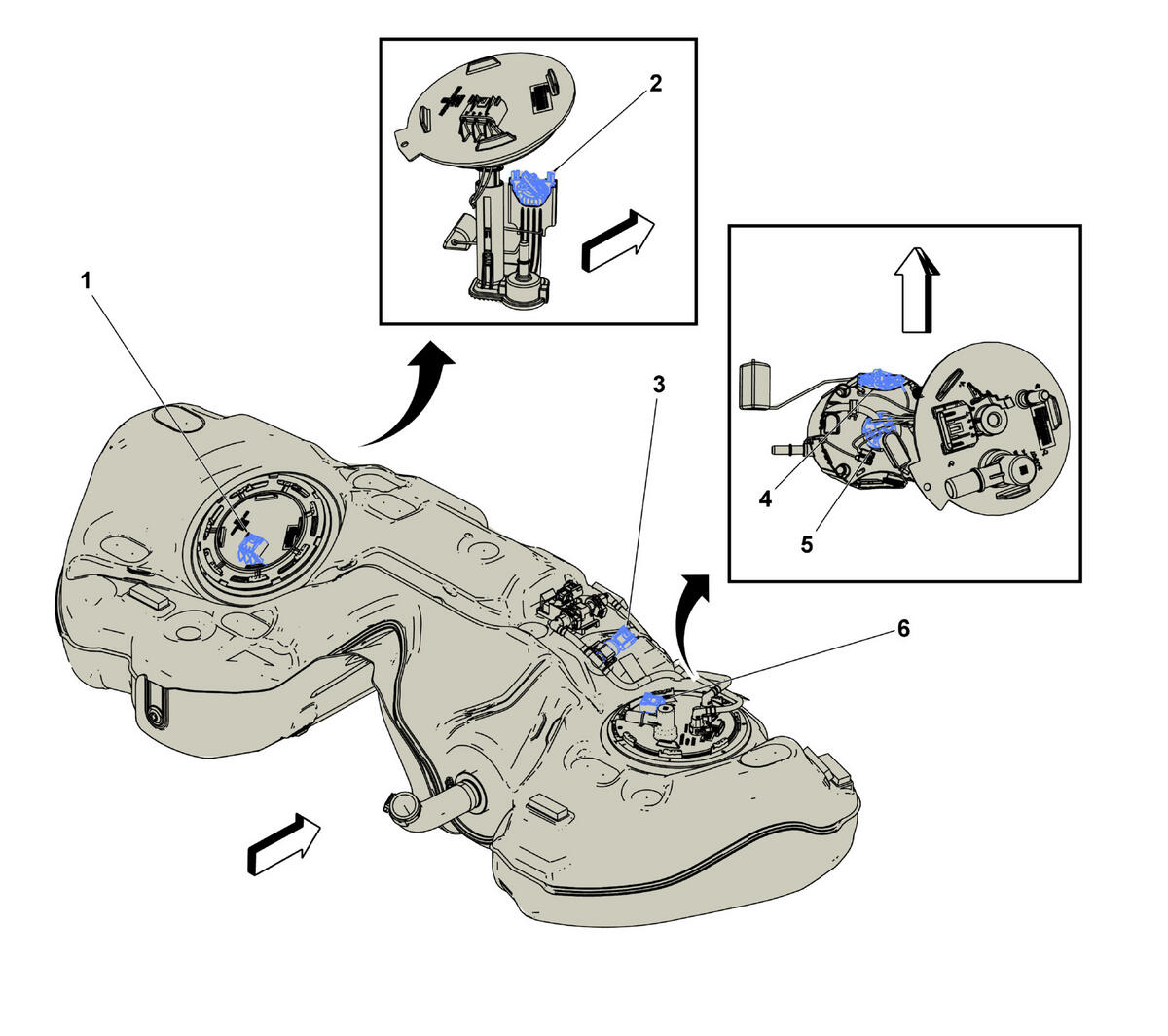

GM4910983Courtesy of GENERAL MOTORS COMPANY
Fuel Tank Components

Component Name Callout
B187 Fuel Level Sensor Assembly B187 Fuel Level Sensor Assembly 1
B46B Fuel Level Sensor - Secondary 2
B47 Fuel Pressure Sensor B47 Fuel Pressure Sensor 3
B46A Fuel Level Sensor - Primary 4
G12 Fuel Pump 5
A7 Fuel Pump and Level Sensor Assembly A7 Fuel Pump and Level Sensor Assembly 6
