Radio Antenna Module Replacement

Courtesy of GENERAL MOTORS COMPANY

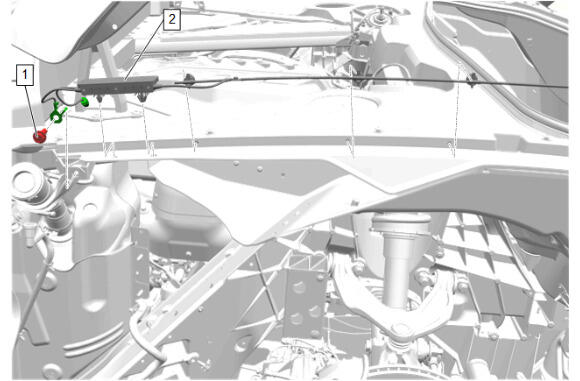

Callout	Component Name
Preliminary Procedure Quarter Outer Panel Replacement - Left Side
1	Fuel Tank Filler Pipe Ground Bolt [2x] Tighten 22 N.m (16 lb ft)
2	Radio Antenna Module Procedure Disconnect the electrical connector. Release the retaining tabs.

Callout

Component Name

Fuel Tank Filler Pipe Ground Bolt [2x]
Tighten
22 N.m (16 lb ft)

Radio Antenna Module

Procedure
