Preliminary Procedures
- Front Compartment Rear Access Cover Replacement
- Place a clean suitable rag under the windshield washer solvent container to absorb the windshield washer solvent when the level sensor and seal are removed.
|

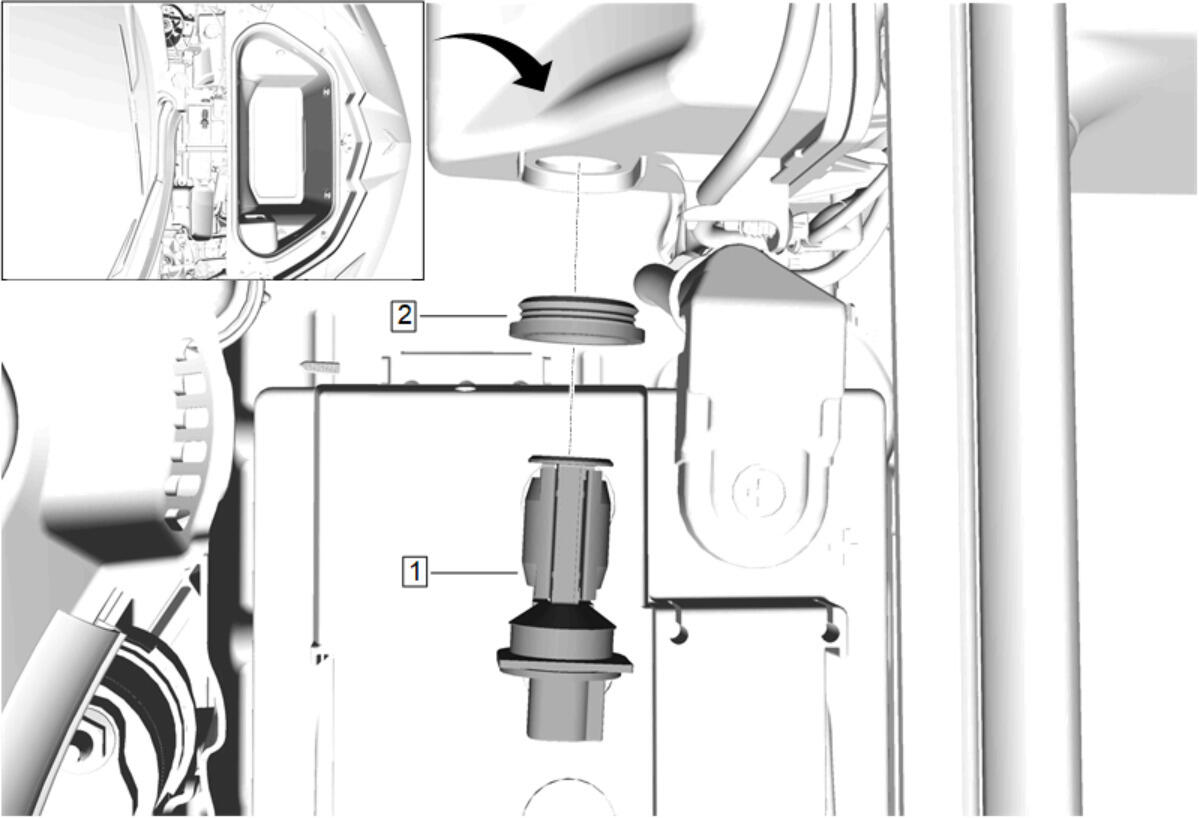

| 1 |
Windshield Washer Solvent Container Level Sensor Procedure
- Disconnect the electrical connector.
- Using two flat-bladed tools, place the blades under each side of the windshield washer solvent container level sensor.
- Twist the two flat-bladed tools in opposite directions to lift and disengage the windshield washer solvent container level sensor from the windshield washer solvent container and grommet.
|
| 2 |
Windshield Washer Solvent Container Level Sensor Grommet Procedure
- Carefully squeeze the grommet while using a flat-bladed tool to pry upward under the edge of the grommet.
- When installing the grommet, use full strength windshield washer fluid as a lubricant on the grommet.
- Push the grommet into the windshield washer solvent container until fully seated.
|
