Removal Procedure

  1. Raise and support the vehicle. Lifting and Jacking the Vehicle
  2. Front Compartment Insulator - Remove - Front Compartment Insulator Replacement
  3. Remove the front tire and wheel assembly. Tire and Wheel Removal and Installation
  4. { If equipped } Front Brake Rotor Cooling Duct Deflector - Remove - Front Brake Rotor Cooling Duct Deflector Replacement (J55)

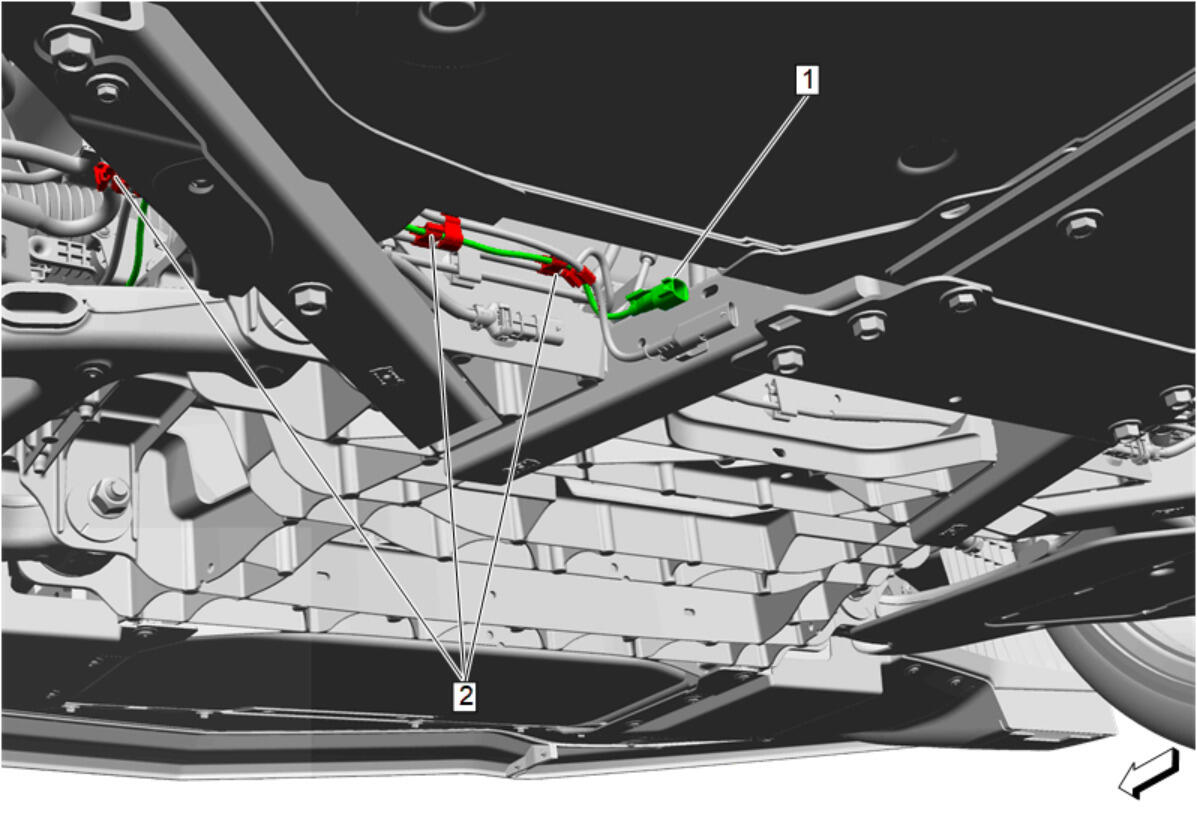

  5. GM5378266Courtesy of GENERAL MOTORS COMPANY

    Wheel Speed Sensor Electrical Connector (1) - Disconnect

  6. Retainer Clip (2) - Release [3x]

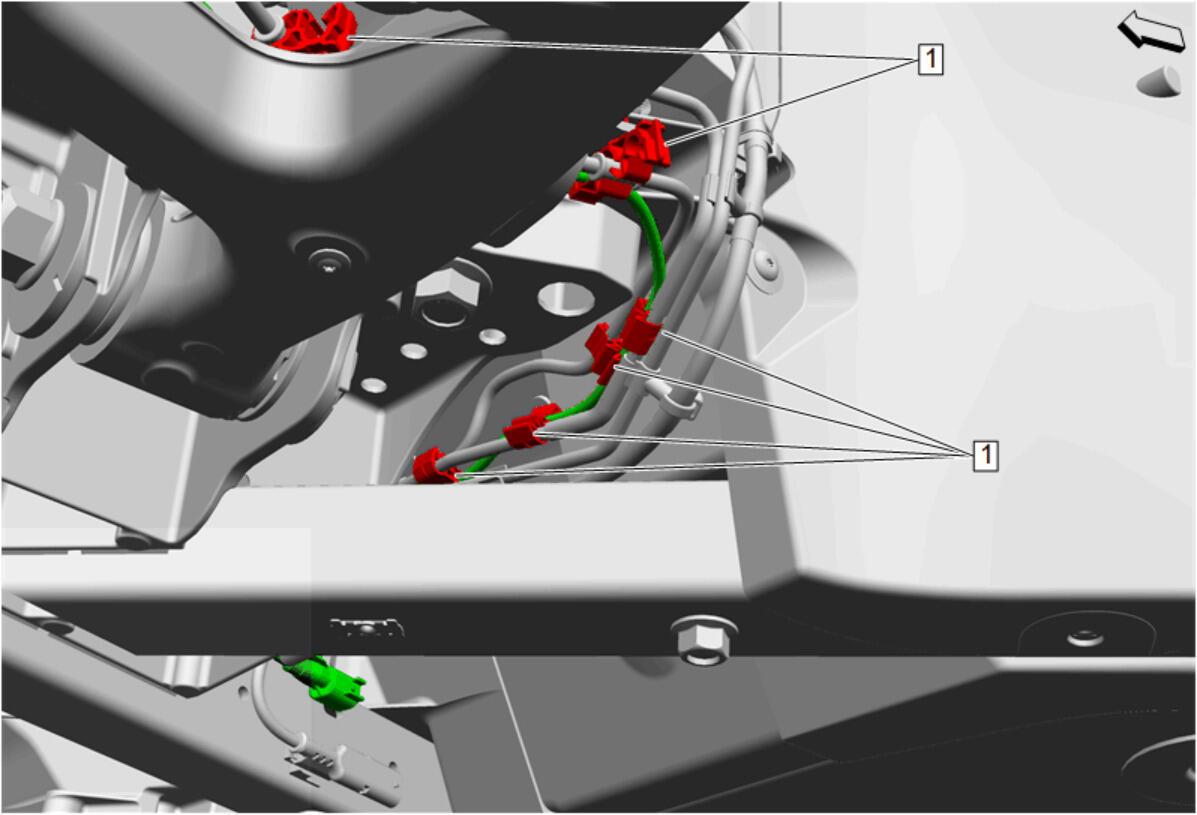

  7. GM5378286Courtesy of GENERAL MOTORS COMPANY

    Retainer Clip (1) - Release [6x]

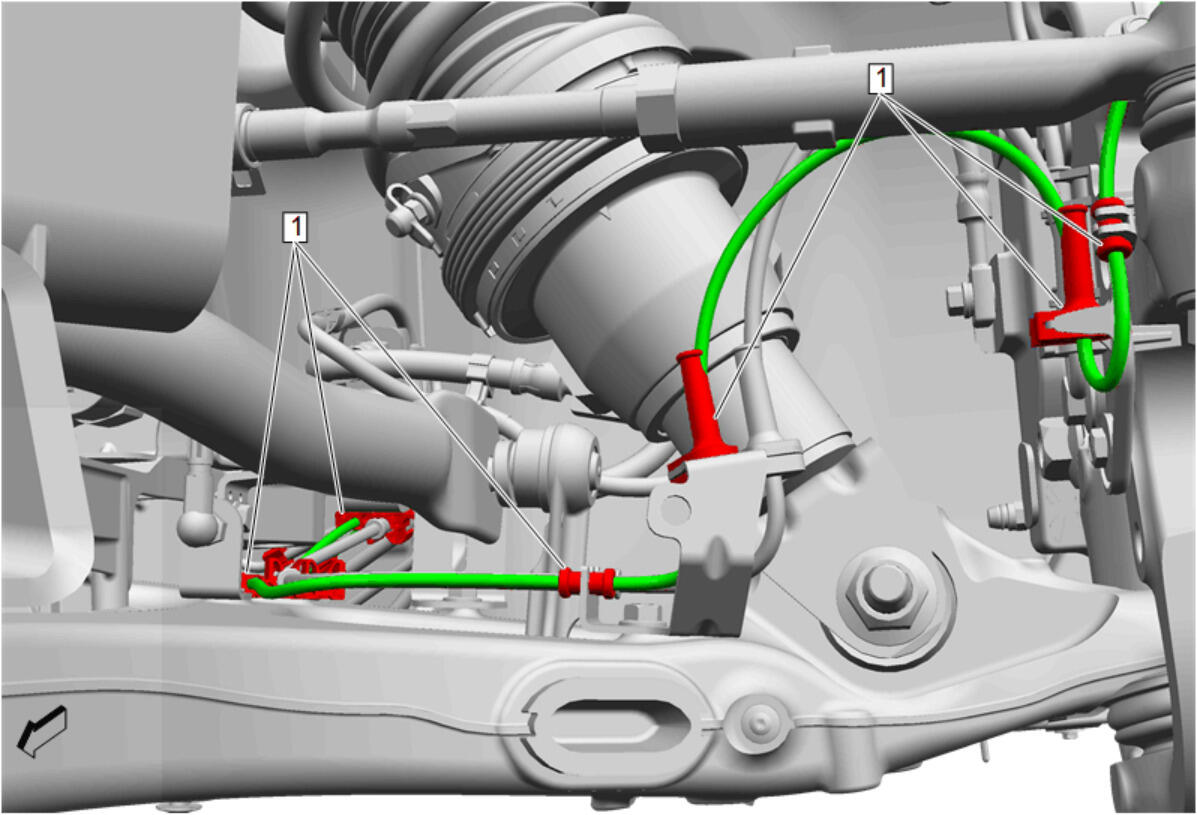

  8. GM5378300Courtesy of GENERAL MOTORS COMPANY

    Retainer (1) - Release [6x]

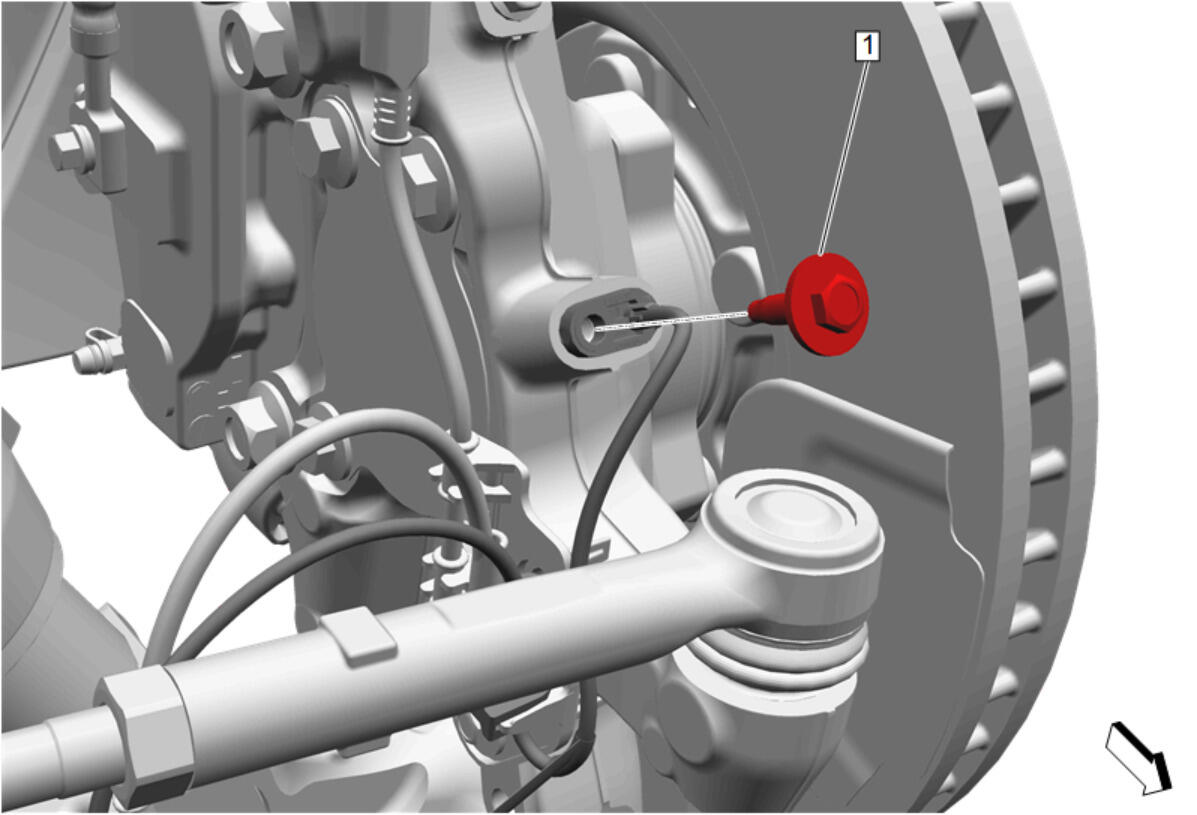

  9. GM5378305Courtesy of GENERAL MOTORS COMPANY

    Wheel Speed Sensor Bolt (1) - Remove

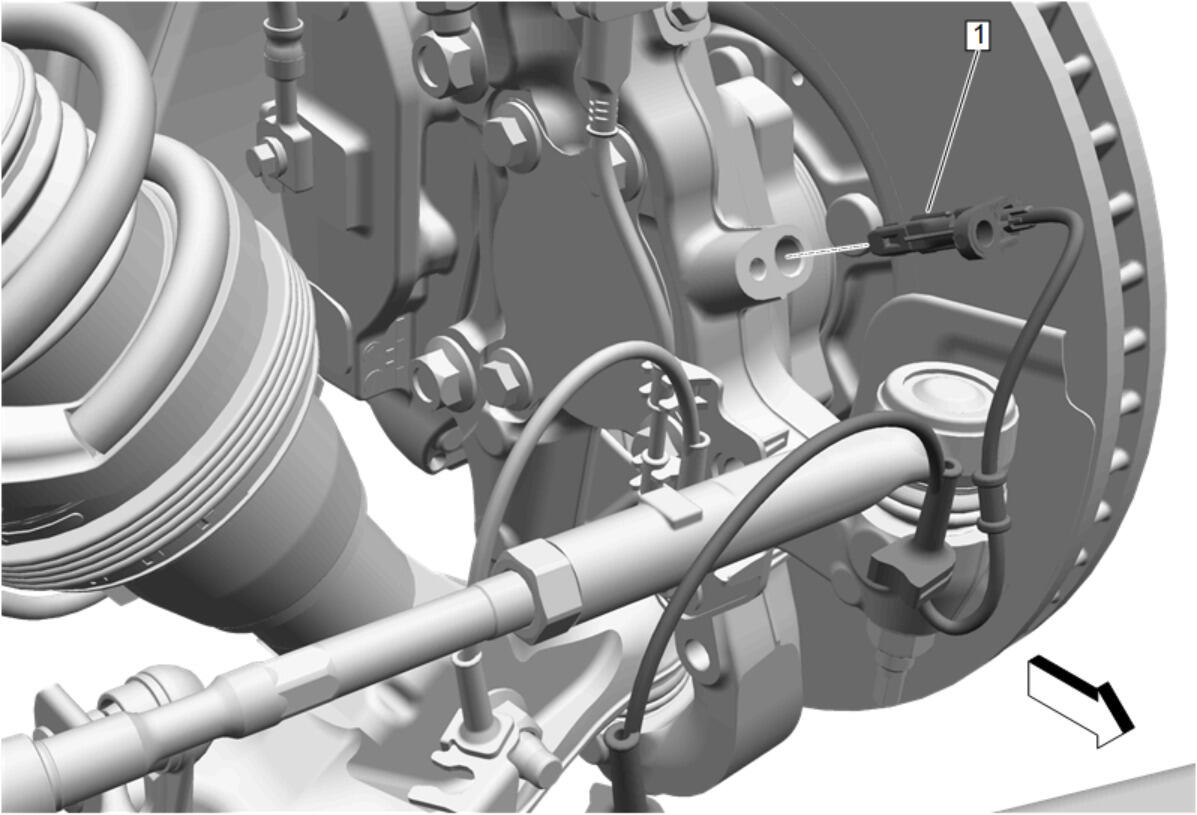

  10. GM5378306Courtesy of GENERAL MOTORS COMPANY

    Front Wheel Speed Sensor (1) - Remove
