Camshaft Position Sensor Replacement

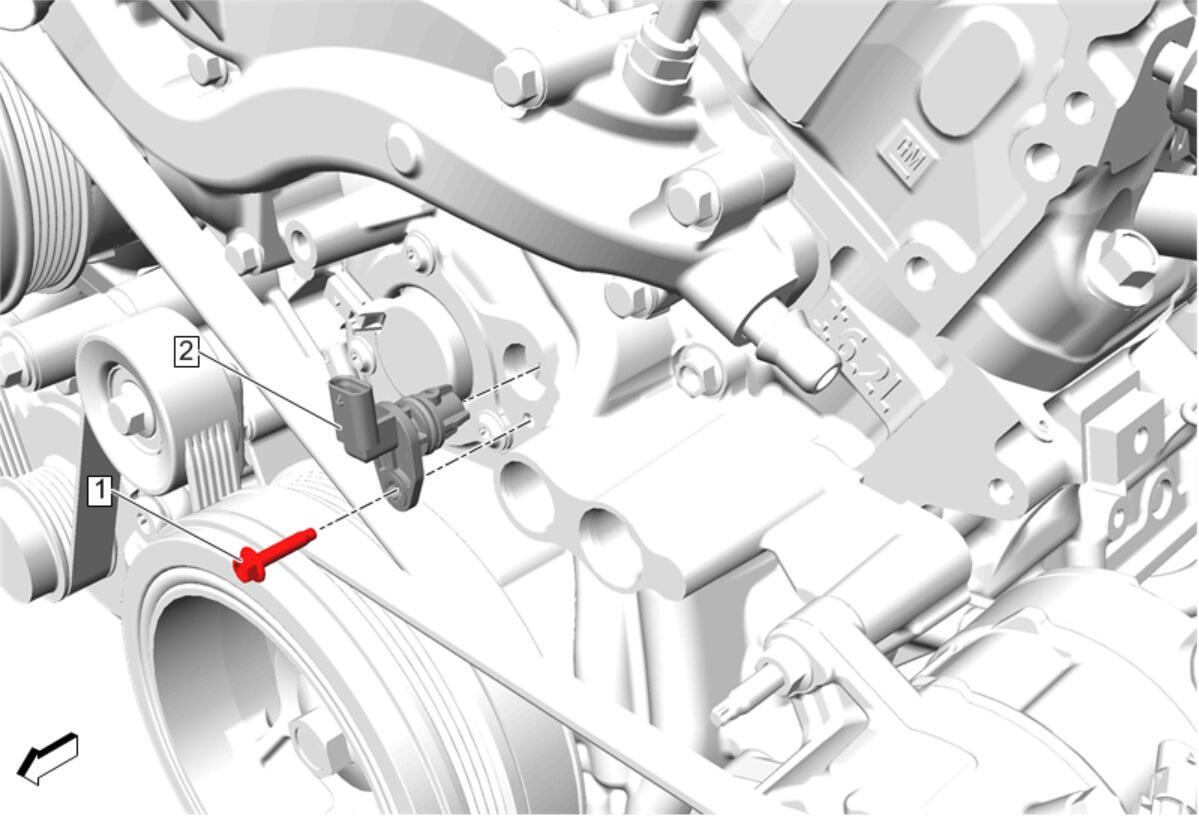

GM5367867Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Engine Oil Tank Replacement
1 Camshaft Position Sensor Bracket Bolt
CAUTION:

Refer to Fastener Caution .


Tighten
8.5 N.m (75 lb in)
2 Camshaft Position Sensor
Procedure
Disconnect the electrical connector.
