Fuel Tank Shield Replacement

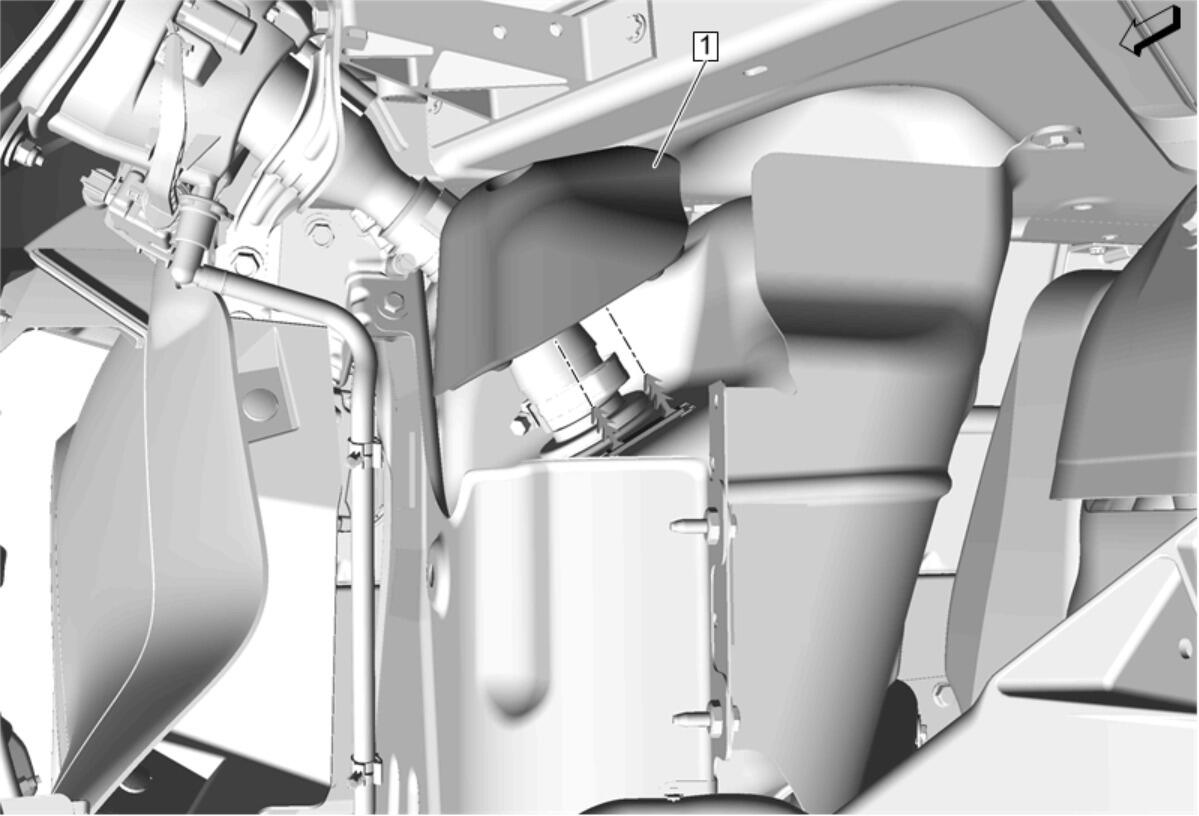

GM5373084Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
WARNING:

Refer to Diesel/Gasoline Vapors Warning .

WARNING:

Refer to Safety Glasses Warning .

Preliminary Procedure Engine Cooling Fan Bracket Replacement - Left Side (without V09)
1 Fuel Tank Shield
