Turn Signal Switch Bracket Replacement
Courtesy of GENERAL MOTORS COMPANY
Callout
Component Name
Preliminary Procedures
Steering Wheel Airbag Coil Replacement
Turn Signal Switch Replacement
Windshield Wiper and Windshield Washer Switch Replacement

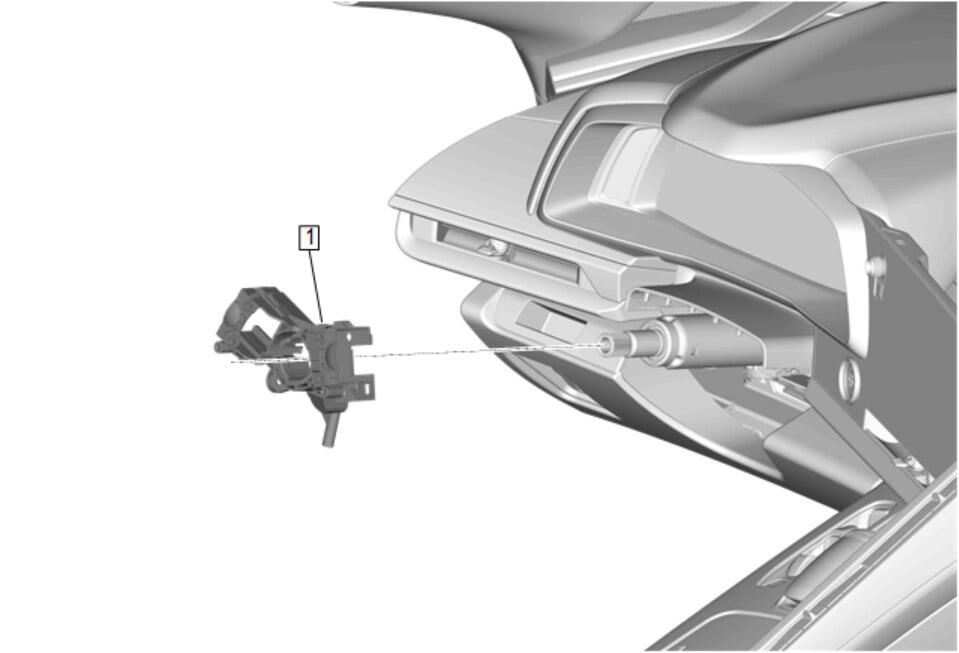

1
Turn Signal Switch Bracket
Procedure
Release the 2 harness retainers from the left and right side of the turn signal switch bracket.
Release the retaining tabs and remove the turn signal switch bracket from the steering column.
