Engine Oil Temperature Sensor Replacement

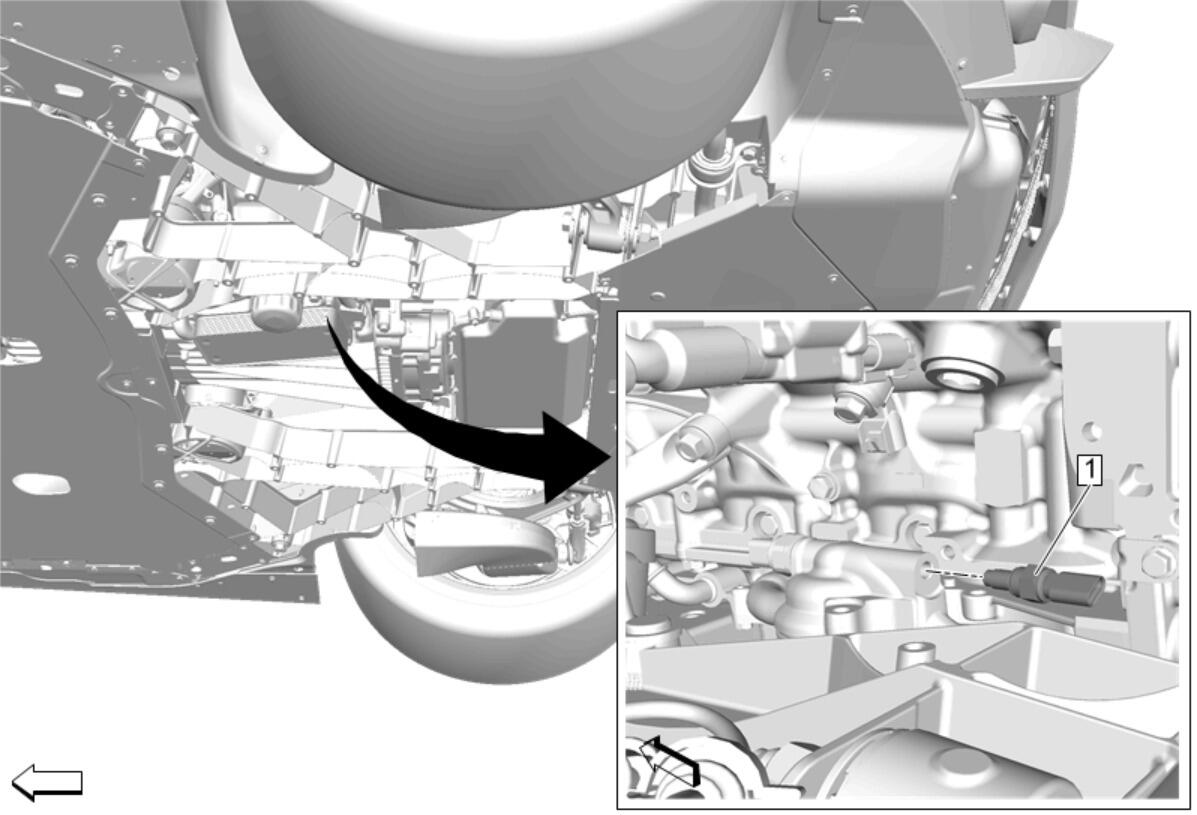

GM5366103Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Rear Cradle Shear Plate Replacement
1 Engine Oil Temperature Sensor
CAUTION:

Refer to Component Fastener Tightening Caution .


Procedure
Disconnect the electrical connector.
Tighten
20 N.m (15 lb ft)
