Electronic Traction Control Switch Replacement

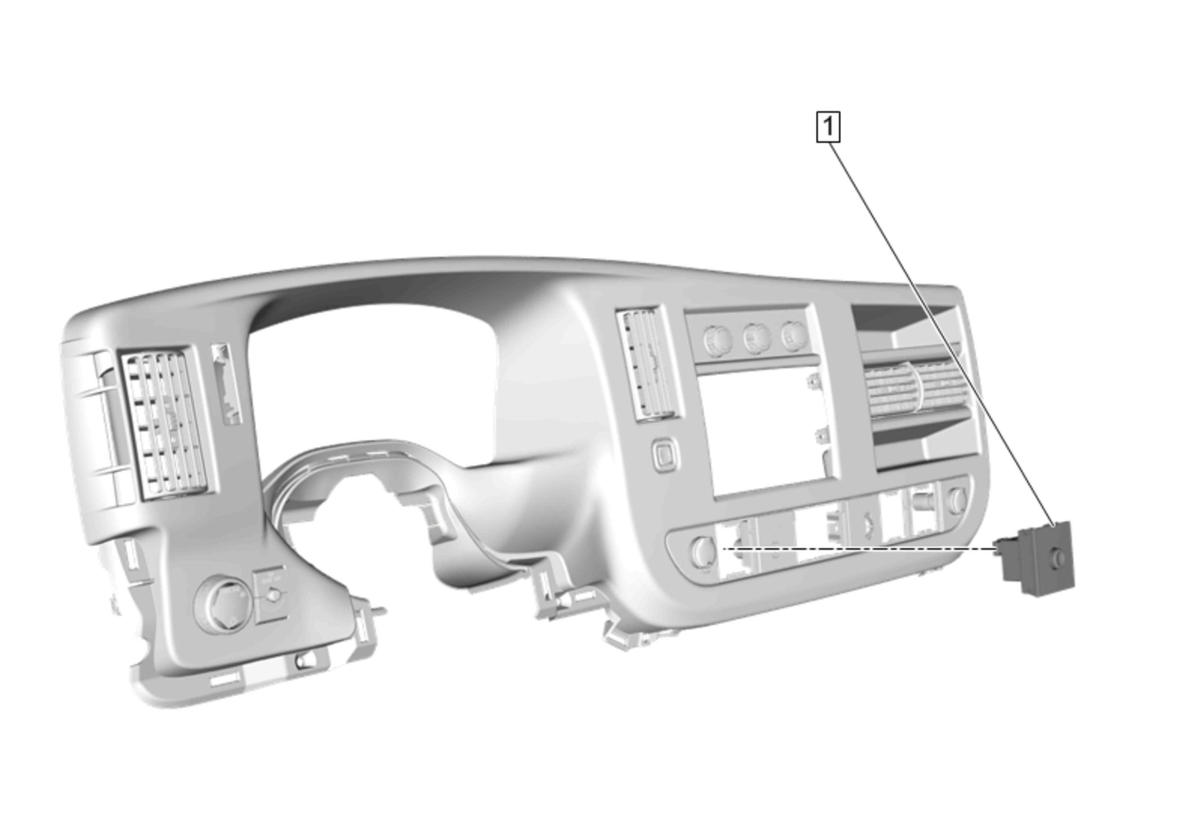

GM4828612Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Instrument Panel Cluster Trim Plate Replacement
1 Electronic Traction Control Switch
Procedure
Release the retaining tabs on the back of the electronic traction control switch to remove the switch from the instrument panel cluster trim plate bezel.
