Liftgate Release Switch Replacement

Courtesy of GENERAL MOTORS COMPANY

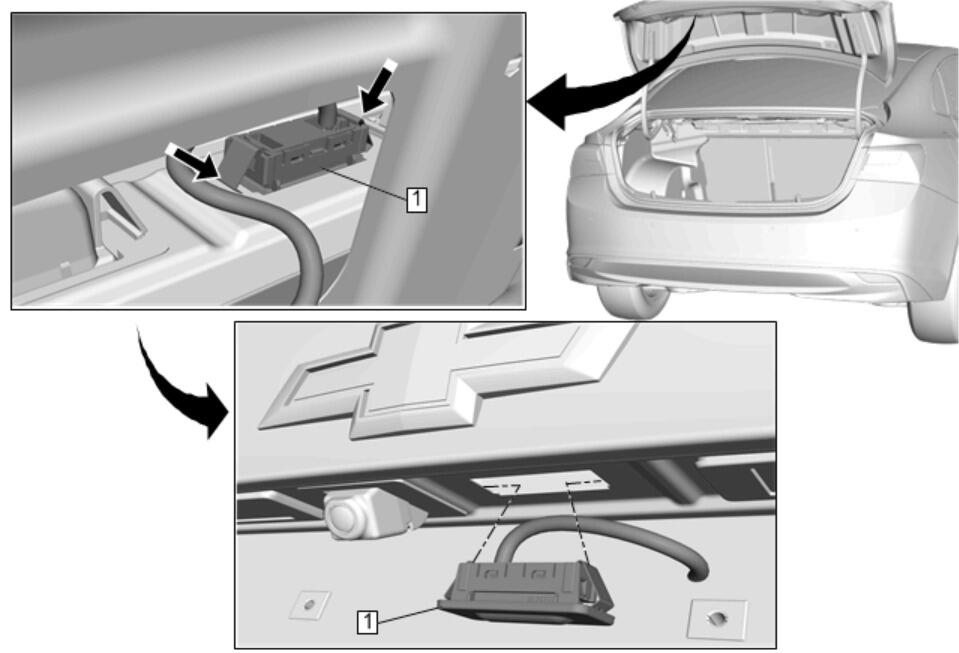

Callout	Component Name
Preliminary Procedure Rear Compartment Lid Inner Panel Trim Replacement
1	Liftgate Release Switch Procedure Depress the retainers on the back side of the switch and push the switch out from the liftgate. Disconnect the electrical connector.

Callout

Component Name

Liftgate Release Switch

Procedure

Depress the retainers on the back side of the switch and push the switch out from the liftgate.
Disconnect the electrical connector.
