Mode Control Cable Kinks - Mode Control Inoperative C60 (PIC6462A)

Publication date: 2023-06-16
Reference number: PIC6462A
Supersedes refnos: PIC6462

MODE CONTROL CABLE KINKS - MODE CONTROL INOPERATIVE C60

TECHNICAL SERVICE BULLETIN

Reference Number(s): PIC6462A, Date of Issue: Jun 16, 2023

Brand:	Model:	Model Year:		VIN:		Engine:	Transmission:
Brand:	Model:	from	to	from	to	Engine:	Transmission:
Chevrolet	Spark	2016	2022	All		All	All

Involved Region or Country	North America
Additional RPOs	C60 - Manual HVAC

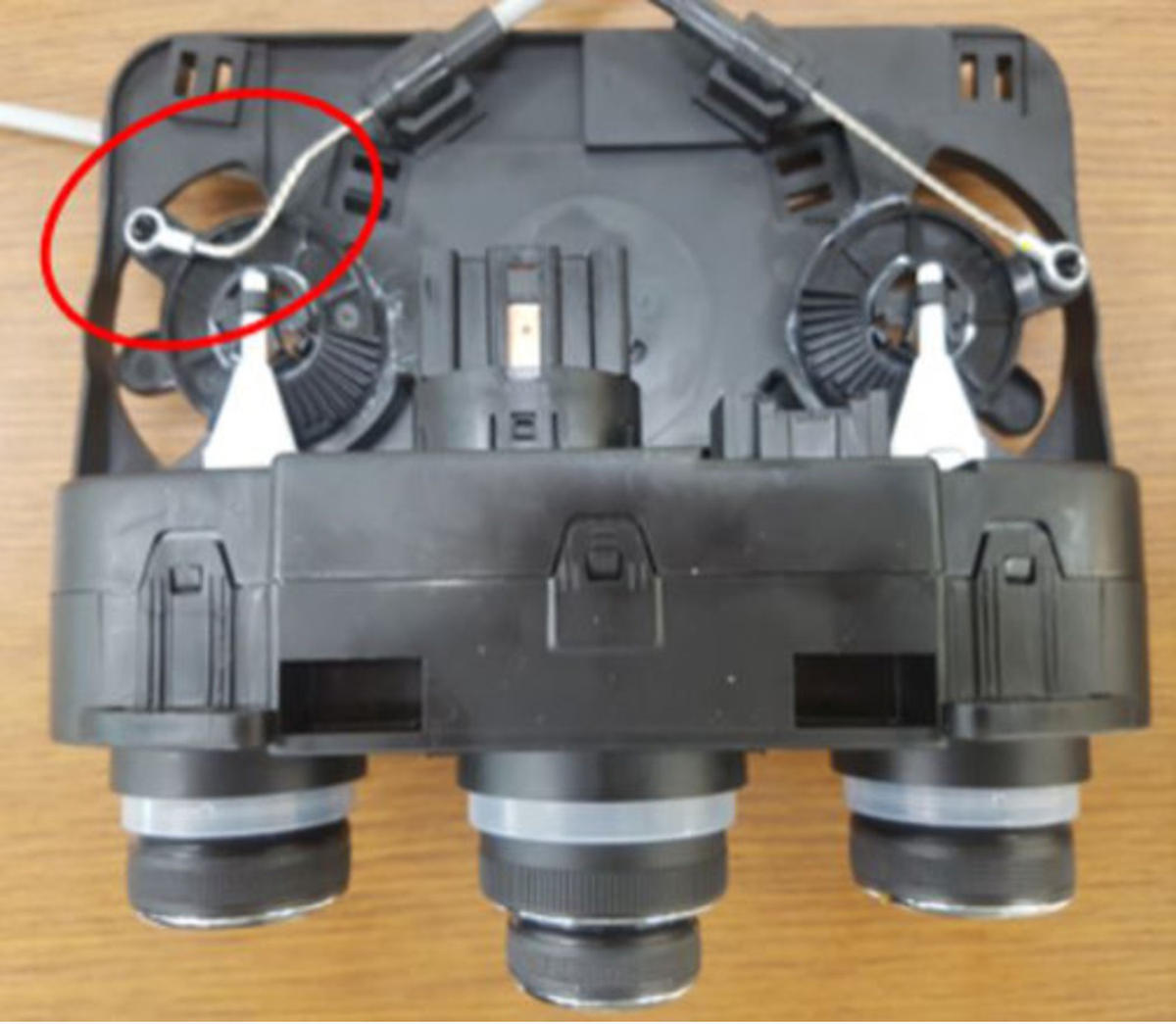

Condition	Some customer may comment that they are not able to change the HVAC modes or there is no air flow from the defroster vents. Upon inspection, the tech may find that the mode control cable is bent. Courtesy of GENERAL MOTORS COMPANYGENERAL MOTORS COMPANYGENERAL MOTORS COMPANYGENERAL MOTORS COMPANYGENERAL MOTORS COMPANY Courtesy of GENERAL MOTORS COMPANYGENERAL MOTORS COMPANYGENERAL MOTORS COMPANYGENERAL MOTORS COMPANYGENERAL MOTORS COMPANY Courtesy of GENERAL MOTORS COMPANYGENERAL MOTORS COMPANYGENERAL MOTORS COMPANYGENERAL MOTORS COMPANYGENERAL MOTORS COMPANY Courtesy of GENERAL MOTORS COMPANYGENERAL MOTORS COMPANYGENERAL MOTORS COMPANYGENERAL MOTORS COMPANYGENERAL MOTORS COMPANY Courtesy of GENERAL MOTORS COMPANYGENERAL MOTORS COMPANYGENERAL MOTORS COMPANYGENERAL MOTORS COMPANYGENERAL MOTORS COMPANY
Cause	This condition may be due to a combination of increased resistance from debris in the mode valve link assembly and high air flow (fan speeds above the setting of 3) against mode doors from the blower motor.

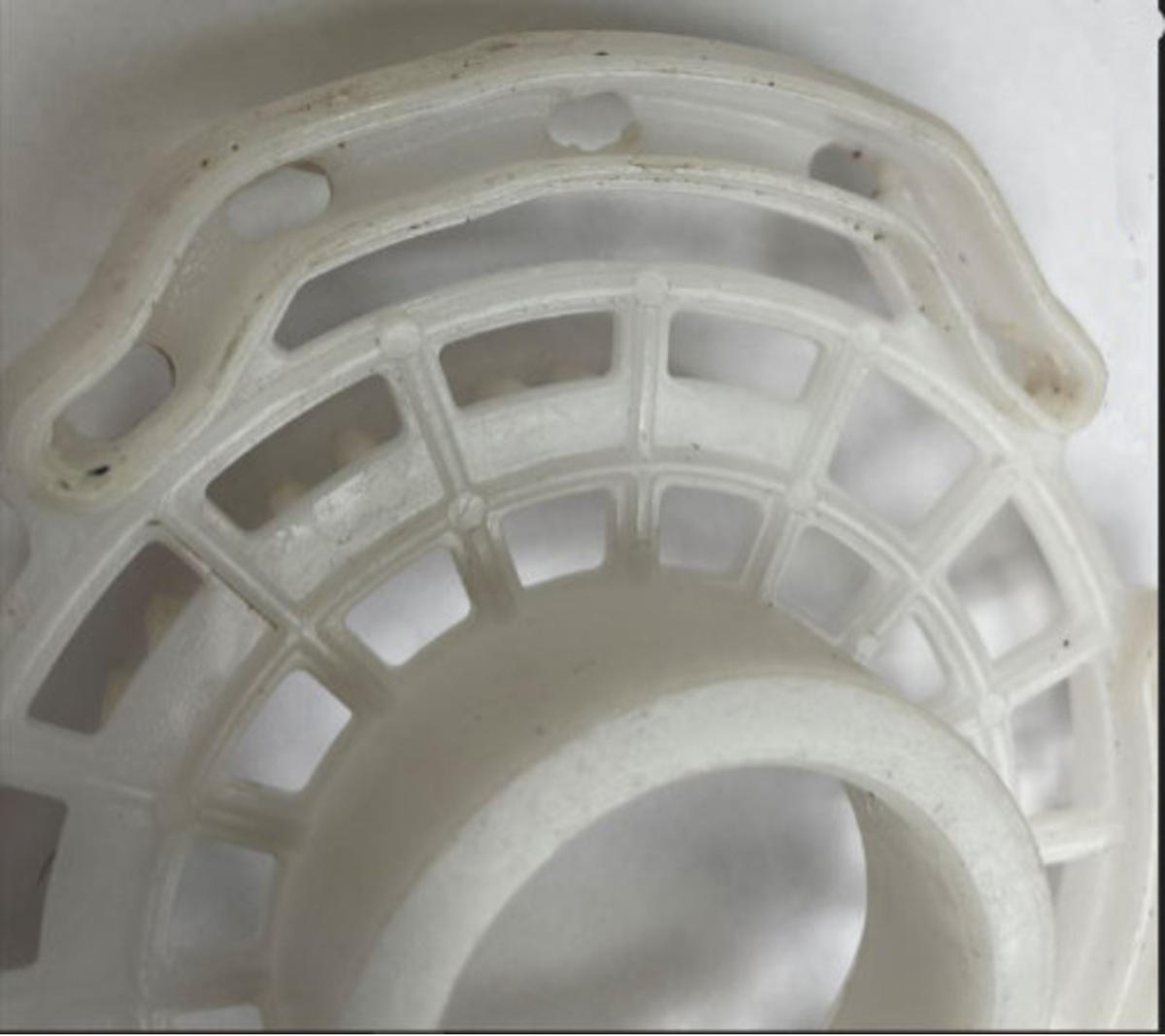

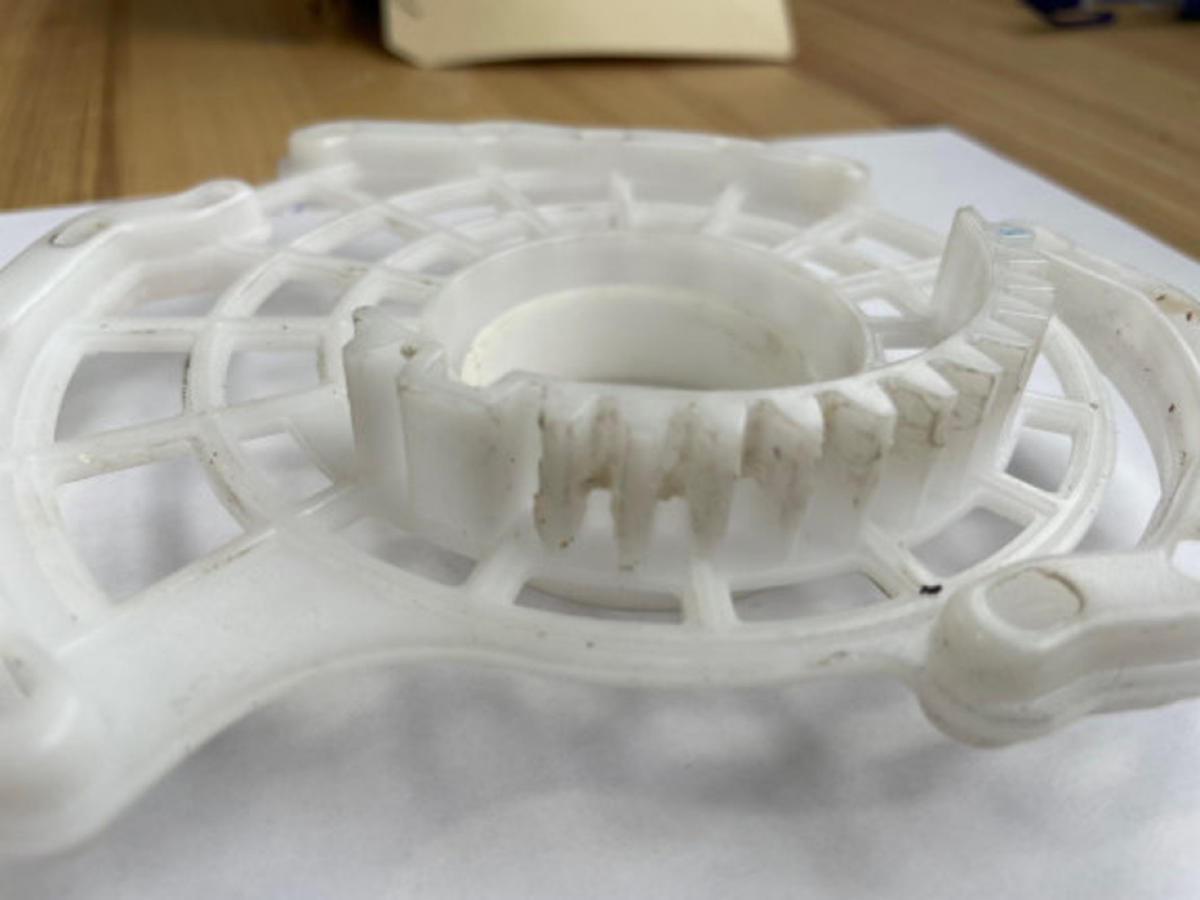

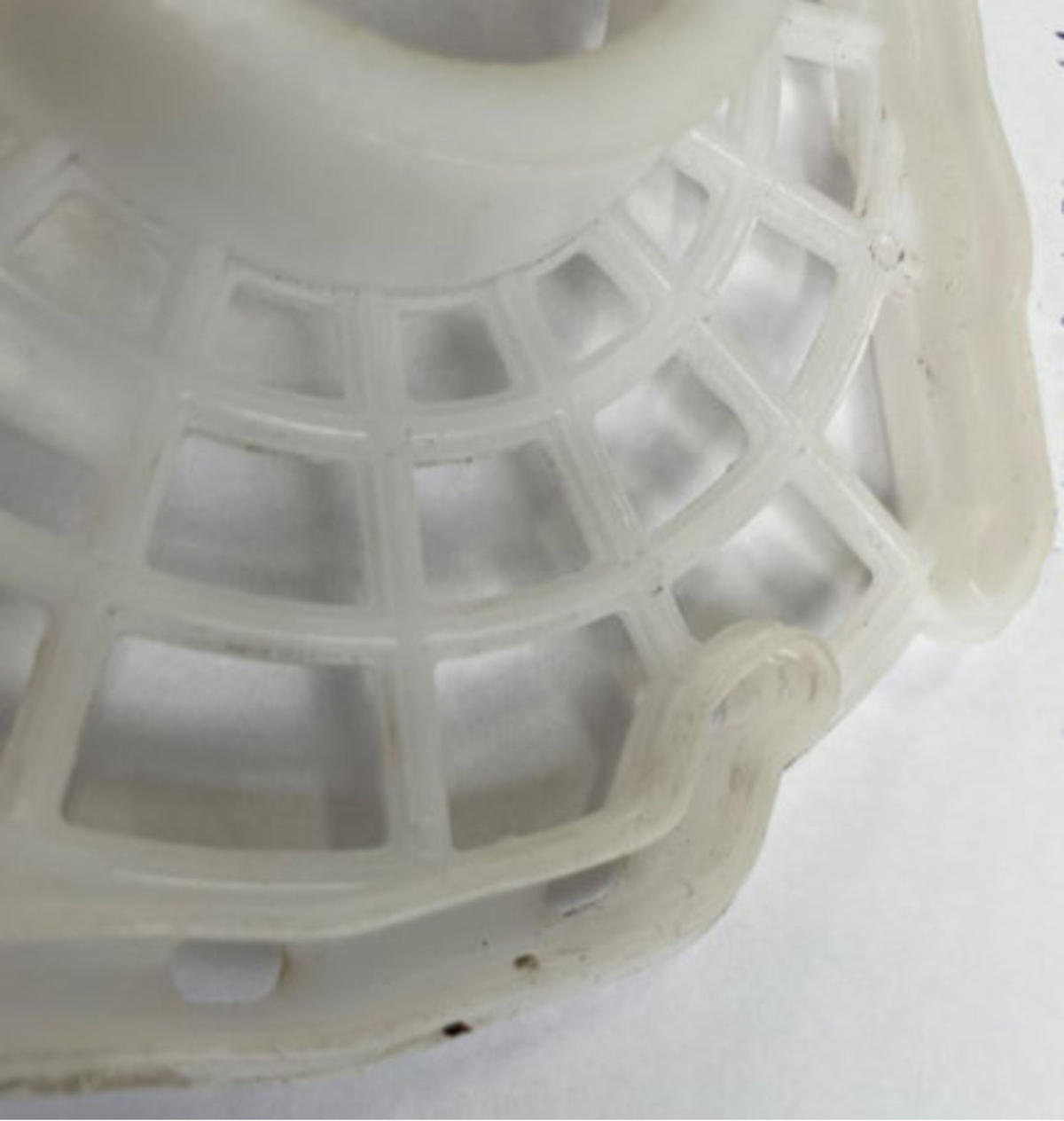

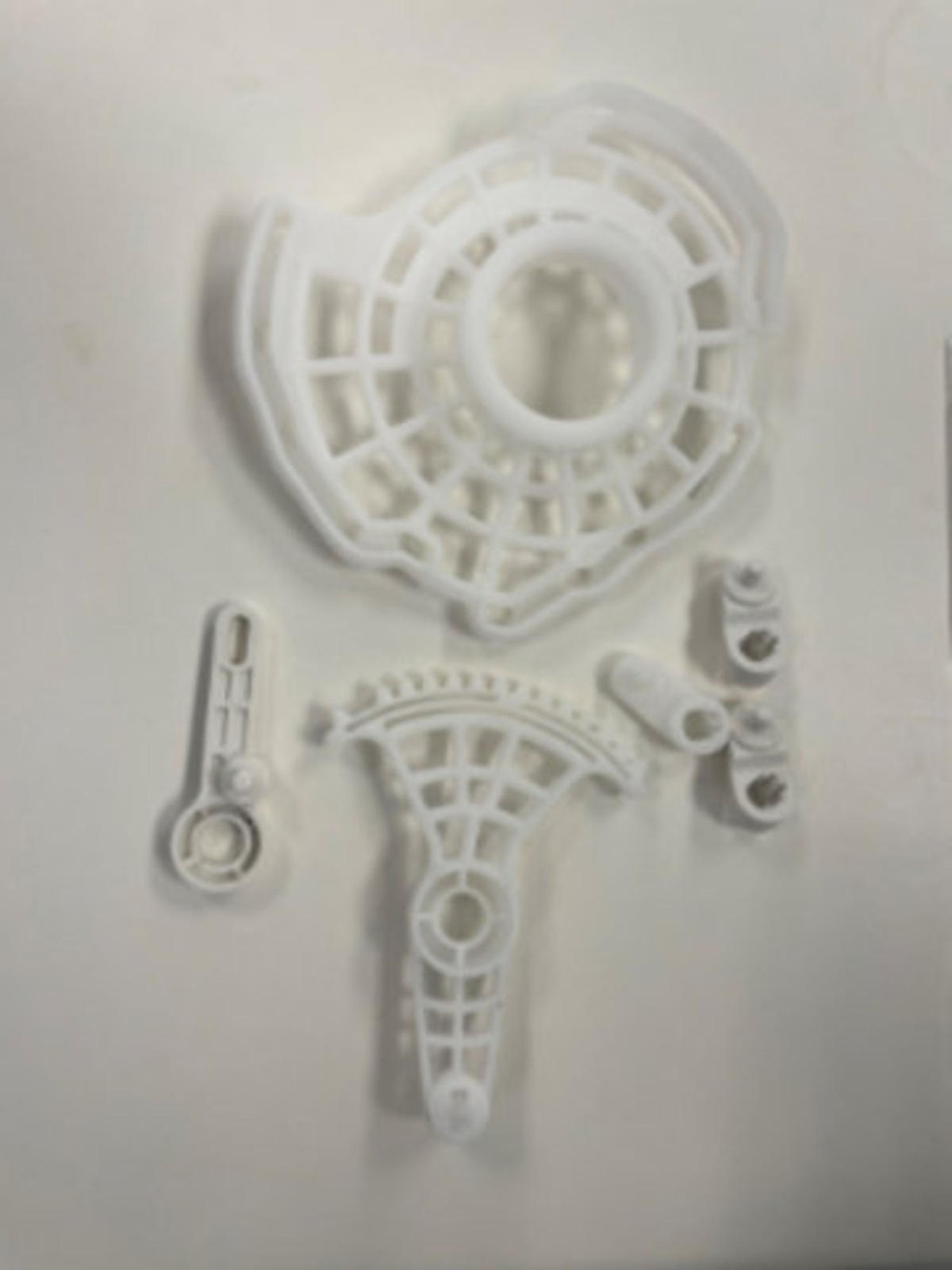

If the above conditions are found, the tech will need to inspect the mode valve link assembly for debris or damage.

If debris is found, clean the link assembly and re-install or replace as needed.

Then, replace the mode control cable

Description	Part Number	Qty
Mode Control Cable	95388253	1
Mode Valve Link	94513084	1

Version	1
Modified	6/20/2022 - Created. 6/16/2023 - Updated to add model years.
