Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

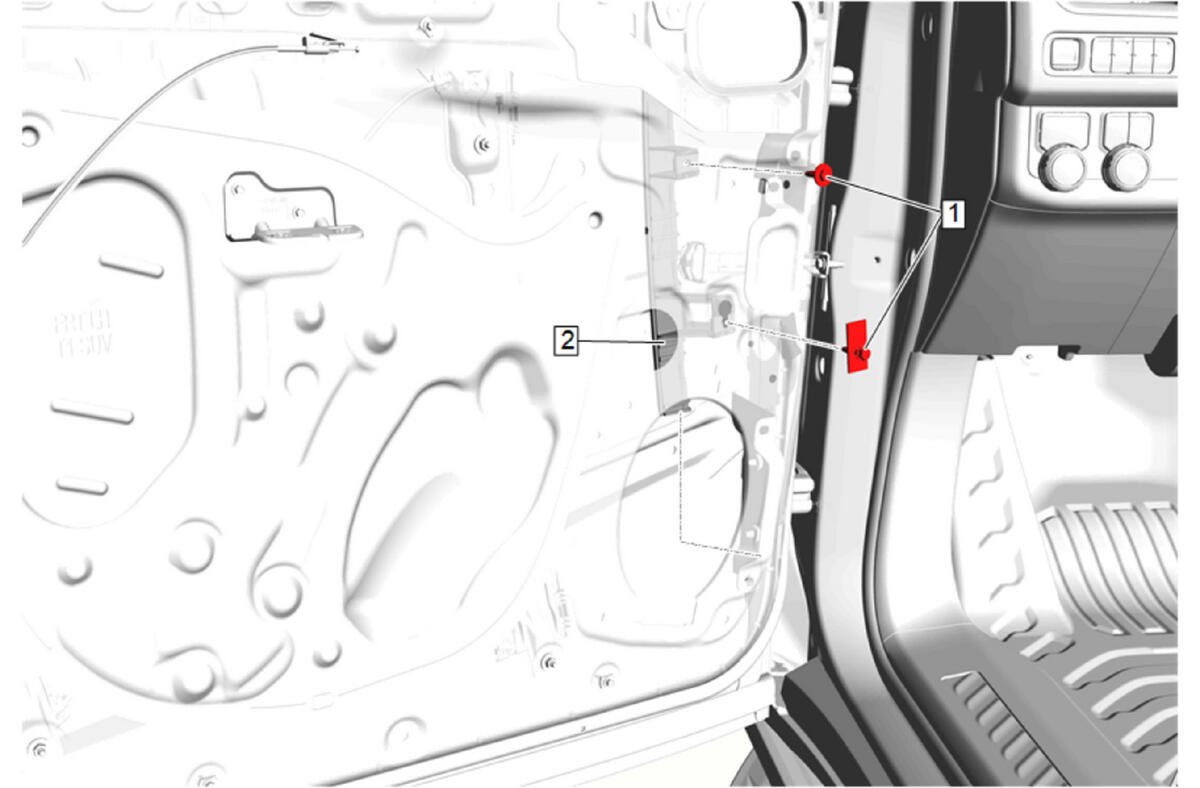

Front Side Door Window Channel Front Retainer(2) - Install

CAUTION:

Front Side Door Window Channel Front Retainer Bolt (1) - Install and tighten [2x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Connect the electrical connector.

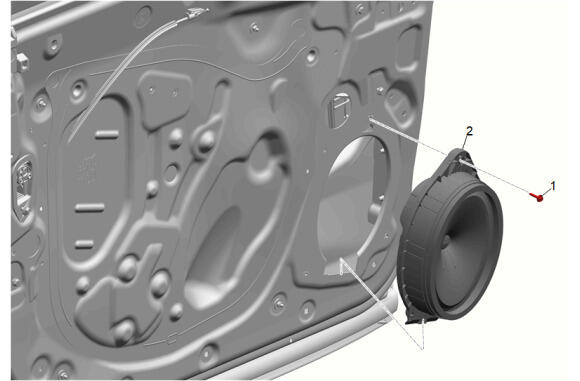

Radio Front Side Door Speaker(2) - Install
Radio Front Side Door Speaker Bolt(1) - Install and tighten - Fastener Specifications
Front Side Door Trim - Install - Front Side Door Trim Removal and Installation
Ensure the window system operates properly.
Enable the SIR System. SIR Disabling and Enabling
