Installation Procedure

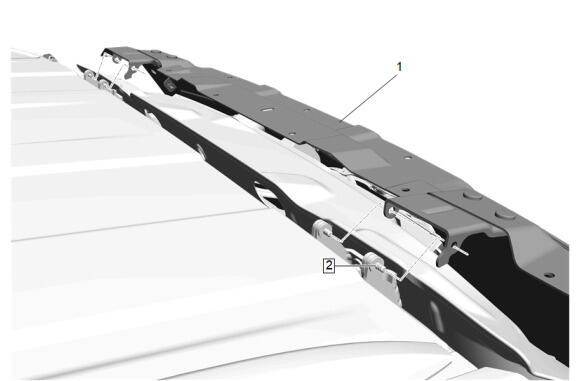

Rear Compartment Lift Window (1) - Install
With aid of assistance, lift and slid the rear compartment lift window (1) to the right and onto the hinge pins (2).

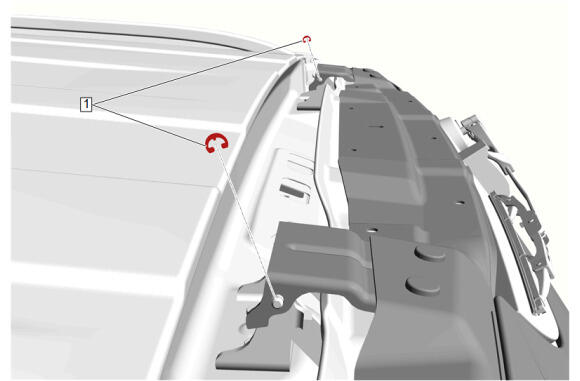

Install the liftgate hinge pin retainers (1).

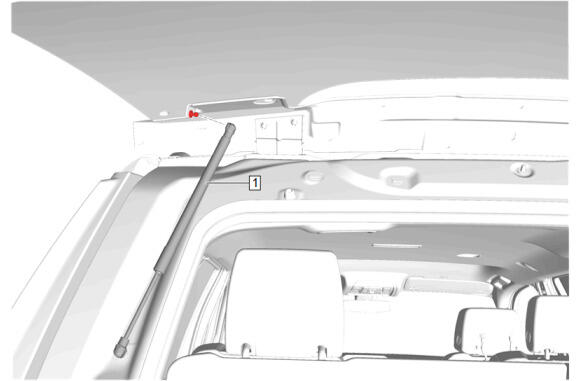

Install the rear compartment lift window strut (1) at window [2x].
Rear Window Defroster Electrical Connector (2) - Connect [2x]
- Rear Window Defroster Electrical Connector Trim Cover (1) - Install [2x]

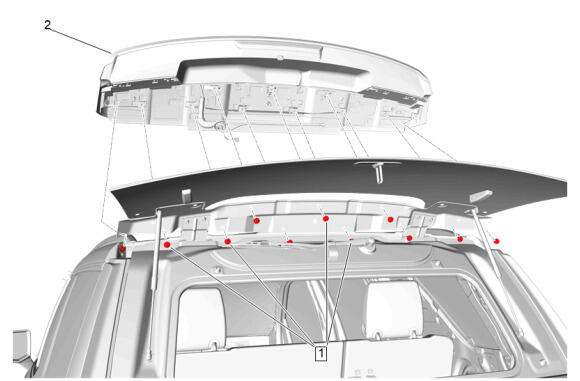

Rear End Spoiler(2) - Install
- Rear End Spoiler Bolt(1) - Install and tighten [11x] - Fastener Specifications

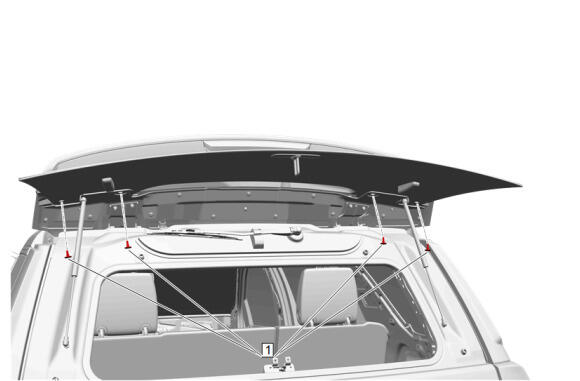

Rear End Spoiler Bolt(1) - Install and tighten [4x] - Fastener Specifications
- Close the rear compartment lid.
Open the liftgate.
- Connect all electrical connectors.
- Rear Window Washer Nozzle Hose Extension - Connect
- Connect the liftgate upper panel grommet.

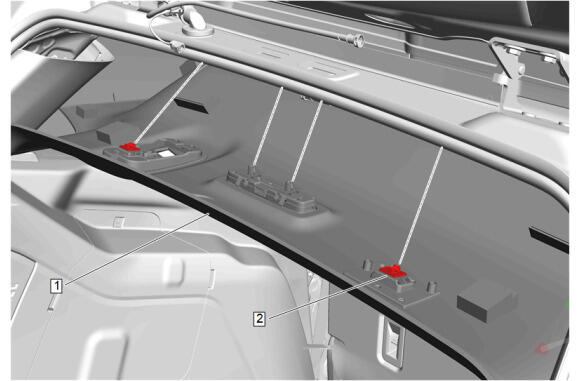

- Engage the retaining clips (2) at the rear underside of the headlining trim panel (1).
- Headlining Trim Panel(1) - Install
Body Rear Corner Upper Garnish Molding(1) - Reposition
Body Rear Corner Upper Garnish Molding Bolt (1) - Install and tighten - Fastener Specifications

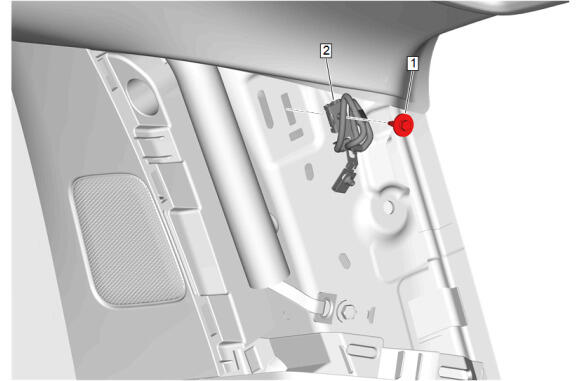

Body Side Rear Window Garnish Molding Tether Retaining Clip (2) - Install
- Body Side Rear Window Garnish Molding Bolt(1) - Install and tighten - Fastener Specifications
- NOTE:
Position the body side rear window garnish molding tether in the same position as before molding removal.
Body Side Rear Window Garnish Molding(1) - Install
Body Rear Corner Upper Garnish Molding(1) - Reposition
Body Rear Corner Upper Garnish Molding Bolt(1) - Install and tighten - Fastener Specifications
Body Side Rear Window Garnish Molding Tether Retaining Clip (2) - Install
- Body Side Rear Window Garnish Molding Bolt(1) - Install and tighten - Fastener Specifications
Body Side Rear Window Garnish Molding(1) - Install
Liftgate Weatherstrip(1) - Reposition
Refer to Fastener Caution .
