Installation Procedure

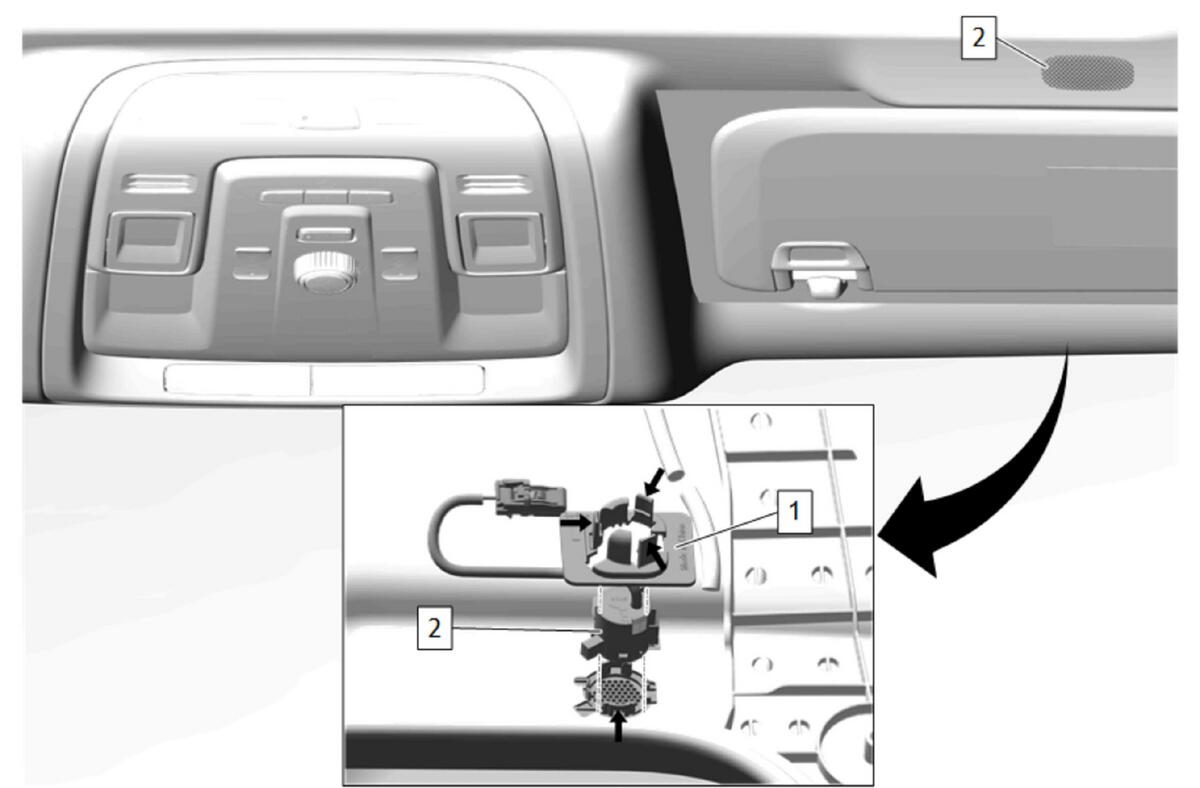

- Communication Interface Module Microphone (2) - Install
- Communication Interface Module Microphone Bezel Plate (1) - Install
- Secure the retaining tabs.
- Connect the electrical connector.
- Use hot melt adhesive to install the communication interface module microphone harness. Adhesives, Fluids, Lubricants, and Sealers
- Apply insulator tape over glued locations to prevent squeaks and rattles as needed.

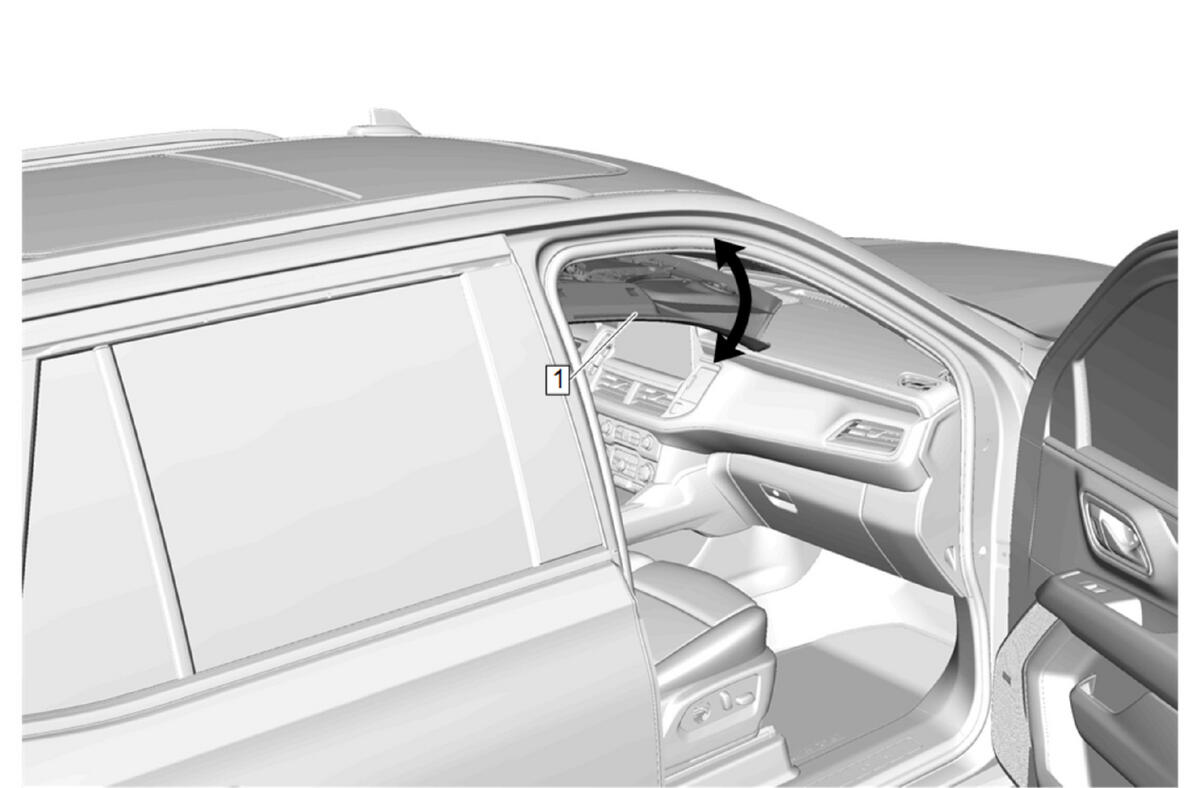

- Headlining Trim Panel (1) - Install

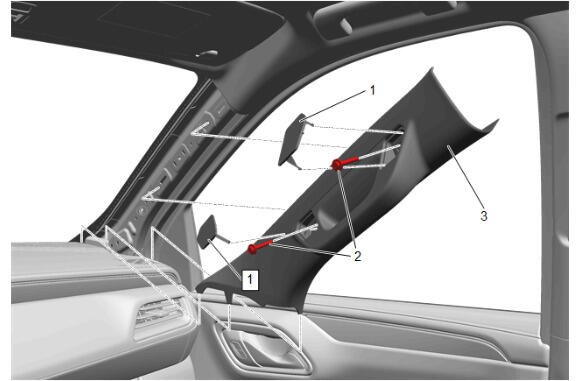

- Center Pillar Upper Trim Panel- Right Side (3) - InstallNOTE:
Left side shown, right side similar.
- Center Pillar Upper Garnish Molding Bolt - Right Side (2) - Install and tighten - Fastener Specifications
- Center Pillar Upper Trim Panel Bolt Cap- Right Side (1) - Install
- Align 6 retaining clips (2) with the upper and lower trim panels.NOTE:
Left side shown, right side similar.
- Center Pillar Center Trim Panel - Right Side (1) - Install
- Connect the electrical connectors.

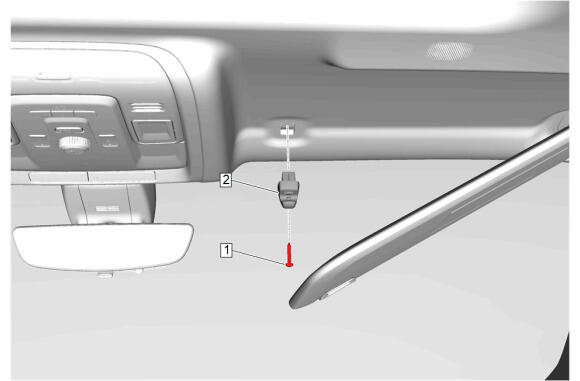

- Roof Console (3) - Install
- Roof Console Bolt (2) - Install and tighten [2x] - Fastener Specifications
- Roof Console Opening Trim Plate (1) - Install

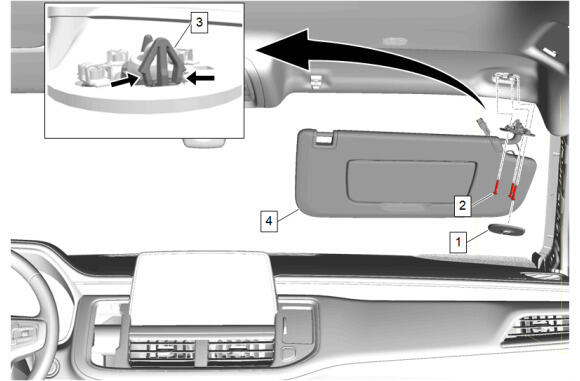

- Sunshade Bolt (2) - Install and tighten [3x] - Fastener Specifications
- Sunshade Retainer Bolt Cover (1) - Install

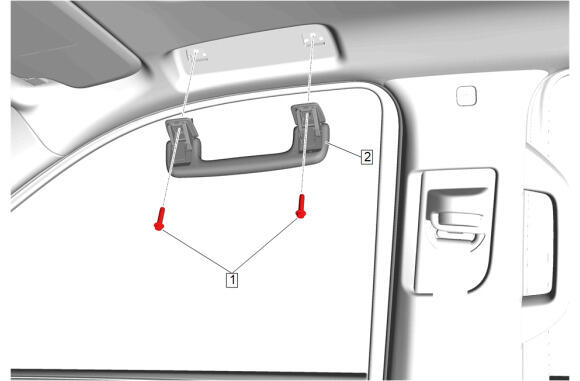

- Roof Rail Assist Handle (2) - Install
- Roof Rail Assist Handle Bolt (1) - Install and tighten [2x] - Fastener Specifications
- Windshield Garnish Molding-Right Side (3) - Install
- Windshield Pillar Assist Handle Bolt (2) - Install and tighten [2x] - Fastener Specifications
- Windshield Pillar Assist Handle Cover (1) - Install [2x]
- Reposition the weatherstrip as necessary.
- Sunshade Support Bolt (1) - Install and tighten - Fastener Specifications
- Close the sunshade support bolt access cover.
- Enable the SIR System. SIR Disabling and Enabling
CAUTION:
Refer to Fastener Caution .
