Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

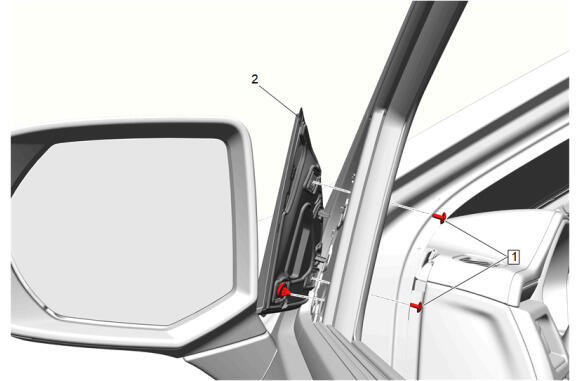

Front Side Door Window Frame Front Applique(2) - Install

CAUTION:

Front Side Door Window Frame Front Applique Bolt (1) - Install and tighten [2x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

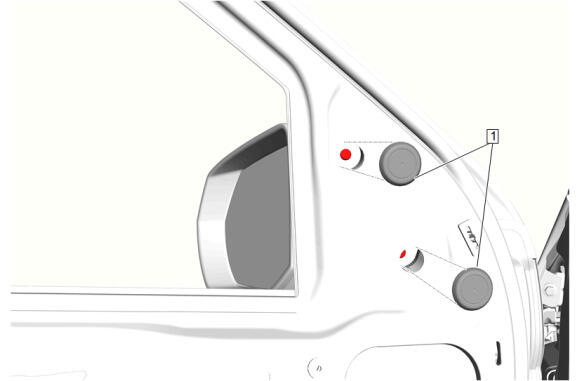

Front Side Door Inner Panel Hole Plug(1) - Install [2x]
Courtesy of GENERAL MOTORS COMPANY

NOTE:

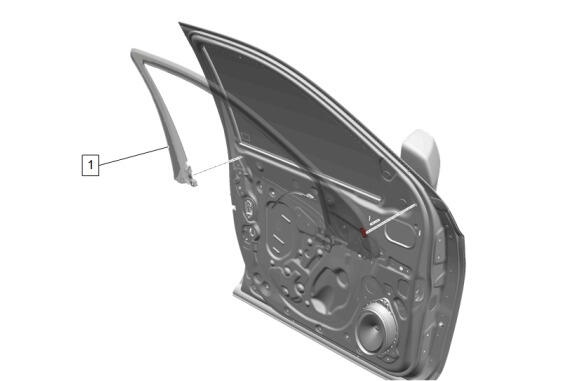

Ensure that the door weatherstrip is not trapped below the window garnish molding (1) once completely installed. Reposition the weatherstrip as necessary.

Front Side Door Window Garnish Molding(1) - Install
Front Side Door Trim - Install - Front Side Door Trim Removal and Installation
