Engine Compartment

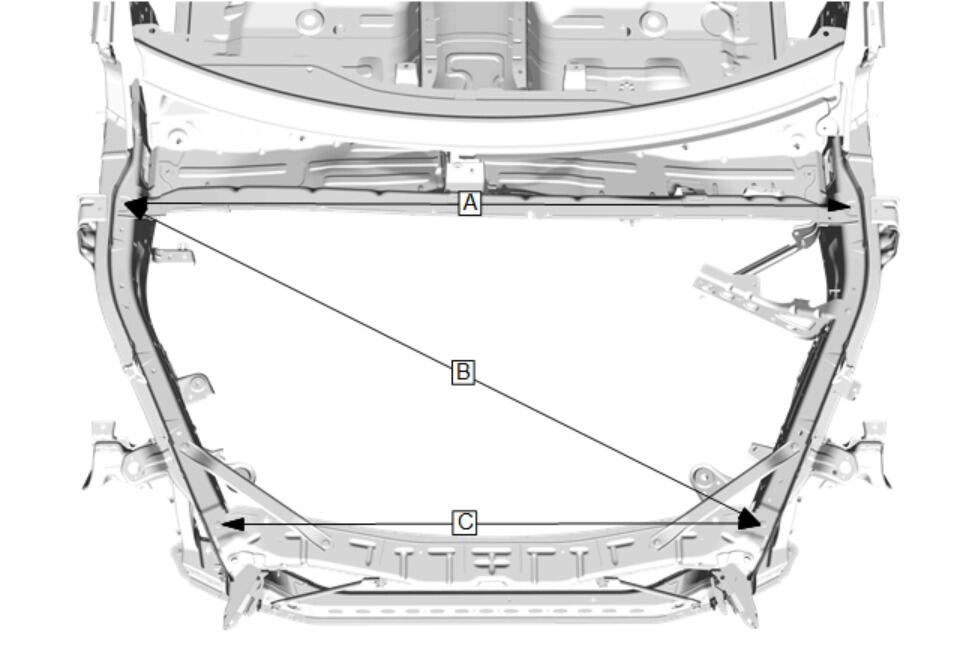

Fig 1: Engine Compartment Dimensions And Measurement Points
Courtesy of GENERAL MOTORS COMPANY
Number
Measurement (mm)
A
1637
B
1562
C
1136
