Multifunction Relay Module Bracket Replacement

Courtesy of GENERAL MOTORS COMPANY

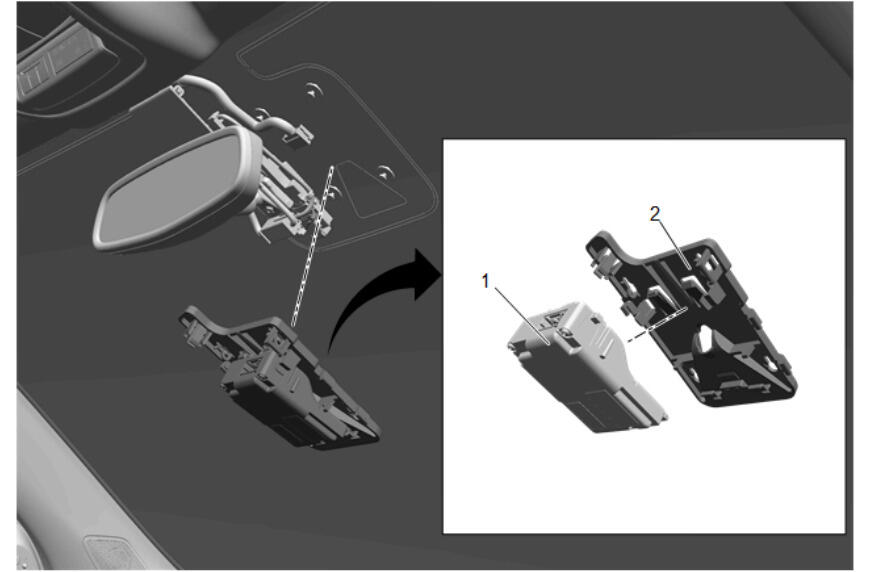

Callout	Component Name
Preliminary Procedure Windshield Multifunction Sensor Mount Bracket Cover Replacement
1	Front View Camera Procedure Gently push up the front view camera and multifunction relay module bracket together. Disconnect the electrical connector. Separate the front view camera from the multifunction relay module bracket.
2	Multifunction Relay Module Bracket

Callout

Component Name

Front View Camera

Procedure

Gently push up the front view camera and multifunction relay module bracket together.
Disconnect the electrical connector.
Separate the front view camera from the multifunction relay module bracket.

Multifunction Relay Module Bracket
