Engine Oil Temperature Sensor Replacement

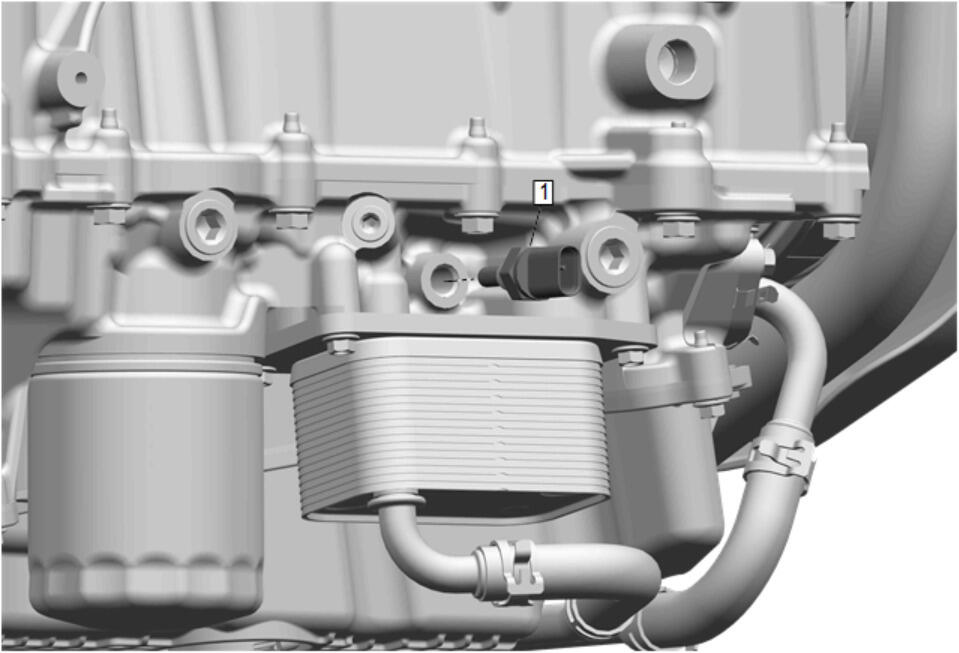

GM5220118Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Engine Oil Cooler Replacement (L3T)
1 Engine Oil Temperature Sensor
CAUTION:

Refer to Component Fastener Tightening Caution .


Procedure
Disconnect the engine oil temperature sensor electrical wiring harness connector.
Tighten
20 N.m (15 lb ft)
