Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

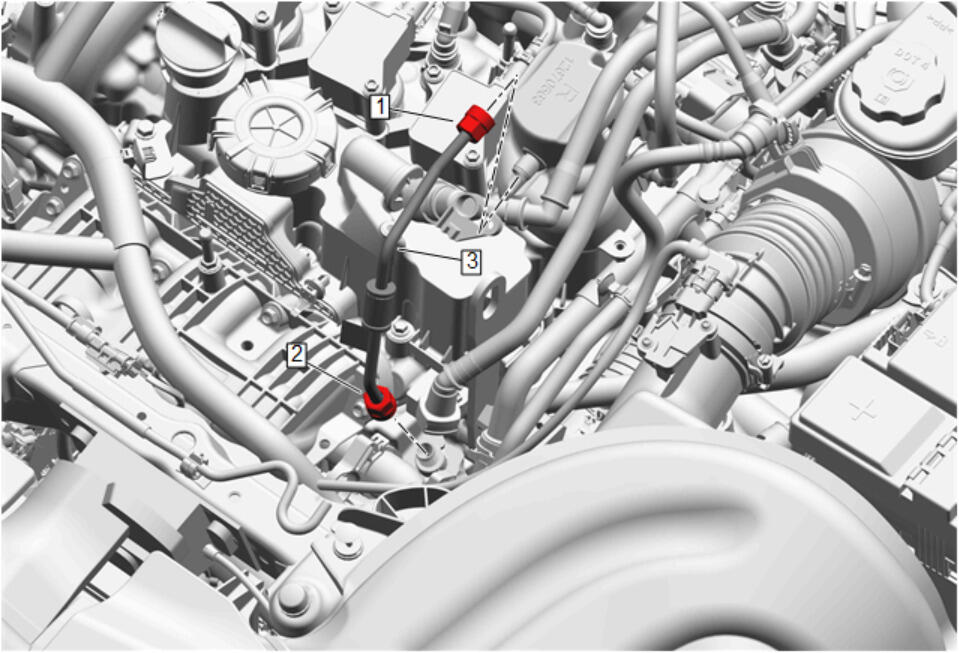

Fuel Feed Intermediate Pipe (3) - Install NEW
Fuel Feed Intermediate Pipe Nut (1, 2) - Install and hand tighten

CAUTION:

Fastener Caution

Fuel Feed Intermediate Pipe Nut (1, 2) - Tighten 30 N.m (22 lb ft)
Install the evaporative emission canister purge pump. Evaporative Emission Canister Purge Pump Replacement
