Engine Controls And Fuel - 1.35L (L3T) - Repair Instructions
>>
Repair Instructions
>>
Mass Airflow Sensor Replacement
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!

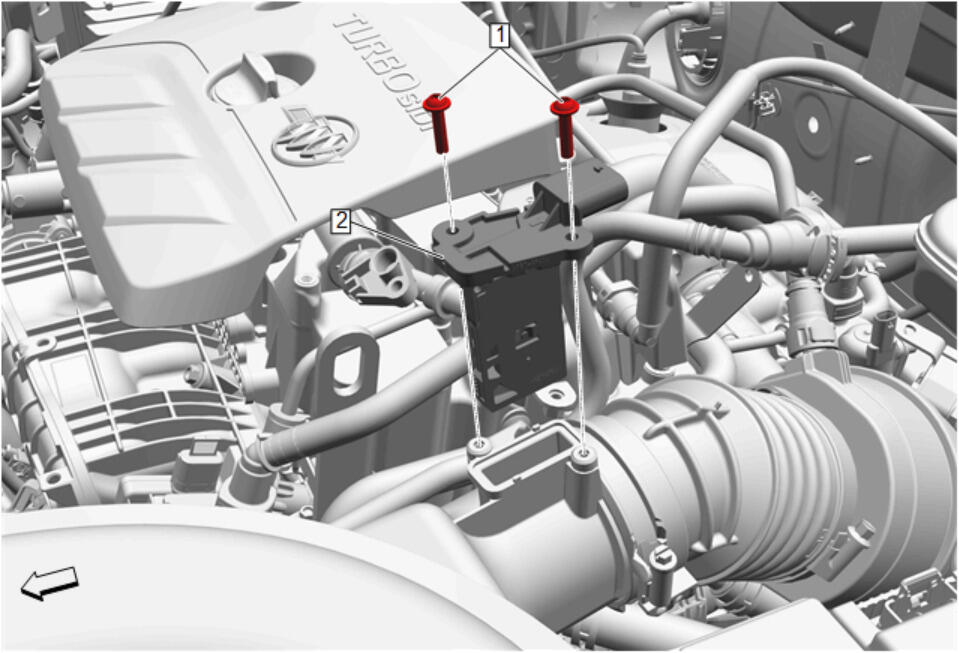

Mass Airflow Sensor Replacement
Courtesy of GENERAL MOTORS COMPANY
Callout
Component Name
1
Mass Airflow Sensor Bolt [2x]
CAUTION:
Fastener Caution
.
Tighten
1.3 N.m (12 lb in)
2
Mass Airflow Sensor
Procedure
Disconnect the electrical connector.
