Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

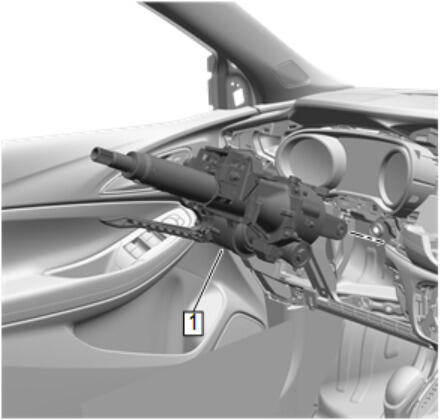

Steering Column (1) @ Vehicle - Install
Courtesy of GENERAL MOTORS COMPANY

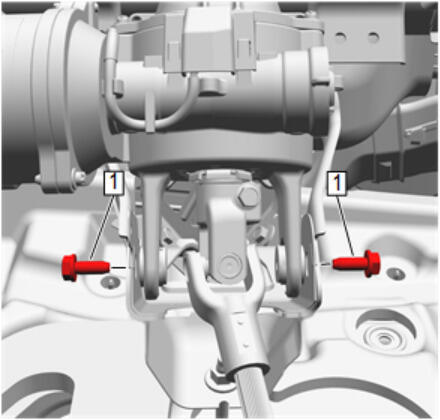

Steering Column Lower Support Bracket Bolt (1) - Hand tighten [2x]
Courtesy of GENERAL MOTORS COMPANY

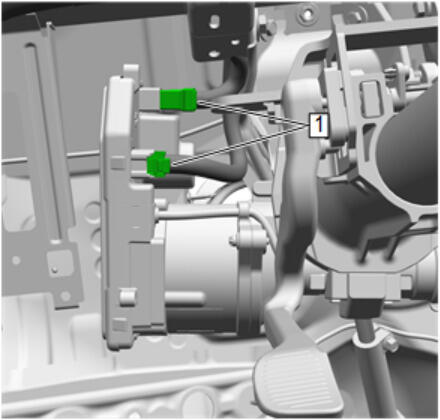

Electrical Connector (1) - Connect [2x]
Swing up the steering column to the correct position.
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Fastener Caution

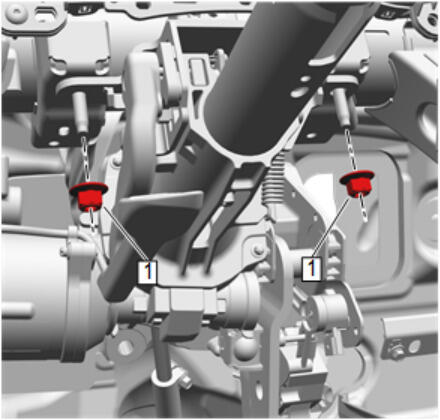

Steering Column Nut (1) - Install and tighten [2x] 22 N.m (16 lb ft)
Courtesy of GENERAL MOTORS COMPANY

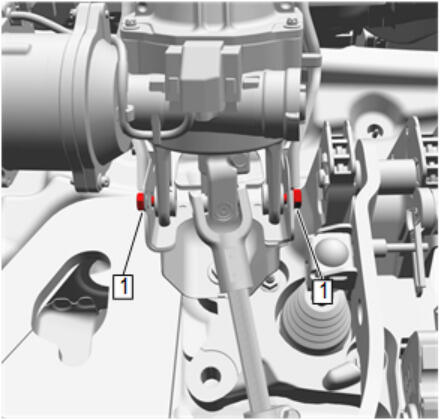

Steering Column Lower Support Bracket Bolt (1) - Tighten [2x] 22 N.m (16 lb ft)
Intermediate Steering Shaft @ Vehicle - Install - Intermediate Steering Shaft Replacement
Courtesy of GENERAL MOTORS COMPANY

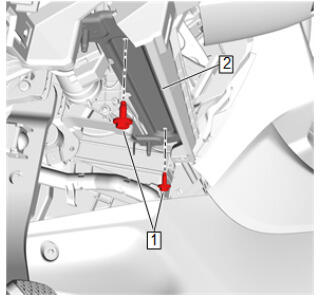

Instrument Panel Lower Airbag Bracket (2) - Install
Instrument Panel Lower Airbag Bracket Bolt (1) - Install and tighten [2x] 9 N.m (80 lb in)
Courtesy of GENERAL MOTORS COMPANY

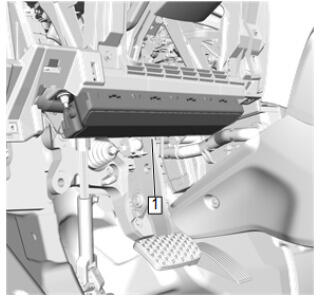

Instrument Panel Lower Airbag - Driver Side (1) - Install - Instrument Panel Lower Airbag Replacement - Driver Side
Courtesy of GENERAL MOTORS COMPANY

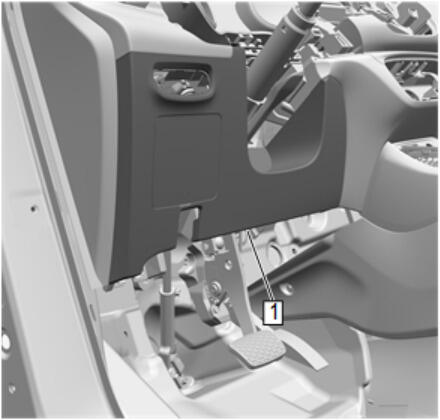

Instrument Panel Knee Bolster (1) - Install - Instrument Panel Knee Bolster Replacement
Steering Column Control Module - Install - Steering Column Control Module Replacement
Steering Wheel - Install - Steering Wheel Replacement
Steering Wheel Airbag - Install - Steering Wheel Airbag Replacement
Enable the SIR System. SIR Disabling and Enabling
Program the electronic power steering control module. Control Module References
Calibrate the steering angle sensor. Steering Wheel Angle Sensor Centering
