Exhaust System Insulator Replacement

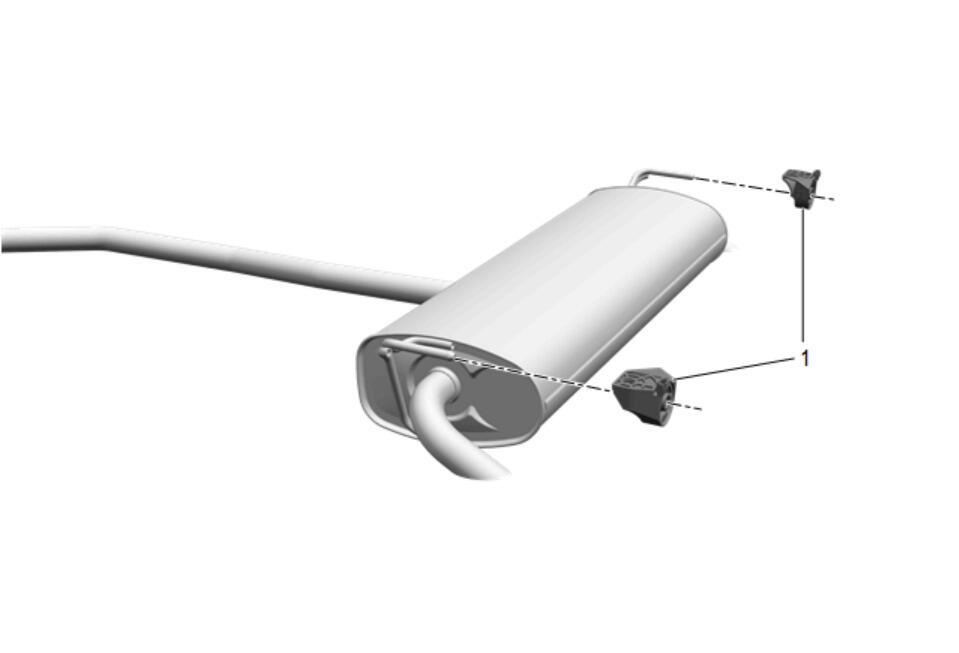

GM5286124Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Exhaust Rear Muffler Replacement (FWD with L3T) , or Exhaust Rear Muffler Replacement (AWD with L3T) , or Exhaust Rear Muffler Replacement (FWD with LIH)
1 Exhaust System Insulator [2x]
