X51A Fuse Block - Instrument Panel Label
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

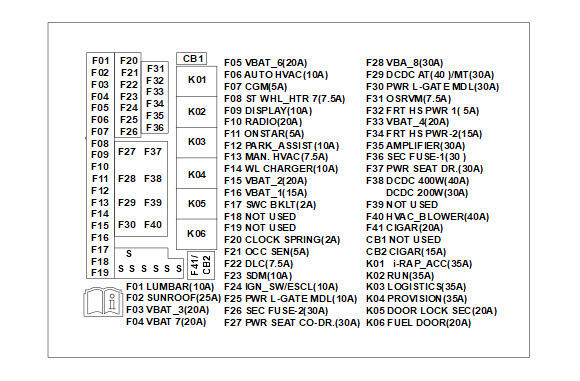

X51A Fuse Block - Instrument Panel Label
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
