Installation Procedure

Connect the electrical connector.
Courtesy of GENERAL MOTORS COMPANY

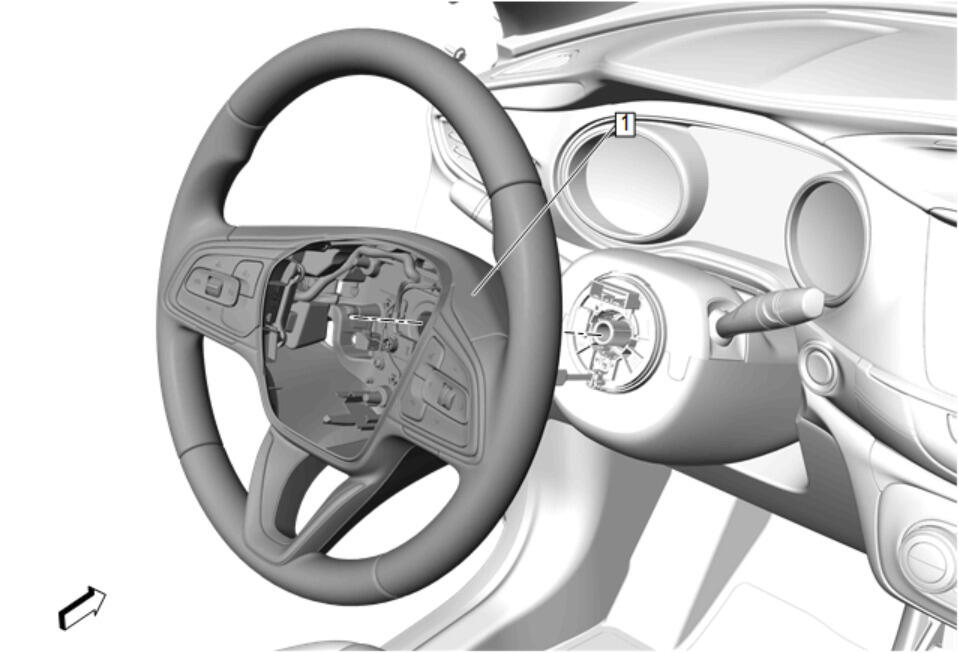

Install the steering wheel. (1)
Courtesy of GENERAL MOTORS COMPANY

If a NEW threaded component is being installed, loosen the adhesive using a metal pick or similar tool before proceeding. If threaded component is reused, prepare the threaded component using the following steps:
1. Remove any loose cured adhesive from the external threads of the component using a lint free cloth.
2. Thread the cleaned component into the internal mating threads and remove to loosen trapped cured adhesive. (1)
3. Apply thread locking adhesive to the external threads of the component. (1) Adhesives, Fluids, Lubricants, and Sealers
4. Ensure there are no gaps in the thread locking adhesive once applied to the component.

CAUTION:

Fastener Caution .

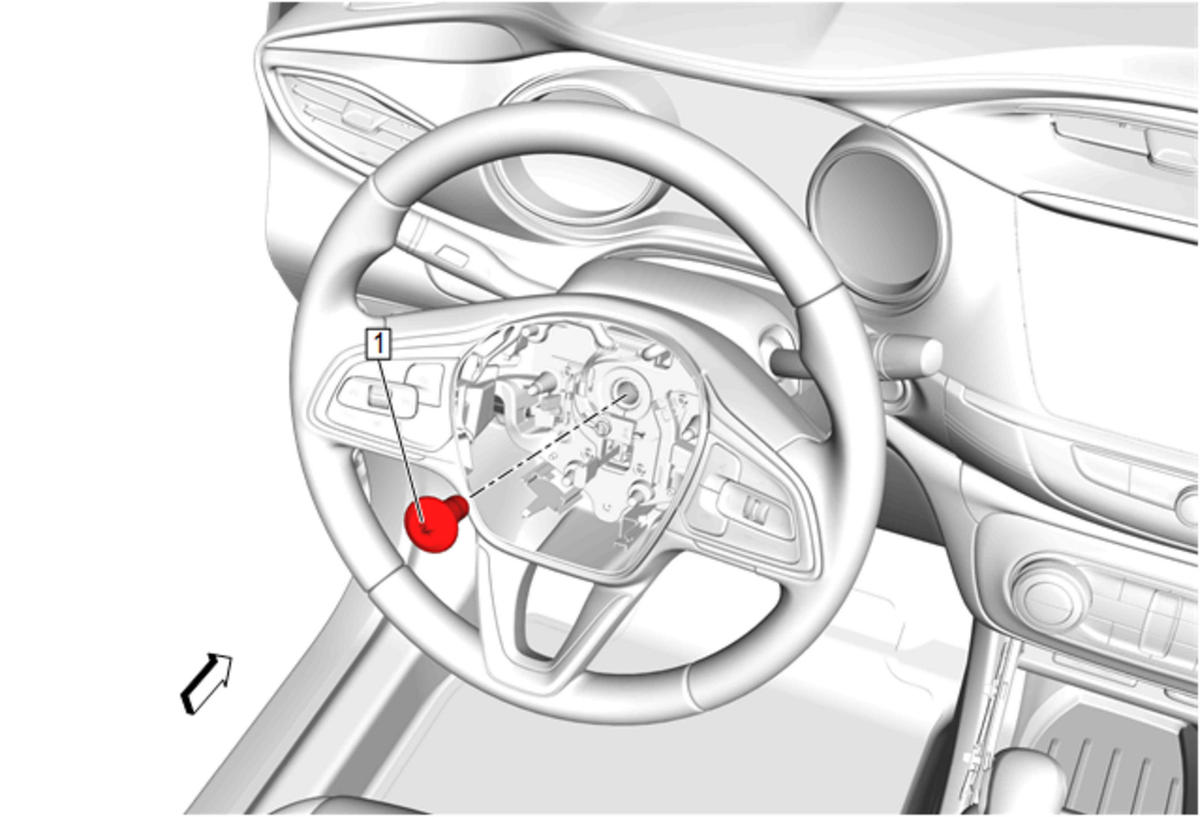

Steering Wheel Bolt (1) - Install and tighten 45 N.m (33 lb ft)
Steering Wheel Airbag - Install - Steering Wheel Airbag Replacement
