External Components

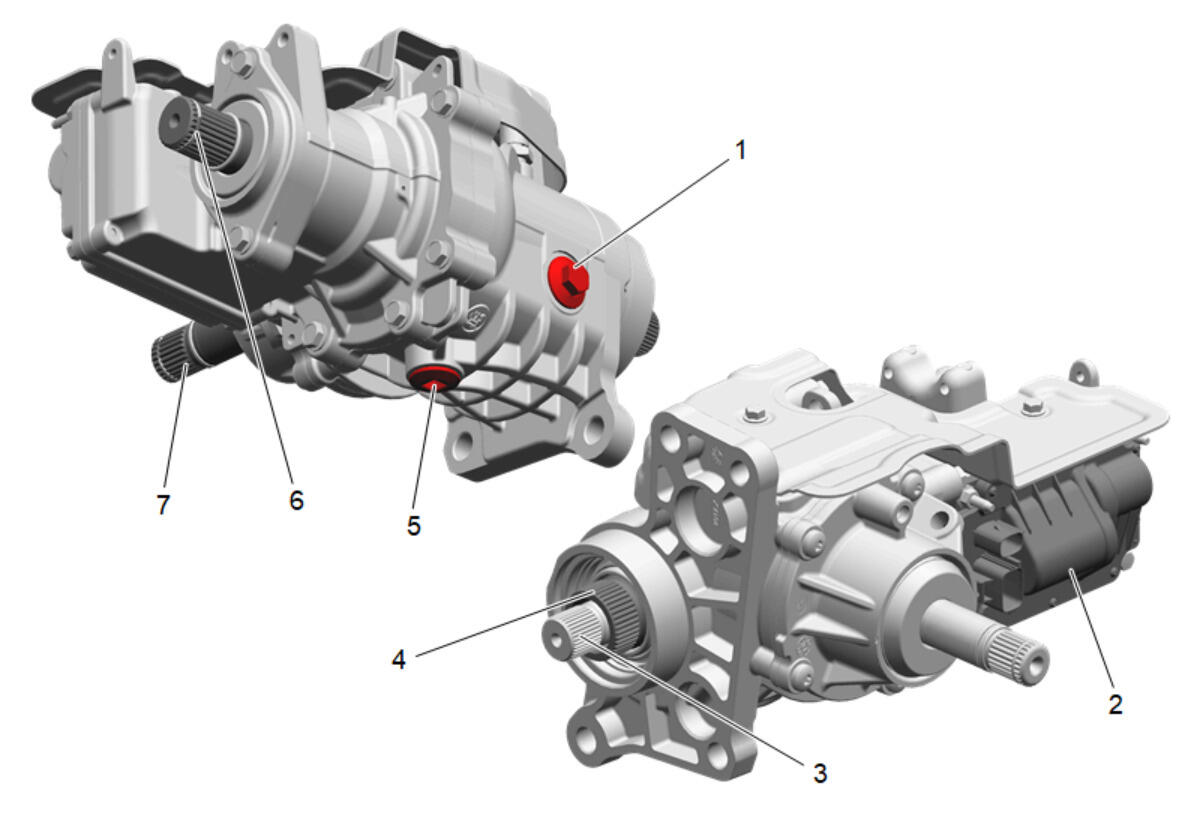

GM5400611Courtesy of GENERAL MOTORS COMPANY
  1. Power Transfer Unit Fill Plug
  2. Power Transfer Unit Shift Actuator
  3. Power Transfer Unit Intermediate Drive Shaft - Transmission Input
  4. Power Transfer Unit Input Shaft
  5. Power Transfer Unit Drain Plug
  6. Power Transfer Unit Intermediate Drive Shaft - Right Axle Shaft
  7. Power Transfer Unit Input Shaft
