Installation Procedure

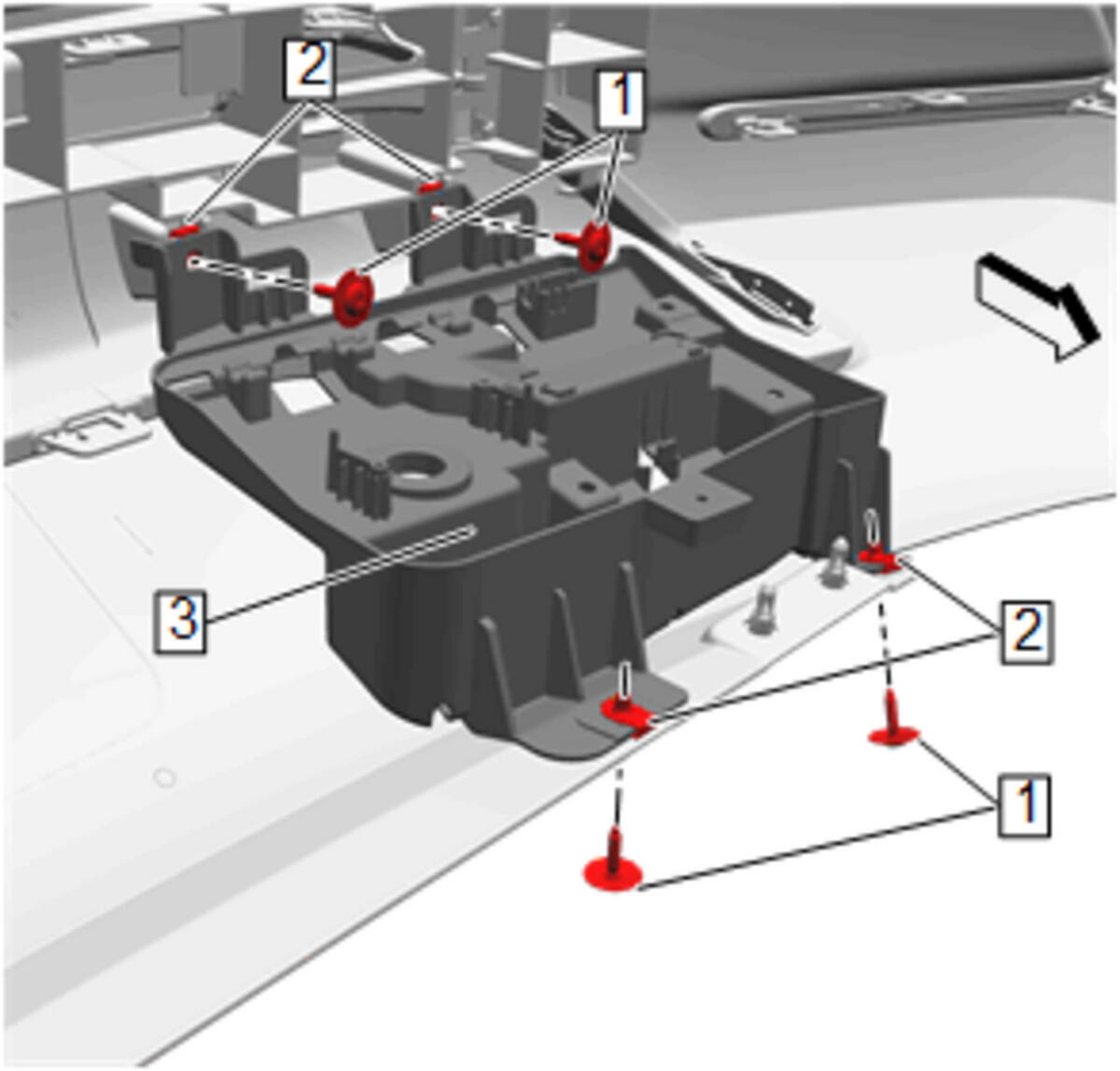

  1. GM5390769Courtesy of GENERAL MOTORS COMPANY

    Rear Closure Hands Free Module Bracket (3) - Install

  2. Rear Closure Hands Free Module Bracket Spring Nut (2) - Install [4x]
    3. CAUTION:

    Fastener Caution

  3. Rear Closure Hands Free Module Bracket Screw (1) - Install and tighten [4x] 2.5 N.m (22 lb in)

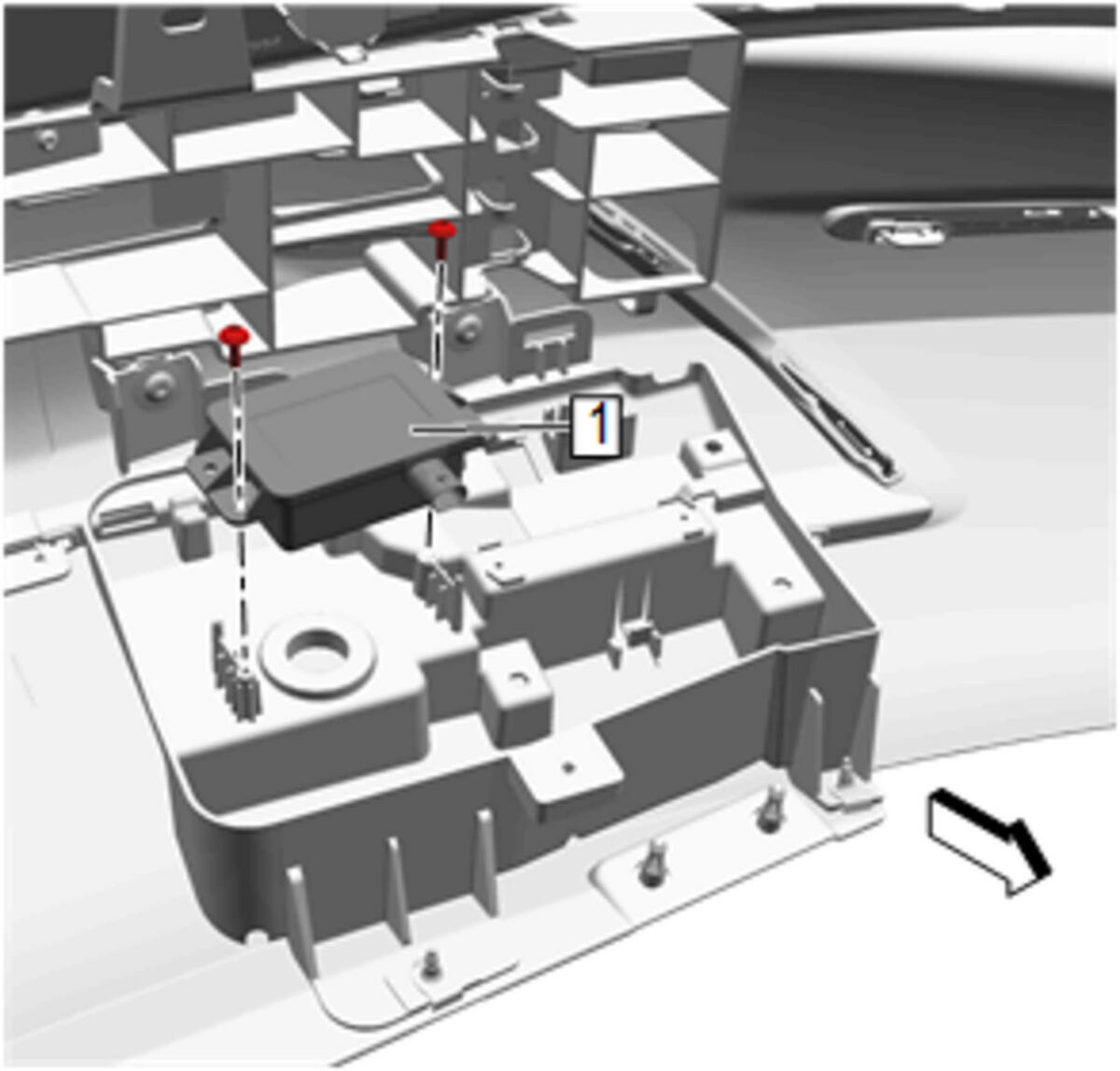

  4. GM5390767Courtesy of GENERAL MOTORS COMPANY

    Rear Closure Hands Free Lamp (1) - Install - Rear Closure Hands Free Lamp Replacement

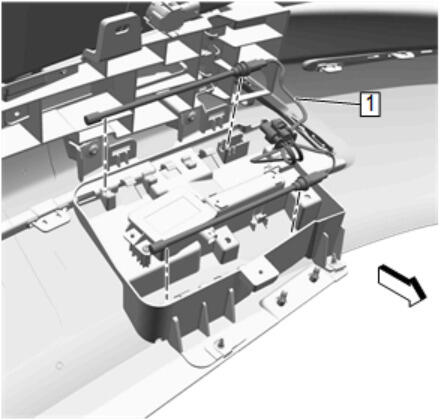

  5. GM5390765Courtesy of GENERAL MOTORS COMPANY

    Rear Closure Hands Free Sensor (1) - Install

  6. GM5390762Courtesy of GENERAL MOTORS COMPANY

    Rear Closure Hands Free Module (2) - Install

  7. Connect the electrical connector.
  8. Rear Closure Hands Free Module Screw (1) - Install and tighten [2x] 0.4 N.m (4 lb in)
  9. GM5390761Courtesy of GENERAL MOTORS COMPANY

    Wiring Harness (2) - Position

  10. Wiring Harness Retainer (1) - Install [2x]
  11. GM5390689Courtesy of GENERAL MOTORS COMPANY

    Rear Closure Hands Free Sensor Shield (2) - Install - Rear Closure Hands Free Sensor Shield Replacement

  12. GM5220200Courtesy of GENERAL MOTORS COMPANY

    Rear Bumper Fascia (1) - Install - Rear Bumper Fascia Replacement
