Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

Install the rear side door lock cylinder opening cover (1) to the lock cylinder insulator.(2)
Courtesy of GENERAL MOTORS COMPANY

Pull the rear side door handle (1) out to the open position.
Courtesy of GENERAL MOTORS COMPANY

Rear Side Door Lock Cylinder Opening Cover (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Place the rear side door outside handle (1) in the closed position.
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution .

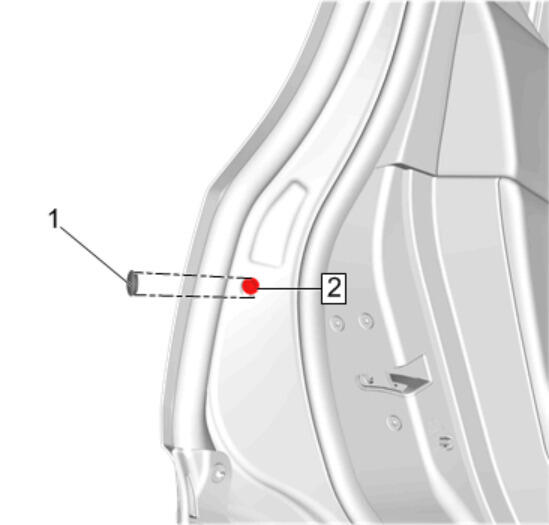

Rear Side Door Outside Handle Lock Cylinder Screw (2) - Install and tighten 4.7 N.m (42 lb in)
Rear Side Door Access Hole Cover (1) - Install
