Vehicle Underbody Components

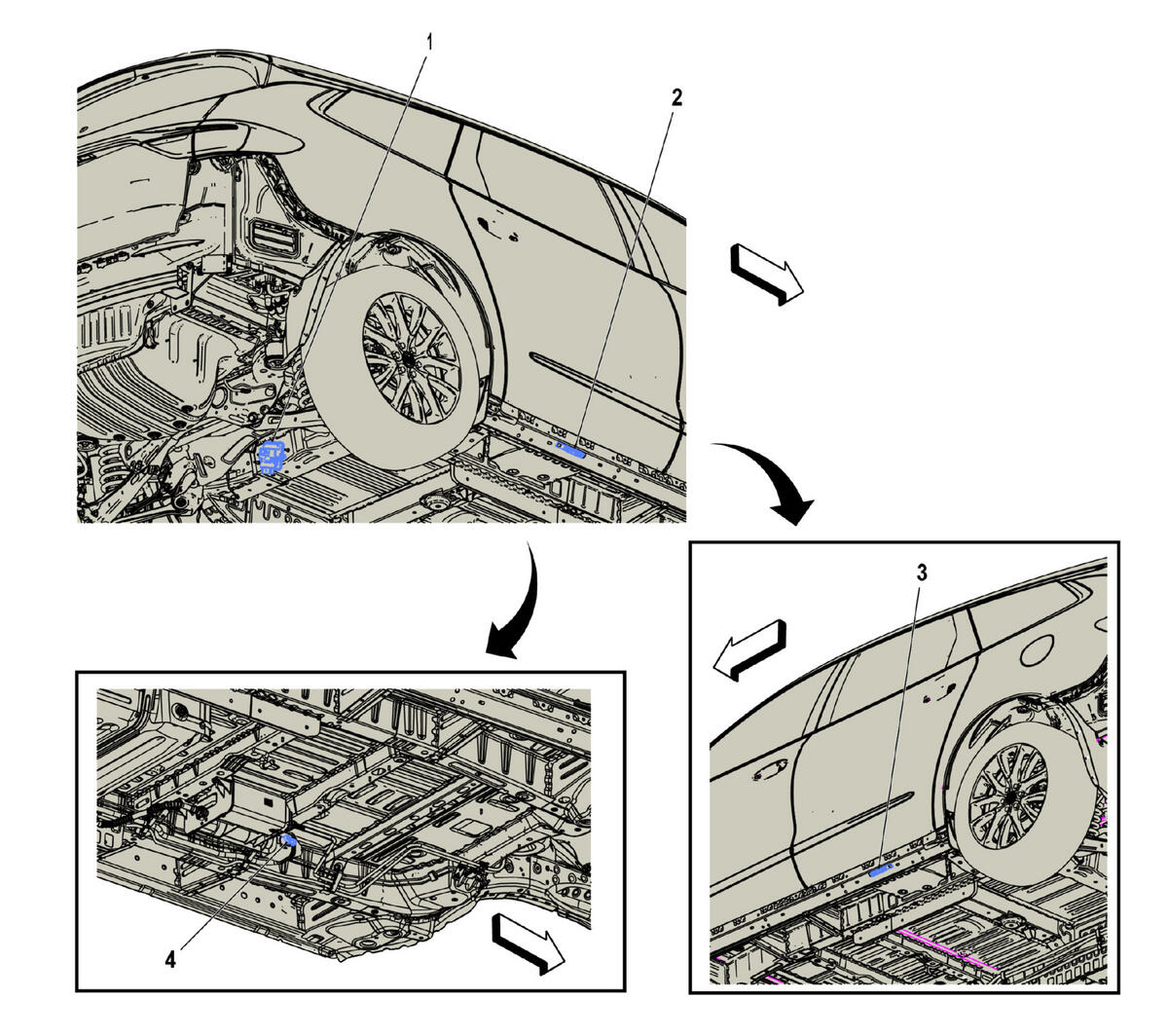

GM5701923Courtesy of GENERAL MOTORS COMPANY
Vehicle Underbody Components

Component Name Callout
K111 Fuel Pump Driver Control Module K111 Fuel Pump Driver Control Module 1
T10R Keyless Entry Antenna - Right Body 2
T10L Keyless Entry Antenna - Left Body 3
Q13 Evaporative Emission Vent Solenoid Valve Q13 Evaporative Emission Vent Solenoid Valve 4
