Fastener Specifications
WARNING: This page is about a different car, the 2020 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

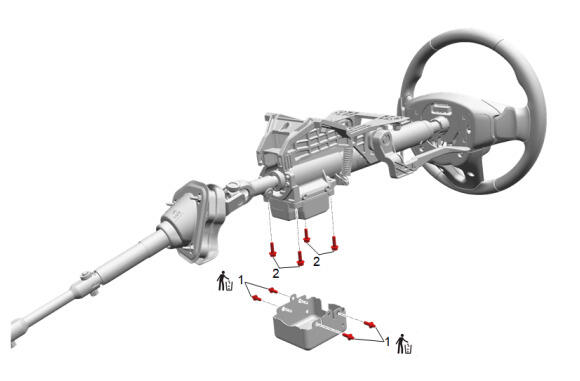

Column Lock Module
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Steering Column Lock Control Module Protector Bolt [4x] | Yes | - | Tighten until the bolt head breaks off | Column Lock Module Replacement |
| 2 | Steering Column Lock Control Module Bolt [4x] | - | - | 9.5 (84 lb in) | Column Lock Module Replacement |

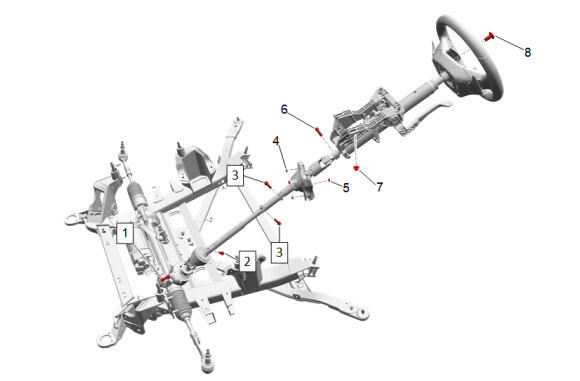

Steering Column - AWD
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Intermediate Steering Shaft Lower Bolt | - | Yes | 57 (42 lb ft) | Intermediate Steering Shaft Replacement (RWD) Intermediate Steering Shaft Replacement (AWD) |
| 2 | Mid Intermediate Steering Shaft Bolt | - | Yes | 36 (27 lb ft) | Mid Lower Intermediate Steering Shaft Replacement |
| 3 | Mid Intermediate Steering Shaft Bolt [2x] | - | Yes | 36 (27 lb ft) | Mid Intermediate Steering Shaft Replacement (RWD) Mid Intermediate Steering Shaft Replacement (AWD) |
| 4 | Intermediate Steering Shaft Boot Nut [3x] | - | - | Intermediate Steering Shaft Boot Nut Sequence | Intermediate Steering Shaft Boot Replacement - Outer |
| 5 | Intermediate Steering Shaft Boot Nut | - | - | 9 (80 lb in) | Intermediate Steering Shaft Boot Replacement - Inner |
| 6 | Upper Intermediate Steering Shaft Bolt | - | - | 50 (37 lb ft) | Steering Column Replacement |
| 7 | Steering Column Nut [4x] | - | - | Steering Column Nut Sequence | Steering Column Replacement |
| 8 | Steering Wheel Bolt | - | Yes | 45 (33 lb ft) | Steering Wheel Replacement |

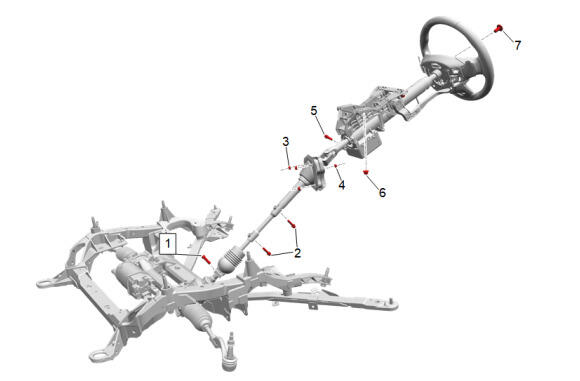

Steering Column - RWD
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Intermediate Steering Shaft Lower Bolt | - | Yes | 57 (42 lb ft) | Intermediate Steering Shaft Replacement (RWD) Intermediate Steering Shaft Replacement (AWD) |
| 2 | Mid Intermediate Steering Shaft Bolt [2x] | - | Yes | 36 (27 lb ft) | Mid Intermediate Steering Shaft Replacement (RWD) Mid Intermediate Steering Shaft Replacement (AWD) |
| 3 | Intermediate Steering Shaft Boot Nut [3x] | - | - | Intermediate Steering Shaft Boot Nut Sequence | Intermediate Steering Shaft Boot Replacement - Outer |
| 4 | Intermediate Steering Shaft Boot Nut | - | - | 9 (80 lb in) | Intermediate Steering Shaft Boot Replacement - Inner |
| 5 | Upper Intermediate Steering Shaft Bolt | - | - | 50 (37 lb ft) | Upper Intermediate Steering Shaft Replacement |
| 6 | Steering Column Nut [4x] | - | - | Steering Column Nut Sequence | Steering Column Replacement |
| 7 | Steering Wheel Bolt | - | Yes | 45 (33 lb ft) | Steering Wheel Replacement |

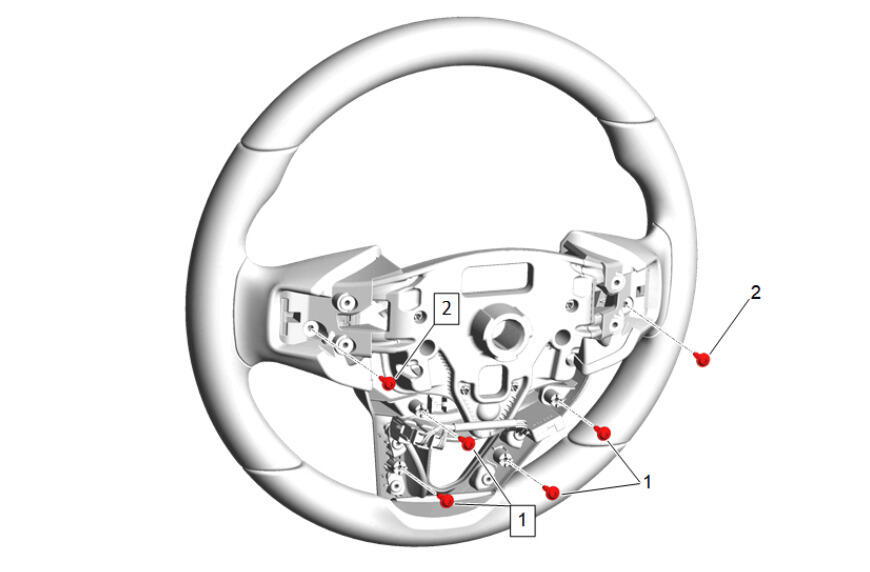

Steering Wheel
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Steering Wheel Bolt @ Steering Wheel Shroud [4x] | - | - | 1.8 (16 lb in) | Steering Wheel Shroud Replacement |
| 2 | Steering Wheel Bolt @ Steering Wheel Spoke Cover [2x] | - | - | 1.8 (16 lb in) | Steering Wheel Spoke Cover Replacement |

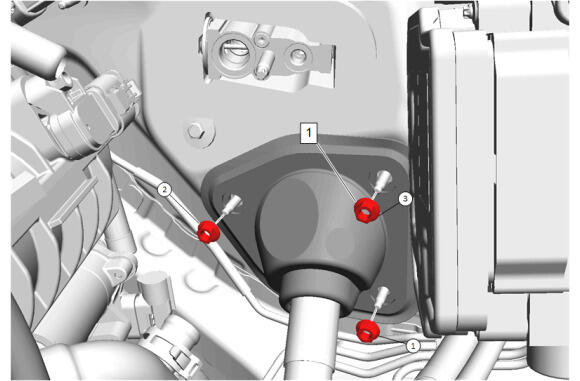

| Intermediate Steering Shaft Boot Nut Sequence | |||||
|---|---|---|---|---|---|
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
| Metric (English) | |||||
| 1 | Intermediate Steering Shaft Boot Nut [3x] | - | - | 9 (80 lb in) | Intermediate Steering Shaft Boot Replacement - Outer |

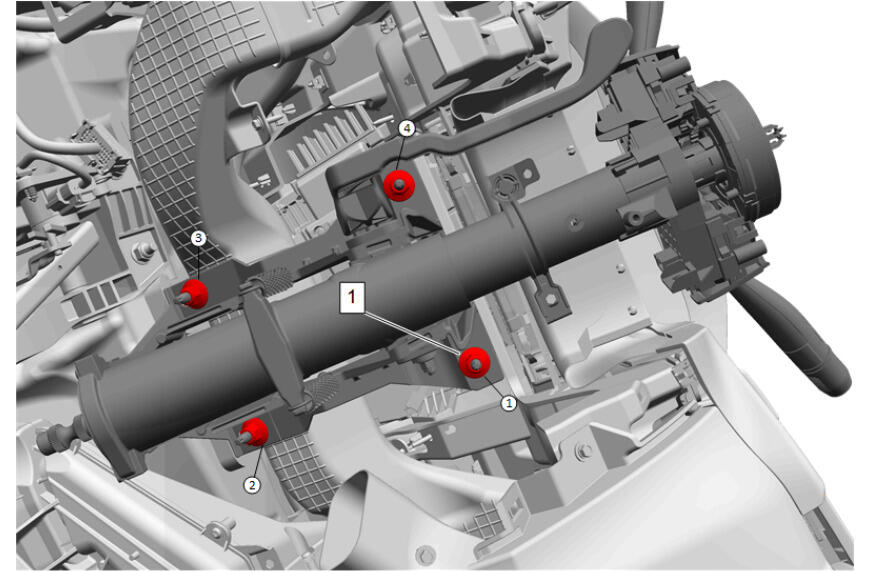

| Steering Column Nut Sequence | |||||
|---|---|---|---|---|---|
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
| Metric (English) | |||||
| 1 | Steering Column Nut [4x] | - | - | 22 (16 lb ft) | Steering Column Replacement |
