Removal Procedure

WARNING: This page is about a different car, the 2020 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

Reposition the seat as necessary to access the retaining clips.
Using a flat-bladed plastic trim tool, release the retaining clips.
Front Floor Console Extension Panel - Right Side (1) - Remove
Courtesy of GENERAL MOTORS COMPANY

Reposition the seat as necessary to access the retaining clips.
Using a flat-bladed plastic trim tool, release the retaining clips.
Front Floor Console Extension Panel - Left Side (1) - Remove
Courtesy of GENERAL MOTORS COMPANY

Front Floor Console Rear Cover Bolt (1) - Remove [ 2x ]
Front Floor Console Rear Trim Panel (2) - Remove
Disconnect the electrical connectors.
Courtesy of GENERAL MOTORS COMPANY

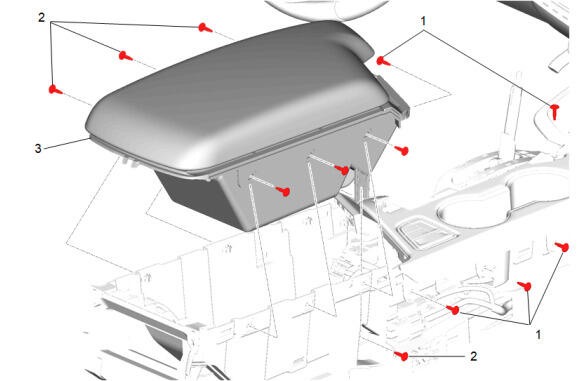

Front Floor Console Cup Holder Bolt (1) - Remove [ 3x ]
Loosen the front floor console cup holder enough to release the retainer clip attached to the front floor console armrest (3).
Front Floor Console Armrest Bolt (2) - Remove [ 7x ]
Front Floor Console Armrest (3) - Remove
Courtesy of GENERAL MOTORS COMPANY

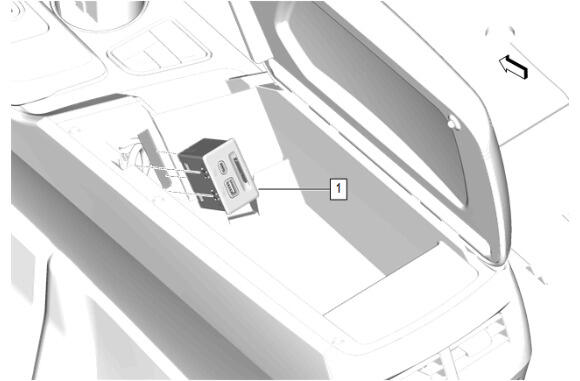

Using a suitable plastic trim tool, release the retaining tabs.
Multimedia Receptacle (1) - Remove
