Installation Procedure

WARNING: This page is about a different car, the 2020 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

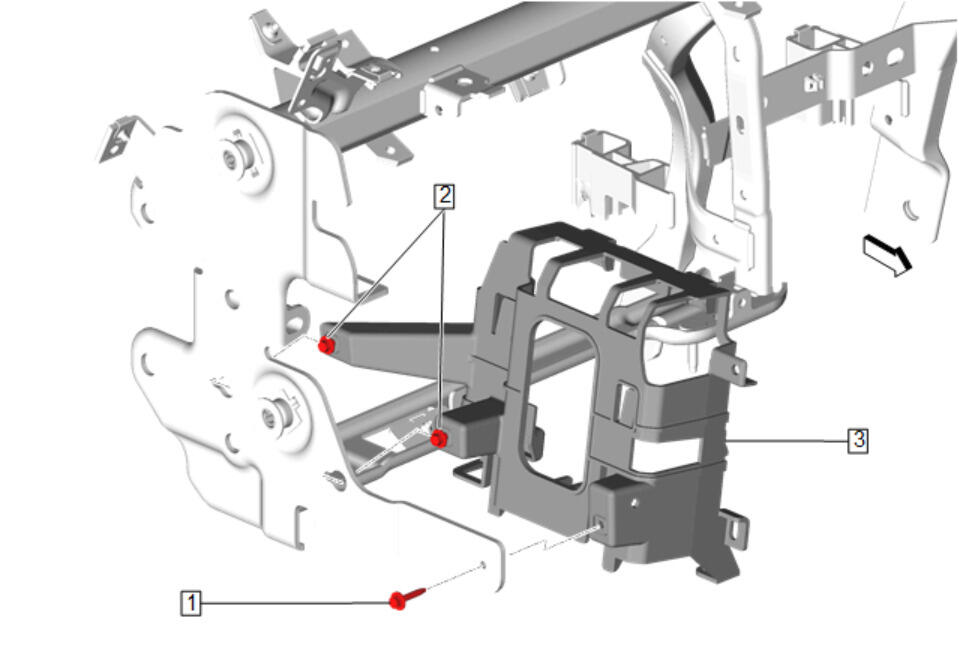

  1. GM5338076Courtesy of GENERAL MOTORS COMPANY

    Install the radio bracket (3) by sliding the bracket into the keyhole slot.

  2. CAUTION:

    Refer to Fastener Caution .

  3. Radio Bracket Bolt (2) - Tighten [ 2x ] - Fastener Specifications
  4. Radio Bracket Bolt (1) - Install and tighten - Fastener Specifications

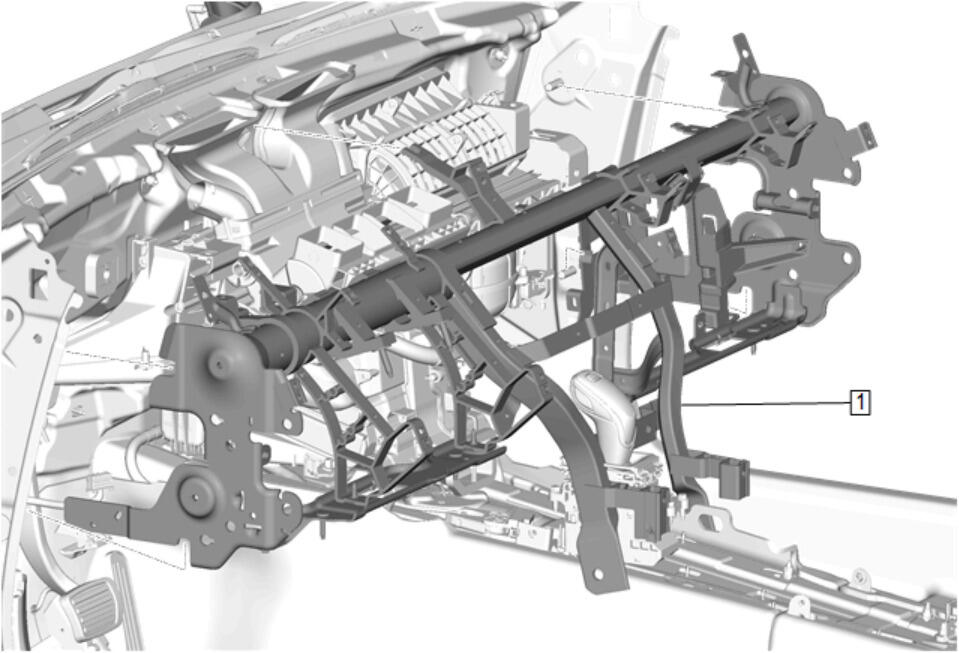

  5. GM5338075Courtesy of GENERAL MOTORS COMPANY

    With the aid of an assistant, position the instrument panel tie bar assembly into the vehicle. (1)

  6. Install the instrument panel wiring harness to the position noted in the removal procedure.
  7. Connect and position the wiring harness.

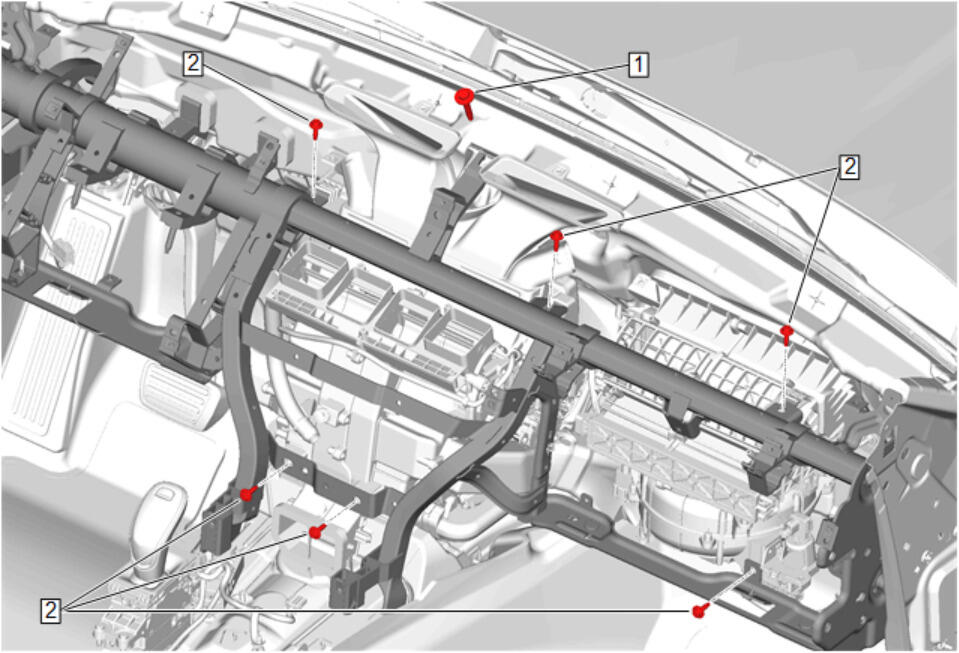

  8. GM5337748Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Tie Bar Bolt (1) - Install and tighten - Fastener Specifications

  9. Heater and Air Conditioning Evaporator and Blower Module Bolt (2) - Install and tighten [ 6x ] - Fastener Specifications

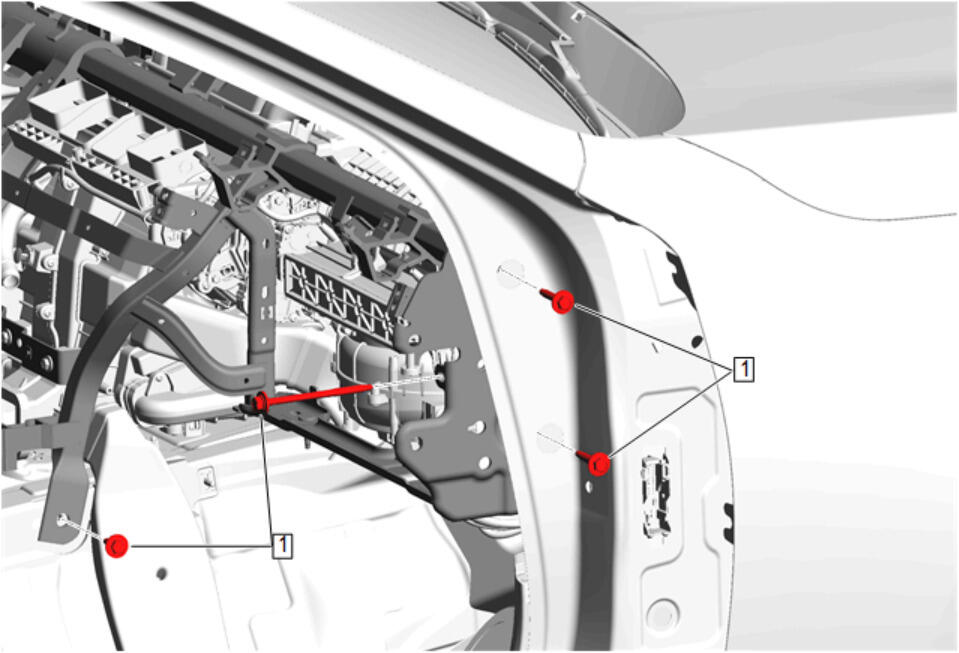

  10. GM5337747Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Tie Bar Bolt (1) - Install and tighten [ 4x ] - Fastener Specifications

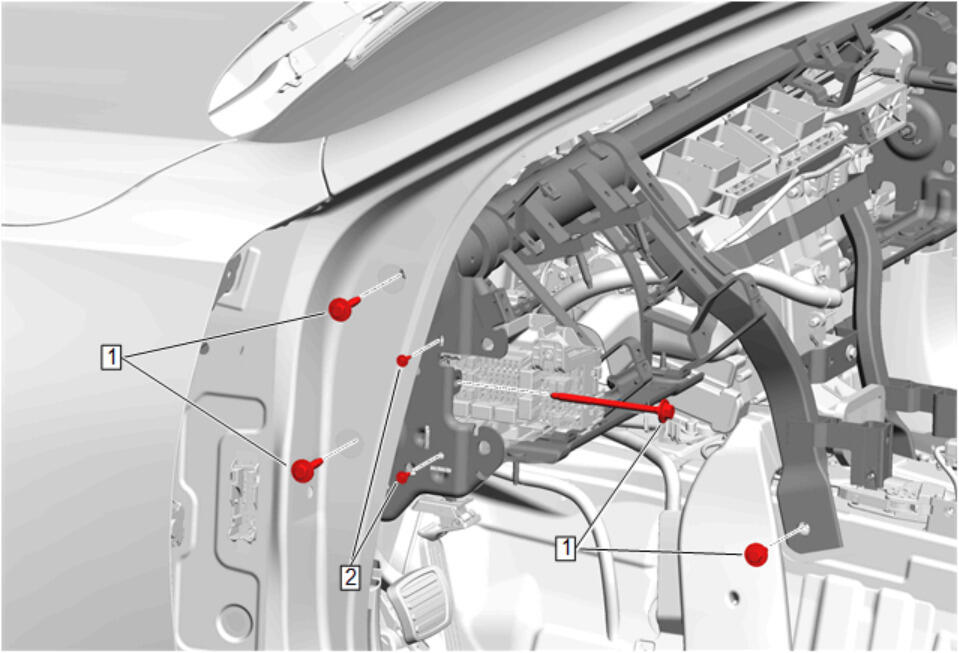

  11. GM5337750Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Tie Bar Bolt (1) - Install and tighten [ 4x ] - Fastener Specifications

  12. Front Compartment Fuse Block Bolt (2) - Install and tighten [ 2x ] - Fastener Specifications

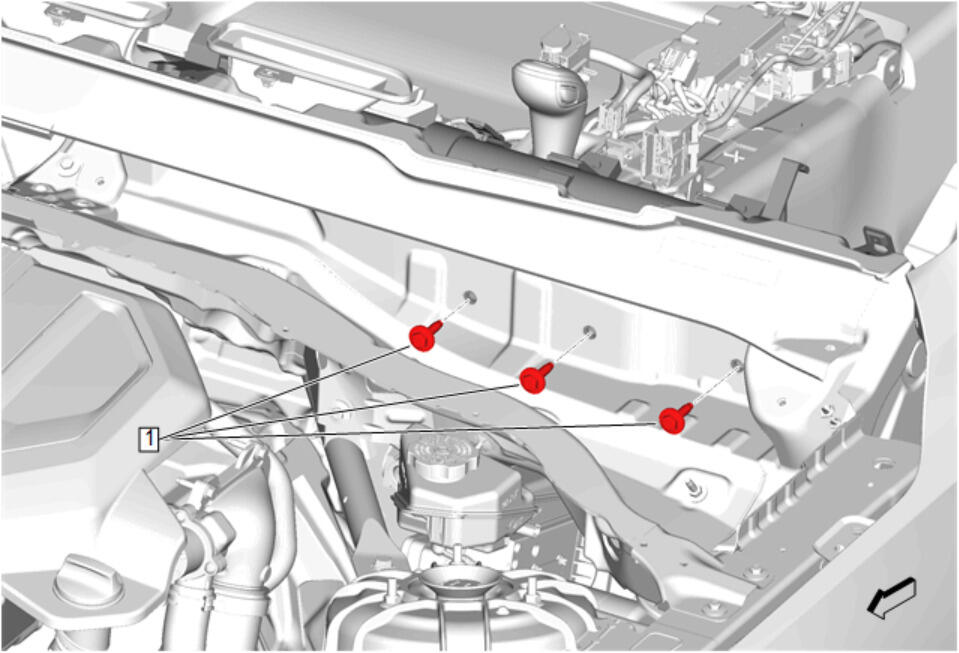

  13. GM5337744Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Tie Bar Brace Bolt (1) - Install and tighten [ 3x ] - Fastener Specifications

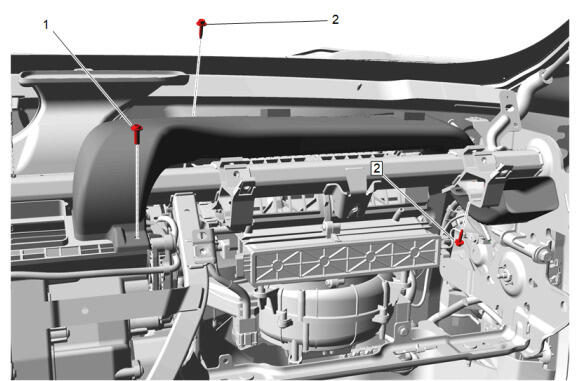

  14. GM5335106Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Center Air Outlet Duct Bolt (2) - Install and tighten [ 2x ] - Fastener Specifications

  15. Instrument Panel Center Air Outlet Duct Bolt-Torx (1) - Install and tighten - Fastener Specifications

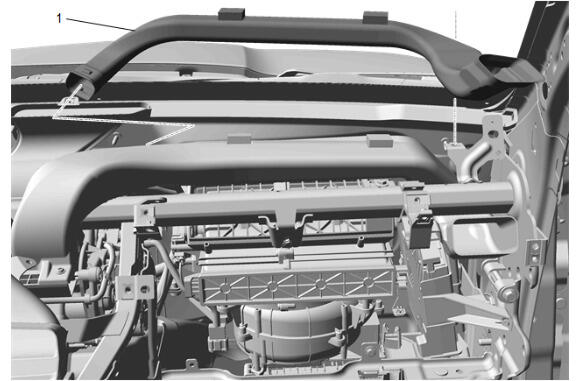

  16. GM5501911Courtesy of GENERAL MOTORS COMPANY

    Side Window Defogger Outlet Duct - Right Side (1) - Install

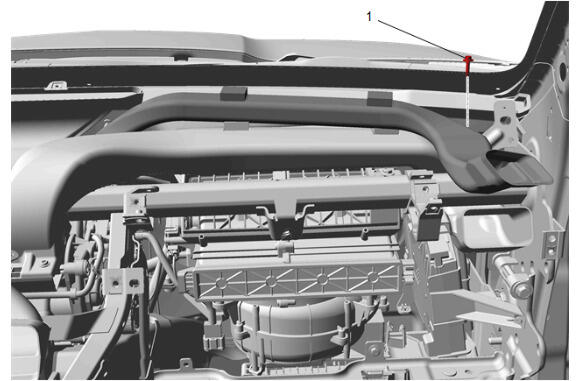

  17. GM5501910Courtesy of GENERAL MOTORS COMPANY

    Side Window Defogger Outlet Bolt (1) - Install and tighten - Fastener Specifications

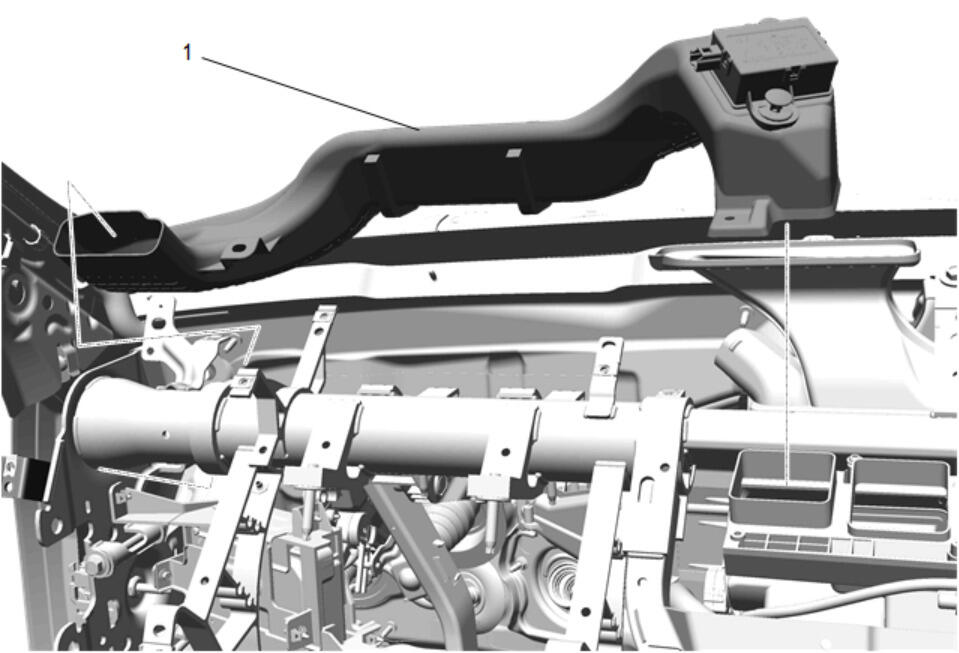

  18. GM5335530Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Outer Air Outlet Inner Duct - Left Side (1) - Install

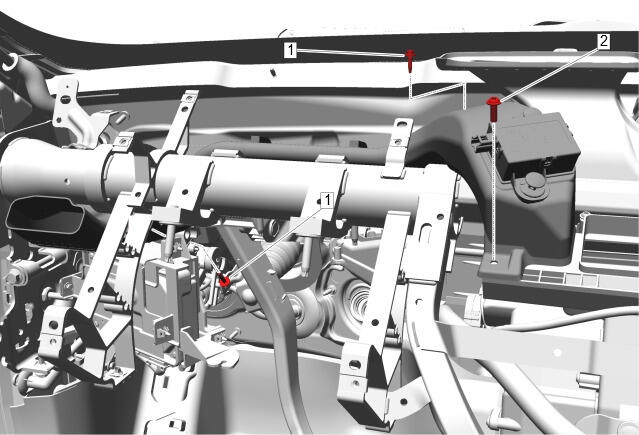

  19. GM5335527Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Center Air Outlet Duct Bolt-Torx (2) - Install and tighten - Fastener Specifications

  20. Instrument Panel Center Air Outlet Duct Bolt (1) - Install and tighten [ 2x ] - Fastener Specifications
  21. Connect the electrical connector.

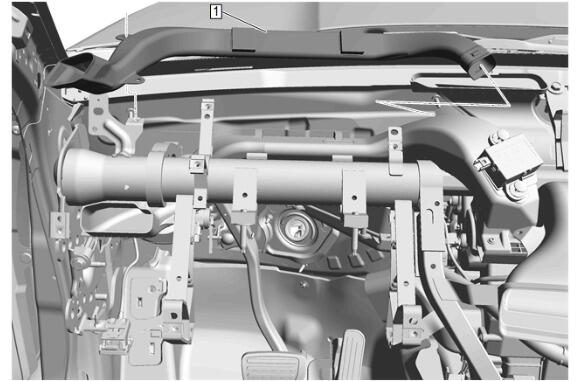

  22. GM5502704Courtesy of GENERAL MOTORS COMPANY

    Side Window Defogger Outlet Duct - Left Side (1) - Install

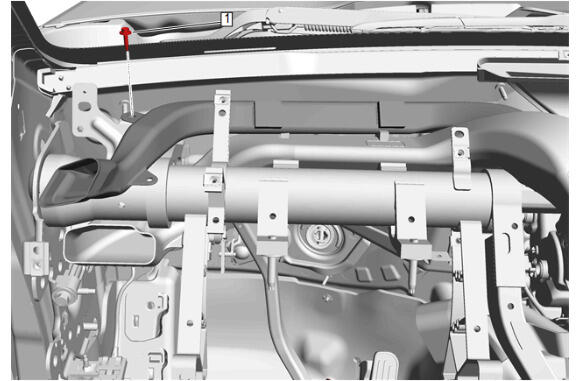

  23. GM5502702Courtesy of GENERAL MOTORS COMPANY

    Side Window Defogger Outlet Bolt (1) - Install and tighten - Fastener Specifications

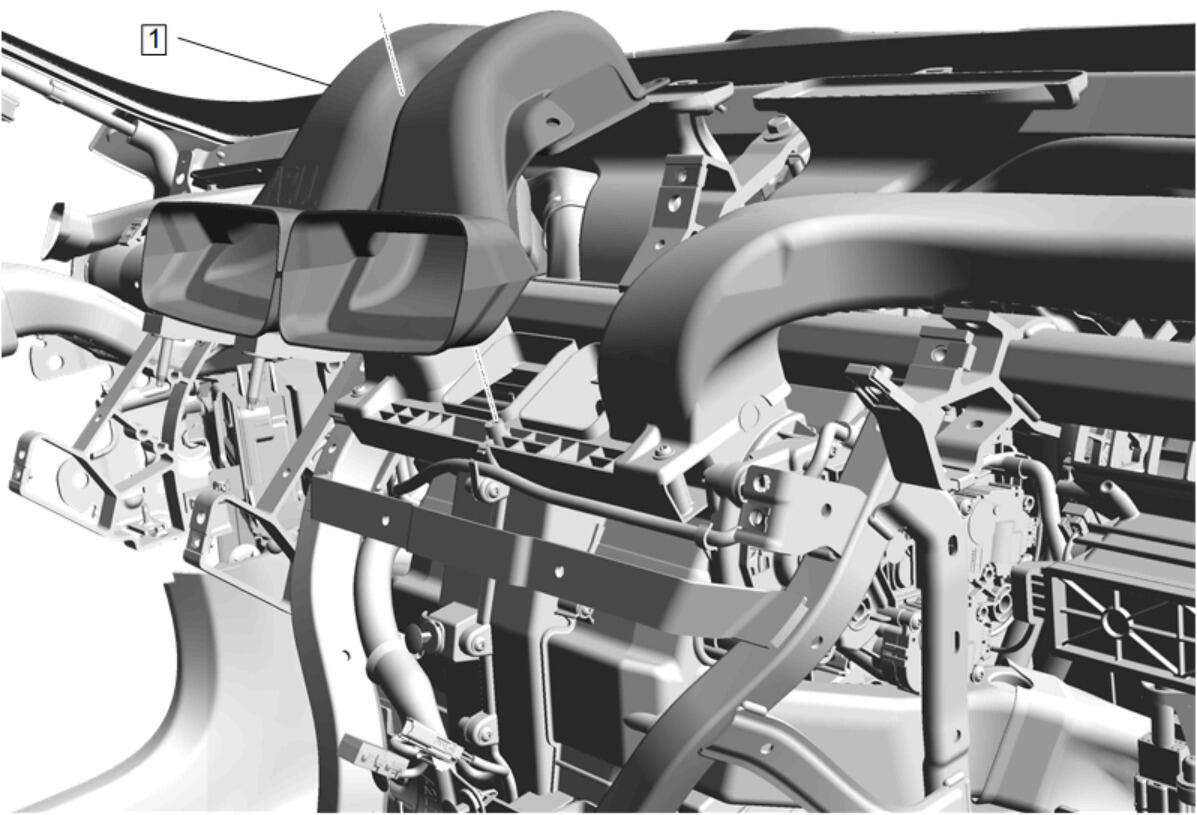

  24. GM5331769Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Center Air Outlet Duct (1) - Install

  25. Clip the harness onto the instrument panel center air outlet duct.

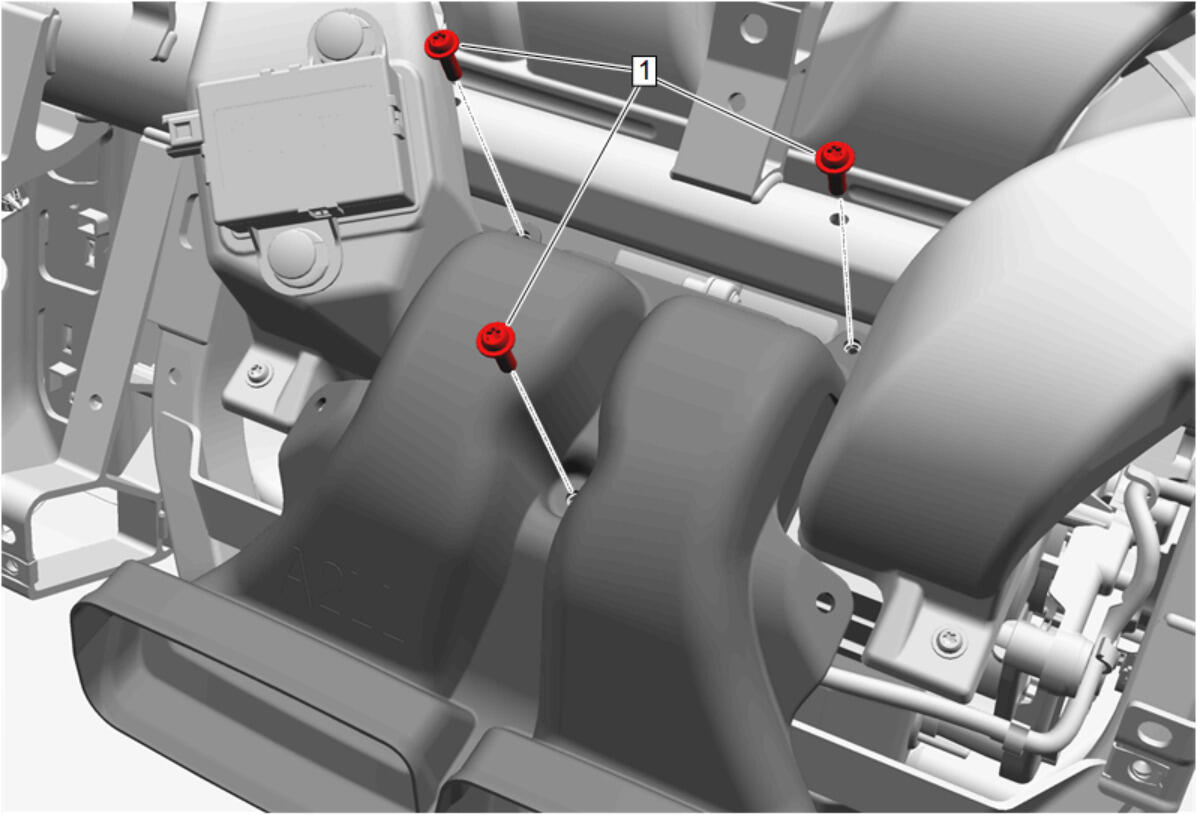

  26. GM5331767Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Center Air Outlet Duct Bolt (1) - Install and tighten [ 3x ] - Fastener Specifications

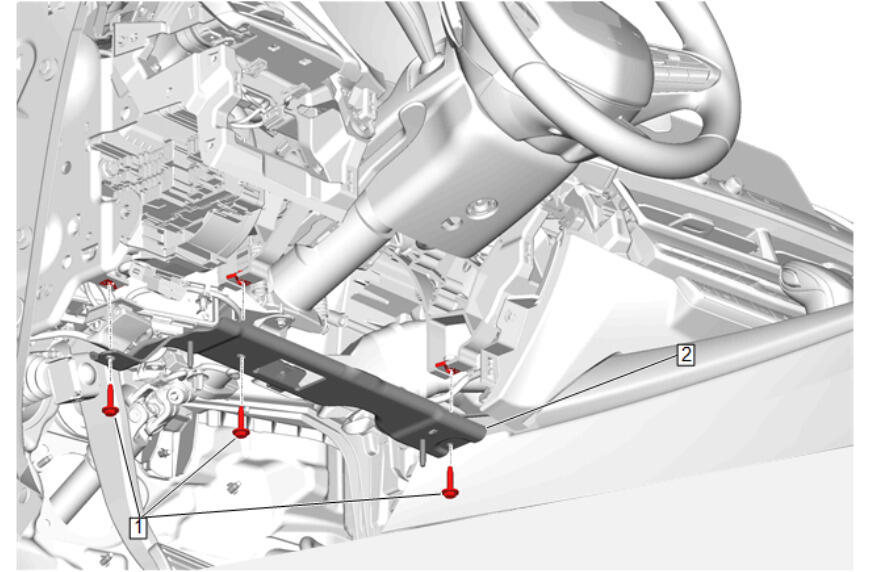

  27. GM5454049Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Knee Bolster Deflector (2) - Install

  28. Instrument Panel Tie Bar Brace Bolt (1) - Install and tighten [ 3x ] - Fastener Specifications

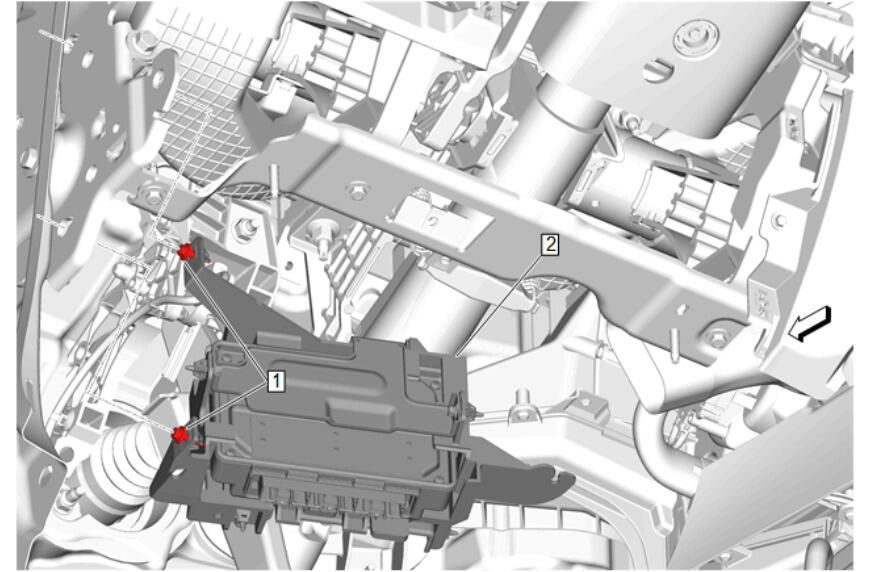

  29. GM5454443Courtesy of GENERAL MOTORS COMPANY

    Serial Data Gateway Bracket (2) - Install

  30. Serial Data Gateway Module Bracket Bolt (1) - Tighten [ 2x ] - Fastener Specifications
  31. Connect and position the wiring harness.

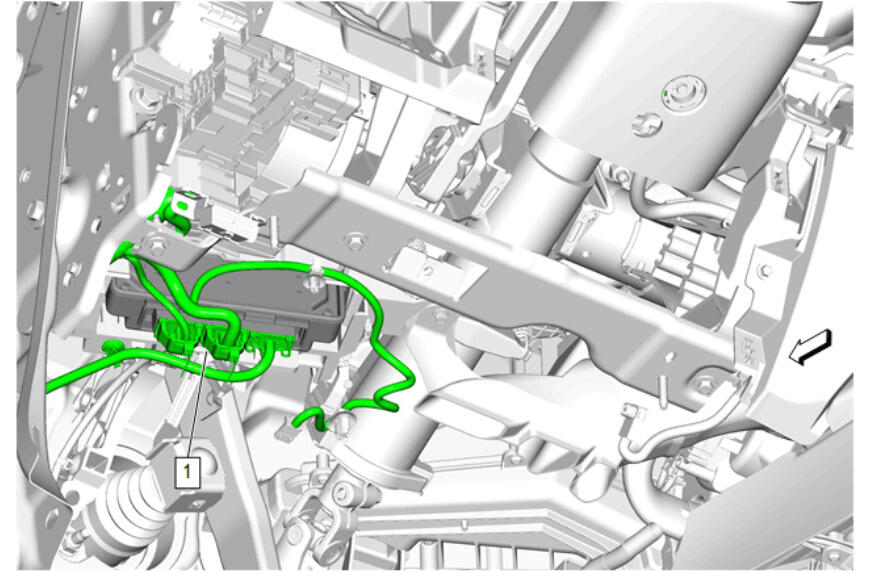

  32. GM5454224Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Typical wiring harness shown. Individual wiring harnesses may differ based on option content.

    Connect the electrical connectors. (1)

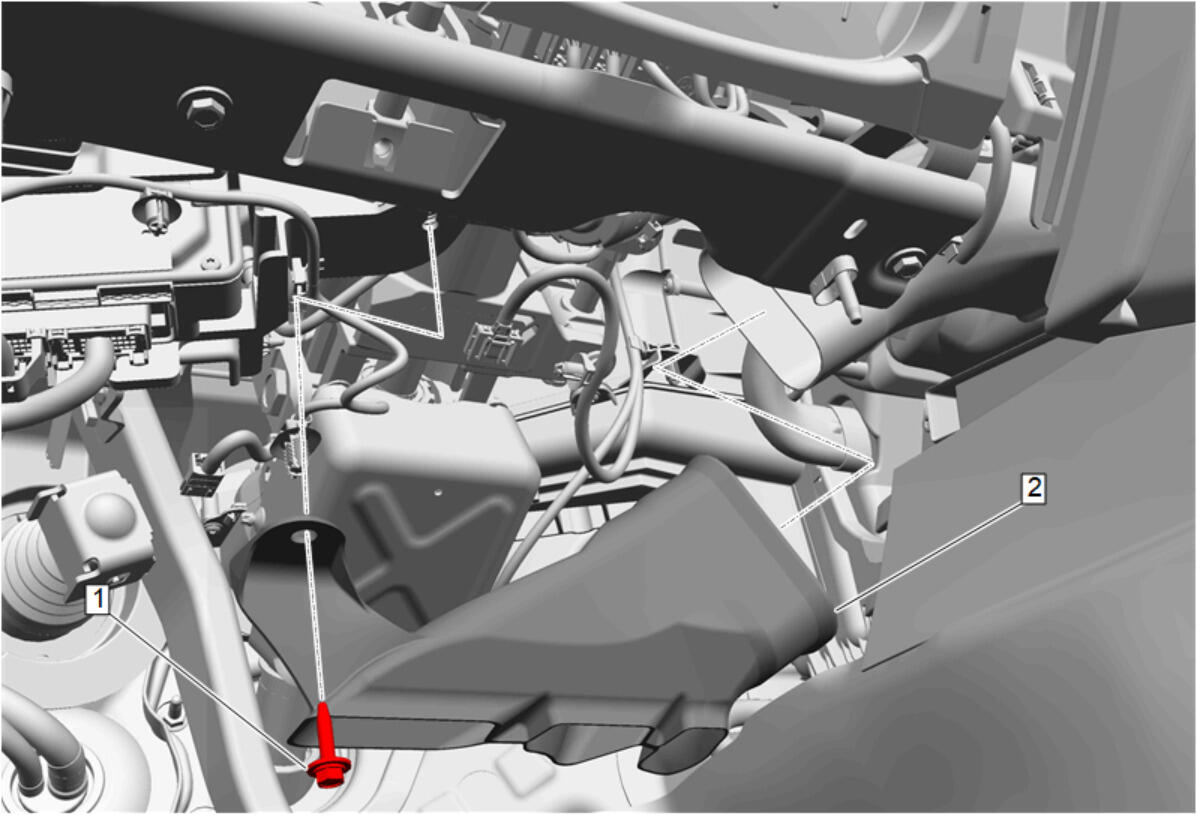

  33. GM5325852Courtesy of GENERAL MOTORS COMPANY

    Floor Front Air Outlet Duct - Left Side Outer (2) - Install

  34. Floor Front Air Outlet Duct Bolt (1) - Install and tighten - Fastener Specifications

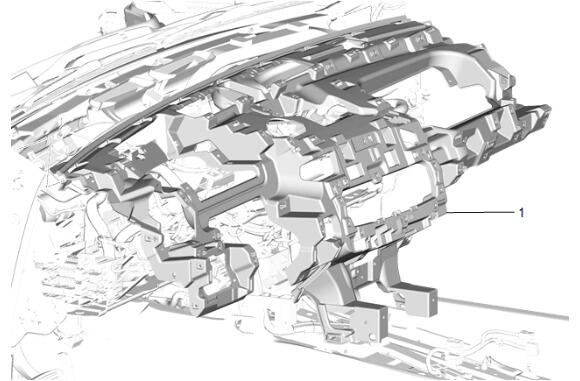

  35. GM5493268Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Carrier (1) - Install - Instrument Panel Carrier Replacement (without Head Up Display)Instrument Panel Carrier Replacement (with Head Up Display)

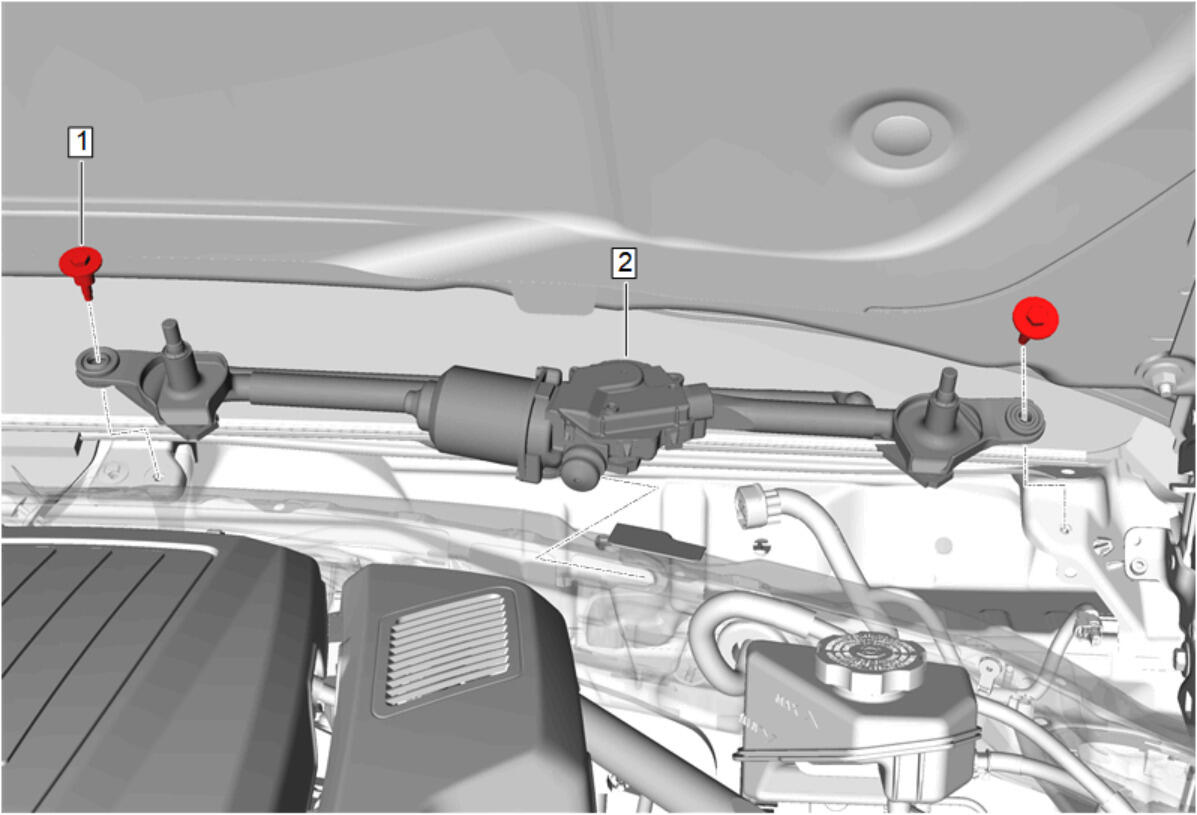

  36. GM5420344Courtesy of GENERAL MOTORS COMPANY

    Install the windshield wiper system module (2) in the vehicle.

  37. Windshield Wiper System Module Bolt (1) - Install and tighten [ 2x ] - Fastener Specifications
  38. Connect the windshield wiper motor electrical connector.
  39. Connect the battery negative cable. Battery Negative Cable Disconnection and Connection
  40. GM5420286Courtesy of GENERAL MOTORS COMPANY

    Windshield Wiper System Module Shield (1) - Install

  41. GM5417442Courtesy of GENERAL MOTORS COMPANY

    Air Inlet Grille Panel (2) - Install

    1. Install the air inlet grille panel (2) between both hood hinges.
    2. Connect the windshield washer nozzle hose to the windshield washer pump hose.
    3. Air Inlet Grille Panel Retainer (1) - Install [ 6x ]
  42. GM5421986Courtesy of GENERAL MOTORS COMPANY

    Hood Rear Outer Air Inlet Seal (2) - Install [ 2x ]

    1. Hood Rear Outer Air Inlet Seal Retainer (1) - Install
    2. Hood Rear Outer Air Inlet Seal (2) - Install
  43. GM5417116Courtesy of GENERAL MOTORS COMPANY

    Air Inlet Grille Panel Extension (1) - Install [ 2x ]

    1. Install the air inlet grille panel extension (1).
    2. Remove the masking tape from the top edge of the service part.
    3. Using a 50/50 mixture of isopropyl alcohol and clean drinkable water with a clean towel, remove any left over adhesive residue from the masking tape.
  44. GM5325063Courtesy of GENERAL MOTORS COMPANY

    Windshield Wiper Arm (3) - Install [ 2x ]

    1. Clean the windshield wiper transmission pivot shaft splines with a soft wire brush before installing the windshield wiper arm (3).
    2. Position the windshield wiper arm (3) on the windshield wiper transmission pivot shaft.
    3. Windshield Wiper Arm Nut (2) - Install and tighten - Fastener Specifications
    4. Windshield Wiper Arm Finish Cap (1) - Install
  45. GM5416557Courtesy of GENERAL MOTORS COMPANY

    If required, realign the windshield wipers to their respective alignment circles (1) on the windshield.

    1. Lubricate the windshield with clean washer fluid.
    2. Run the windshield wipers for two complete cycles then turn off the windshield wipers.
    3. Ensure the windshield wipers are in the full park position.
    4. Inspect the windshield wipers for proper position to the alignment circles (1) on the windshield.
