Installation Procedure

WARNING: This page is about a different car, the 2020 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the electrical connector.

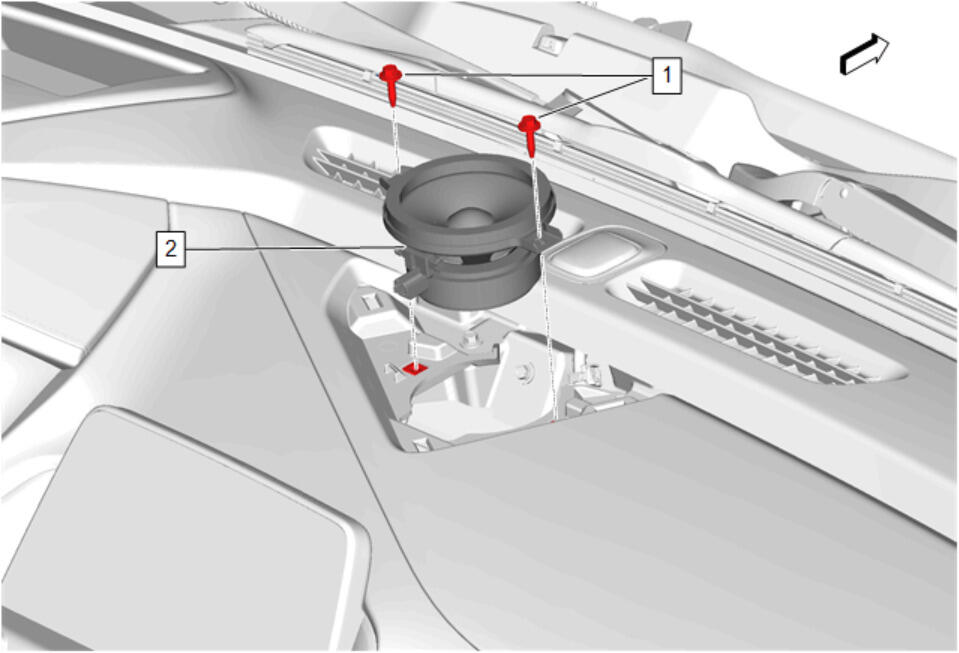

  2. GM5421988Courtesy of GENERAL MOTORS COMPANY

    Radio Front Center Speaker (2) - Install

  3. CAUTION:

    Refer to Fastener Caution .

  4. Radio Front Center Speaker Bolt (1) - Install and tighten [ 2x ] - Fastener Specifications

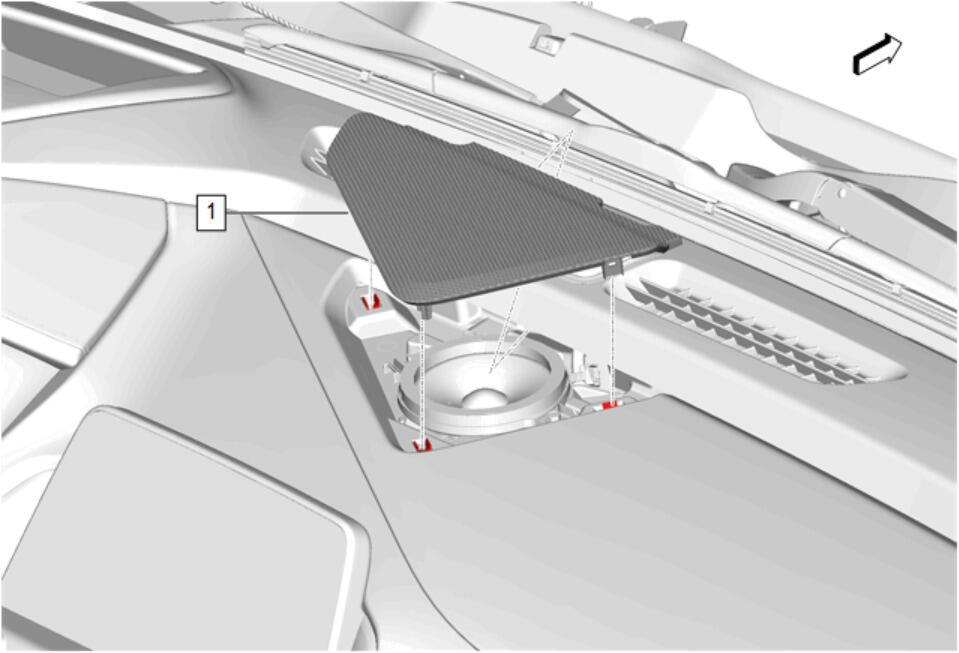

  5. GM5421968Courtesy of GENERAL MOTORS COMPANY

    Radio Front Center Speaker Grille (1) - Install
