Installation Procedure
WARNING: This page is about a different car, the 2020 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

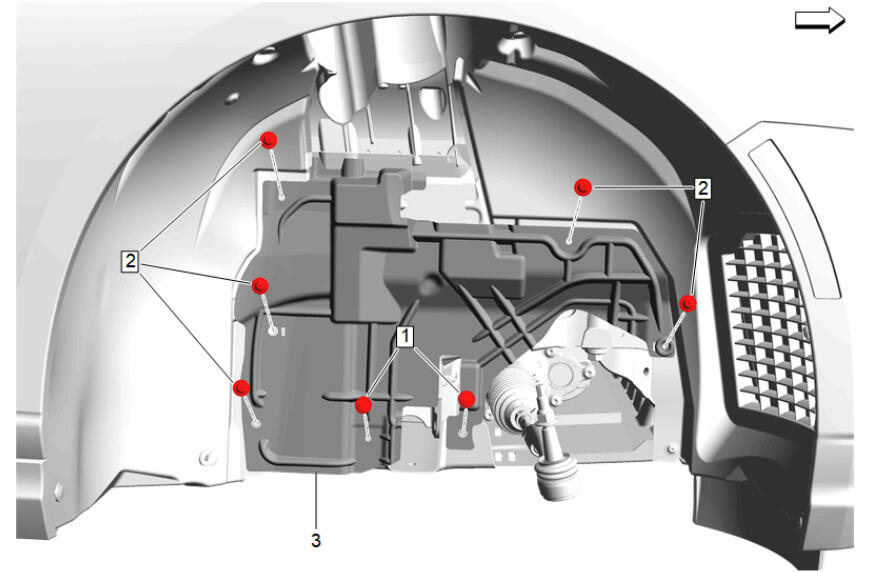

Windshield Washer Solvent Container (2) - Install
- Windshield Washer Solvent Container Bolt (1) - Install and tighten [2x] - Fastener Specifications

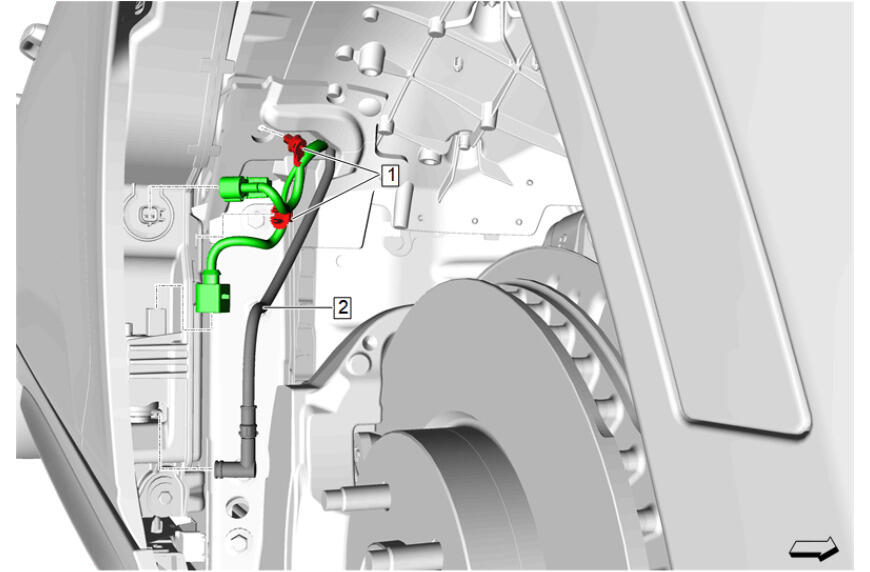

Windshield Washer Pump Hose (2) - Connect
- Install the windshield washer solvent container wiring harness retainers (1).
- Connect the electrical connectors.

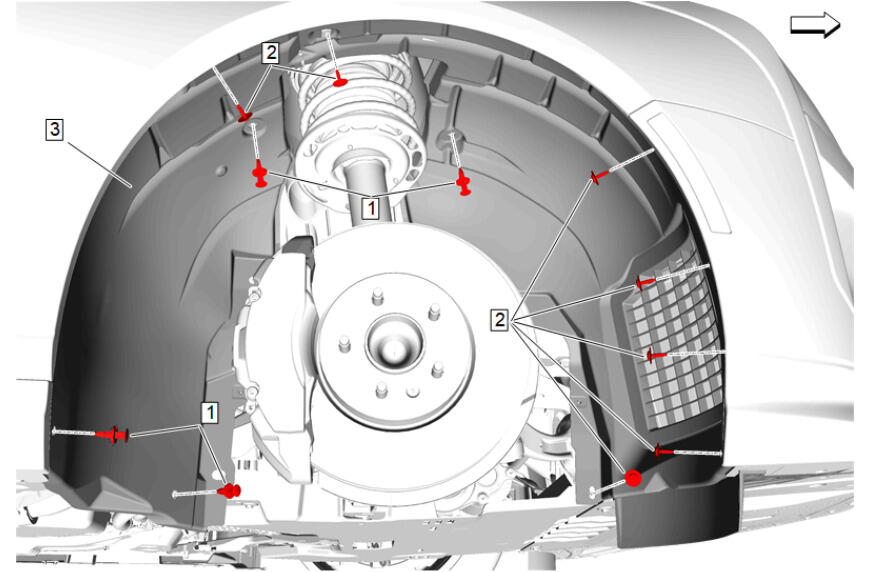

Front Wheelhouse Liner(3) - Install
- Front Wheelhouse Liner Bolt (2) - Install and tighten [7x] - Fastener Specifications
- Front Wheelhouse Liner Retainer (1) - Install [4x]

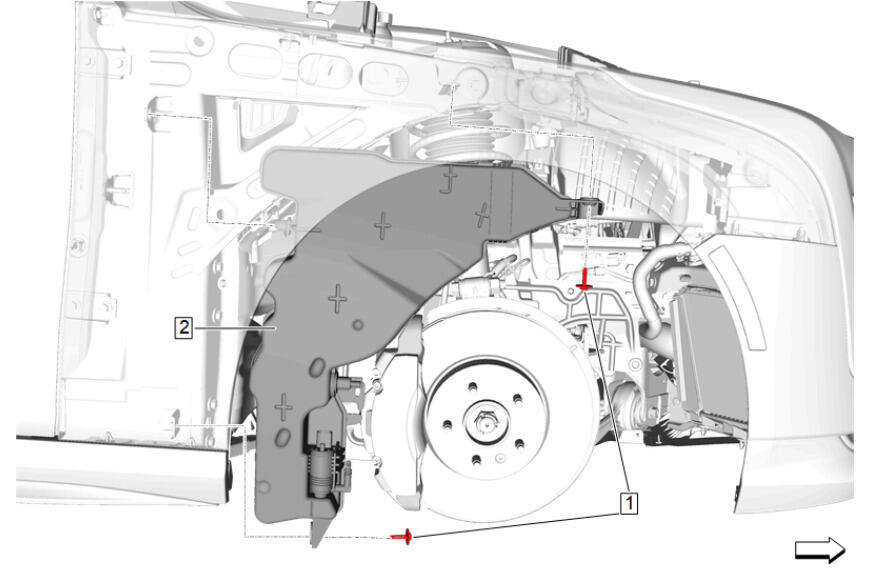

Front Wheelhouse Liner Bolt(3) - Install and tighten [3x] - Fastener Specifications
- Front Bumper Fascia Air Deflector Bolt (2) - Install and tighten [2x] - Fastener Specifications
- Front Tire Front Air Deflector Bolt (1) - Install and tighten - Fastener Specifications
- NOTE:
- Quantity of retainers may vary based on option content.
- Components removed for graphic clarity.

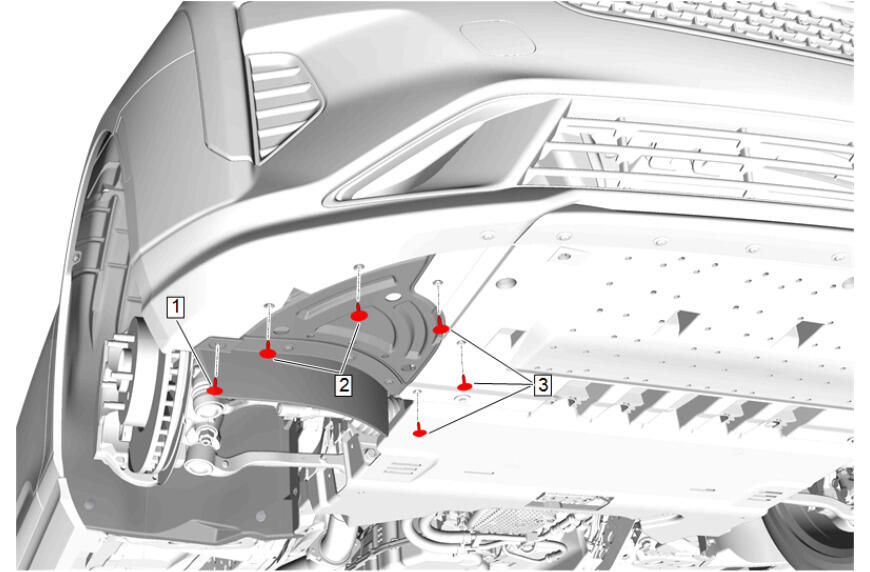

Engine Front Splash Shield(3) - Install
- Engine Front Splash Shield Bolt (2) - Install and tighten [5x] - Fastener Specifications
- Engine Front Splash Shield Retainer (1) - Install [2x]
- Install the right front tire and wheel assembly. Tire and Wheel Removal and Installation

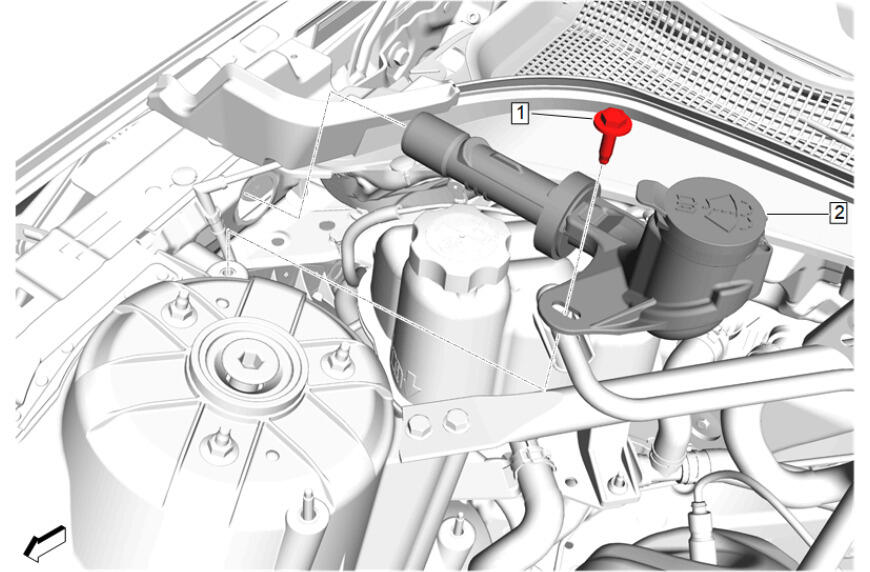

Lubricate the end of the windshield washer solvent container filler tube (2) with full strength windshield washer fluid.
- While twisting, push the windshield washer solvent container filler tube (2) into the windshield washer solvent container grommet until fully seated.
- Windshield Washer Solvent Container Filler Tube Bracket Bolt (1) - Install and tighten - Fastener Specifications
- Remove the drain pan.
- Refill the windshield washer solvent container
CAUTION:
Refer to Fastener Caution .
