Installation Procedure

WARNING: This page is about a different car, the 2020 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

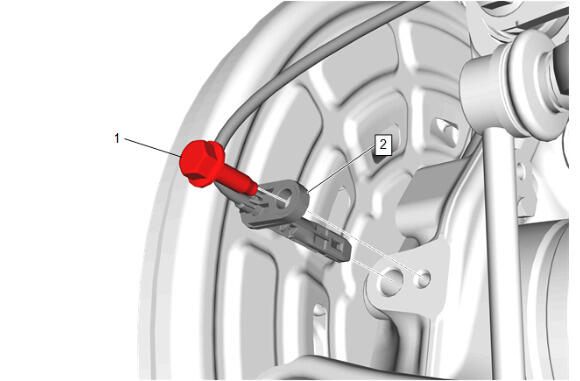

Rear Wheel Speed Sensor(2) - Install

CAUTION:

Fastener Caution

Rear Wheel Speed Sensor Bolt(1) - Install and tighten - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

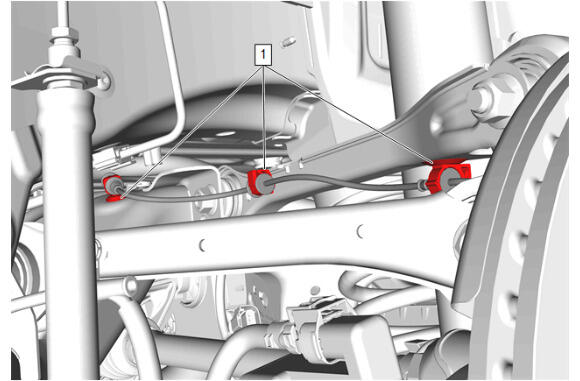

Install the rear wheel speed sensor harness to the retainers (1) and secure the retainers (1).
Courtesy of GENERAL MOTORS COMPANY

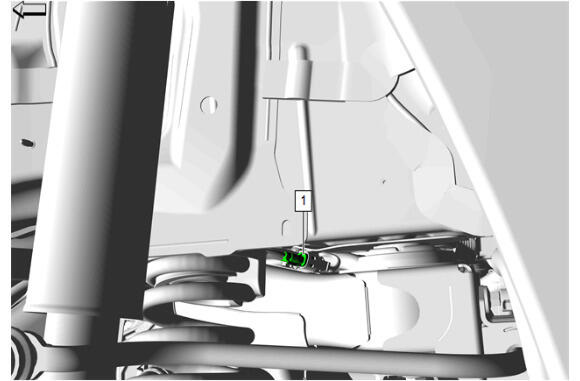

Electrical Connector(1) - Connect
Install the rear tire and wheel assembly. Tire and Wheel Removal and Installation
Remove the support and lower the vehicle.
