Installation Procedure
WARNING: This page is about a different car, the 2020 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

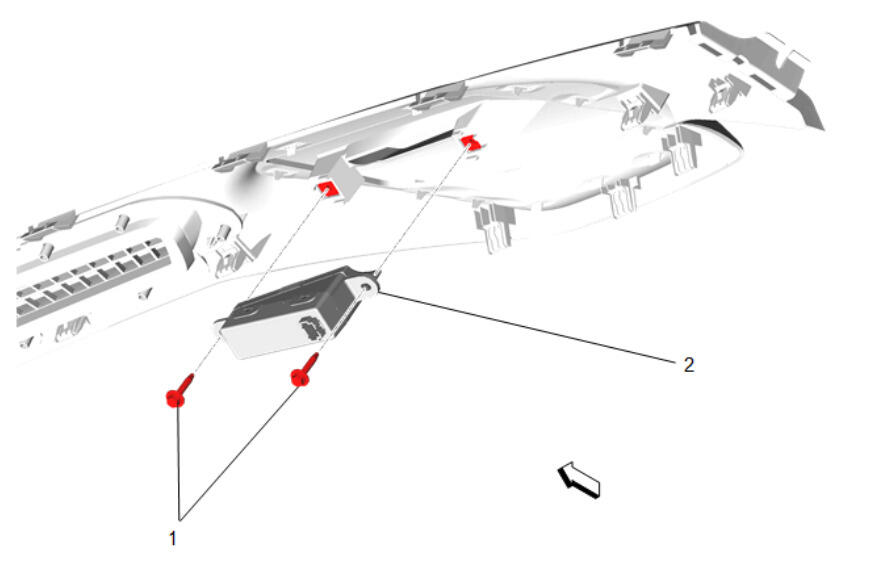

Forward Collision Alert Display (2) - Install
- Forward Collision Alert Display Bolt (1) - Install and tighten [ 2x ] - Fastener Specifications
Connect the electrical connector.

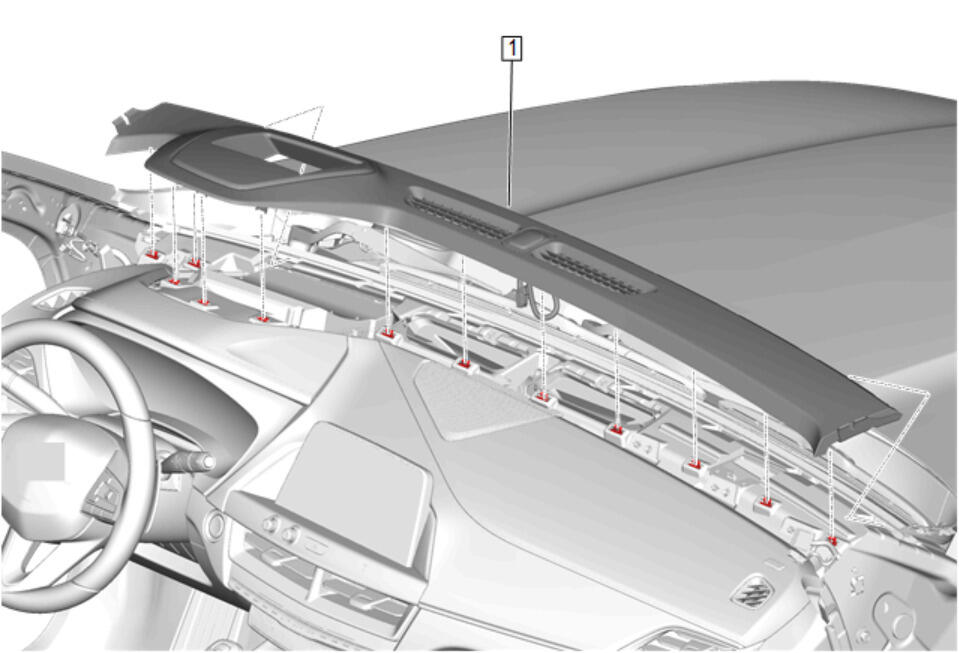

- Instrument Panel Extension (1) - Install
Connect the electrical connectors.

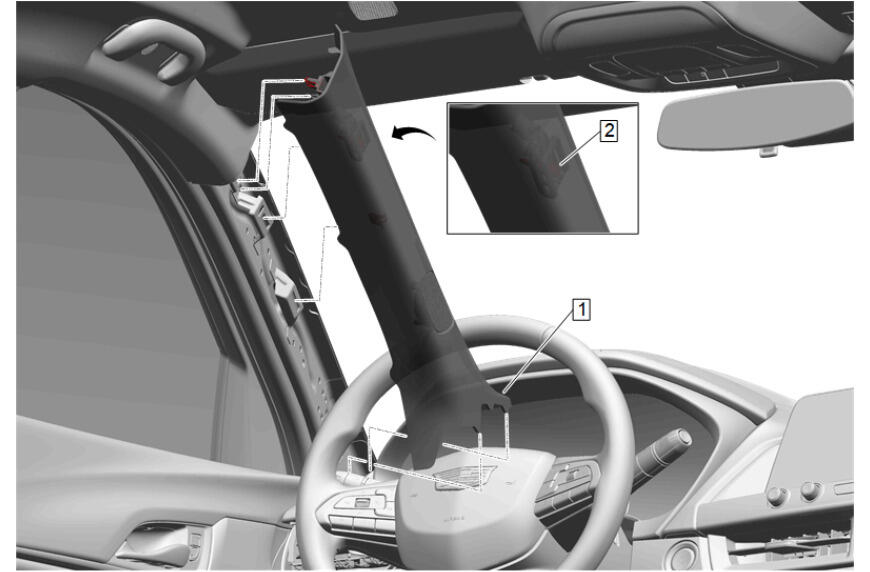

- Windshield Garnish Molding Bolt (2) - Install and tighten [ 2x ] - Fastener Specifications
- Align the retainer clips with the slots in the A pillar and press the windshield garnish moldings into place.
- Windshield Garnish Molding (1) - Install [ 2x ]
- Enable the SIR System.
CAUTION:
Refer to Fastener Caution .
