Removal Procedure
WARNING: This page is about a different car, the 2020 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.
Front Bumper Fascia (1) - Remove - Front Bumper Fascia Removal and Installation
Disconnect the electrical connector.

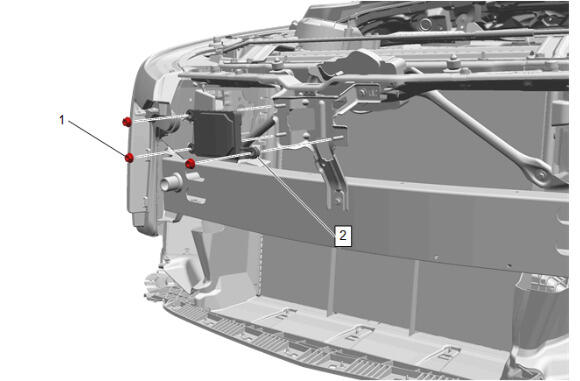

- Forward Range Radar Module/Sensor Nut (1) - Remove [ 3x ]
- Forward Range Radar Sensor (2) - Remove
