Special Tools

Illustration Tool Number/ Description

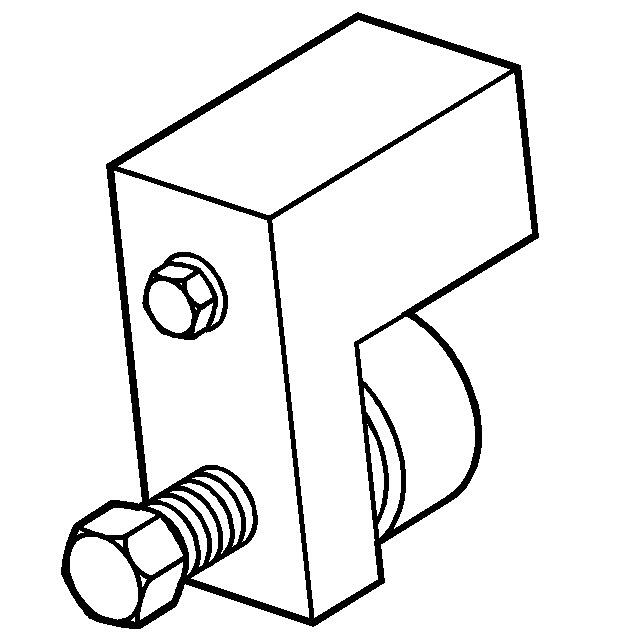

GM34593Courtesy of GENERAL MOTORS COMPANY
 DT 41239 - 1A
Cooler Line Seal Installer
GM777168Courtesy of GENERAL MOTORS COMPANY
 DT 41623-B
J 41623-B
Cooler Quick Connect Tool
GM1215917Courtesy of GENERAL MOTORS COMPANY
 DT 45096
J 45096
Transmission Oil Cooling System Flush and Flow Test Tool
GM1666170Courtesy of GENERAL MOTORS COMPANY
 DT 45096-30
J 45096-30
Cooler Flushing Adapter
GM792892Courtesy of GENERAL MOTORS COMPANY
 DT 45201
J 45201
Cooler Line Seal Remover
GM1639209Courtesy of GENERAL MOTORS COMPANY
 DT 47770
Seal Installer
