Catalytic Converter Heat Shield Replacement (Bank 1)

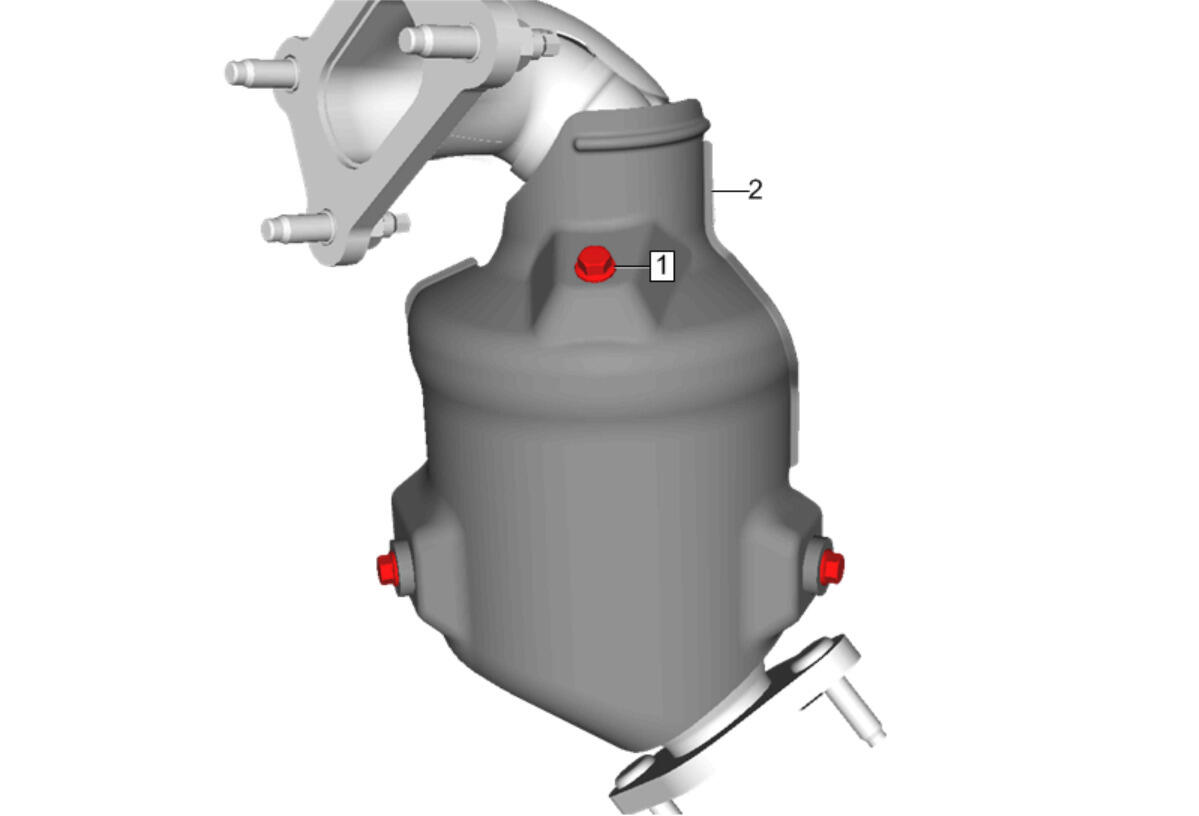

GM4288335Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
WARNING:

In order to avoid being burned, do not service the exhaust system while it is still hot. Service the system when it is cool.

WARNING:

Avoid contact with HOT components. Wear safety glasses and protective gloves to avoid personal injury.
1 Catalytic Converter Heat Shield Bolt [ 3x ]
CAUTION:

Refer to Fastener Caution .


Tighten
10 N.m (89 lb in)
2 Catalytic Converter Heat Shield
