Fastener Specifications

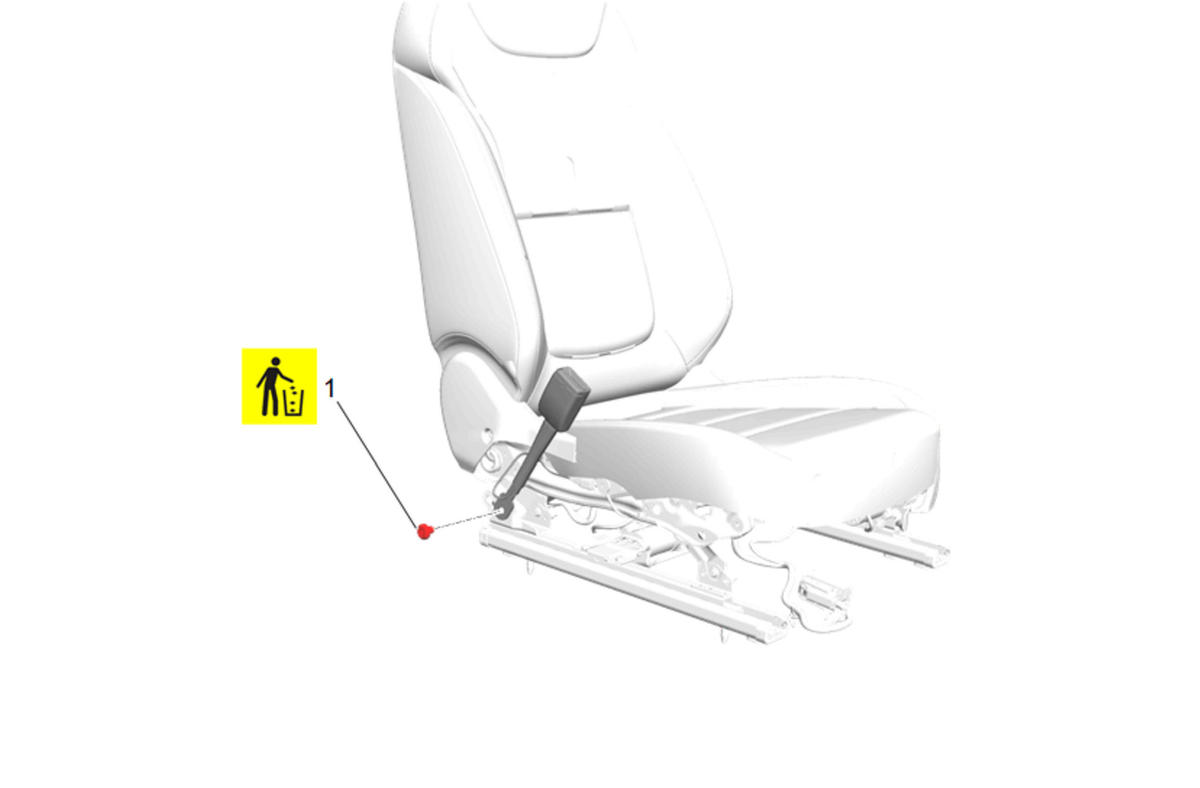

GM5775129Courtesy of GENERAL MOTORS COMPANY
Front Seat Belt Buckle

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Seat Belt Buckle Bolt Yes Yes 45 N.m (33 lb ft) Front Seat Belt Buckle Replacement

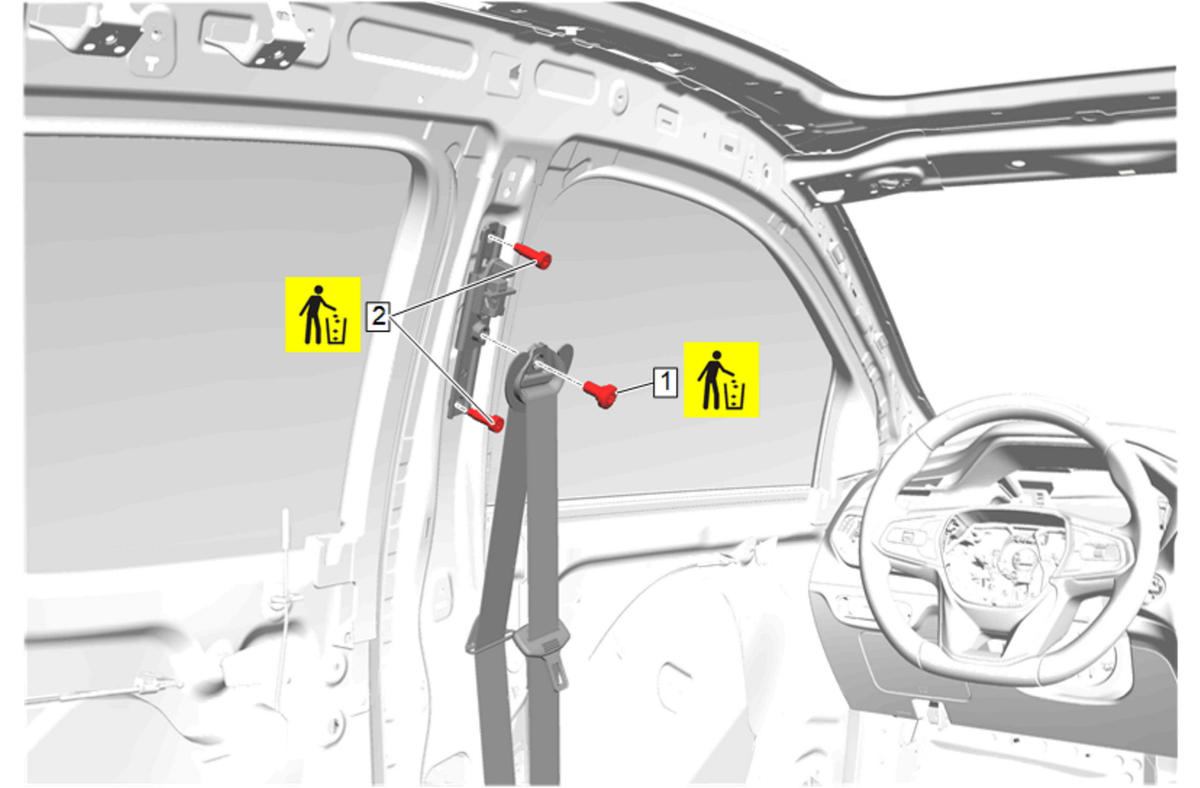

GM5775134Courtesy of GENERAL MOTORS COMPANY
Front Seat Belts

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Seat Belt Retractor D Ring Bolt Yes Yes 45 N.m (33 lb ft) Front Seat Belt Retractor Replacement
2 Front Seat Belt Adjust Bolt [2x] Yes Yes 45 N.m (33 lb ft) Front Seat Belt Guide Adjuster Replacement

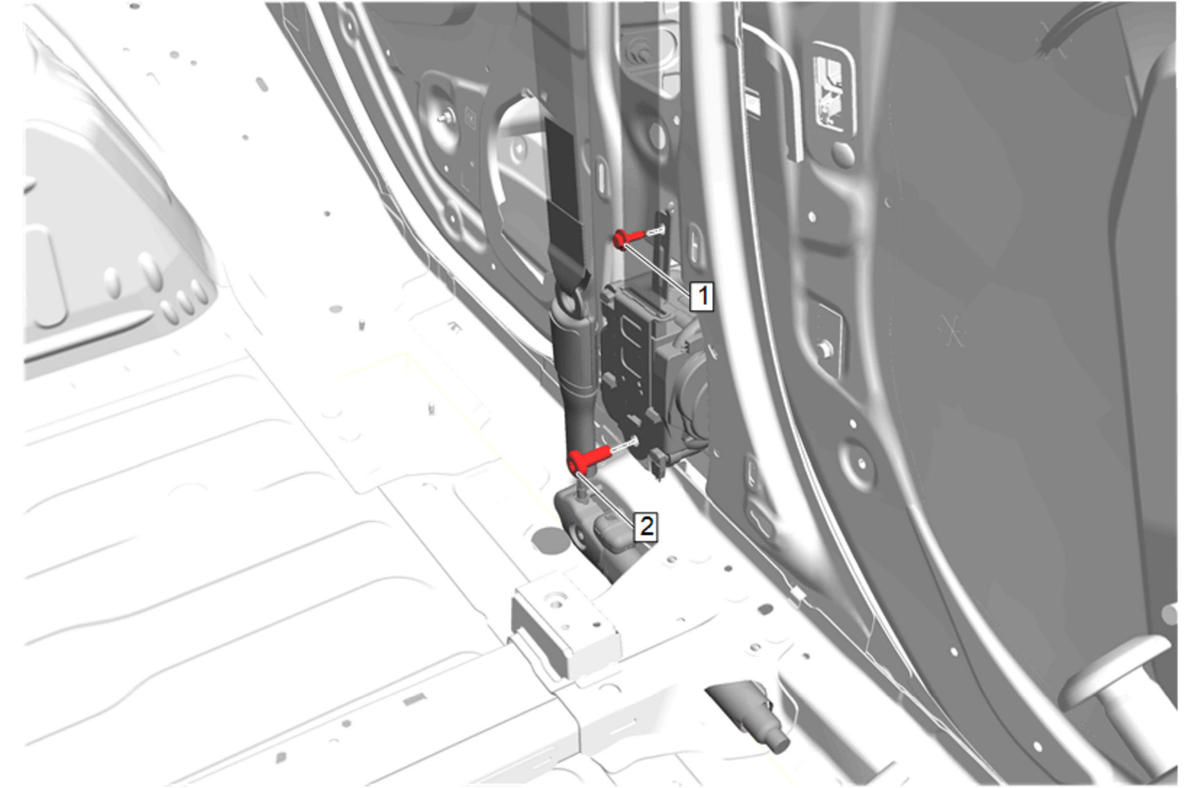

GM5775135Courtesy of GENERAL MOTORS COMPANY
Front Seat Belt Retractor

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Seat Belt Retractor Bolt- Upper - - 9 N.m (80 lb in) Front Seat Belt Retractor Replacement
2 Front Seat Belt Retractor Bolt- Lower - - 45 N.m (33 lb ft) Front Seat Belt Retractor Replacement

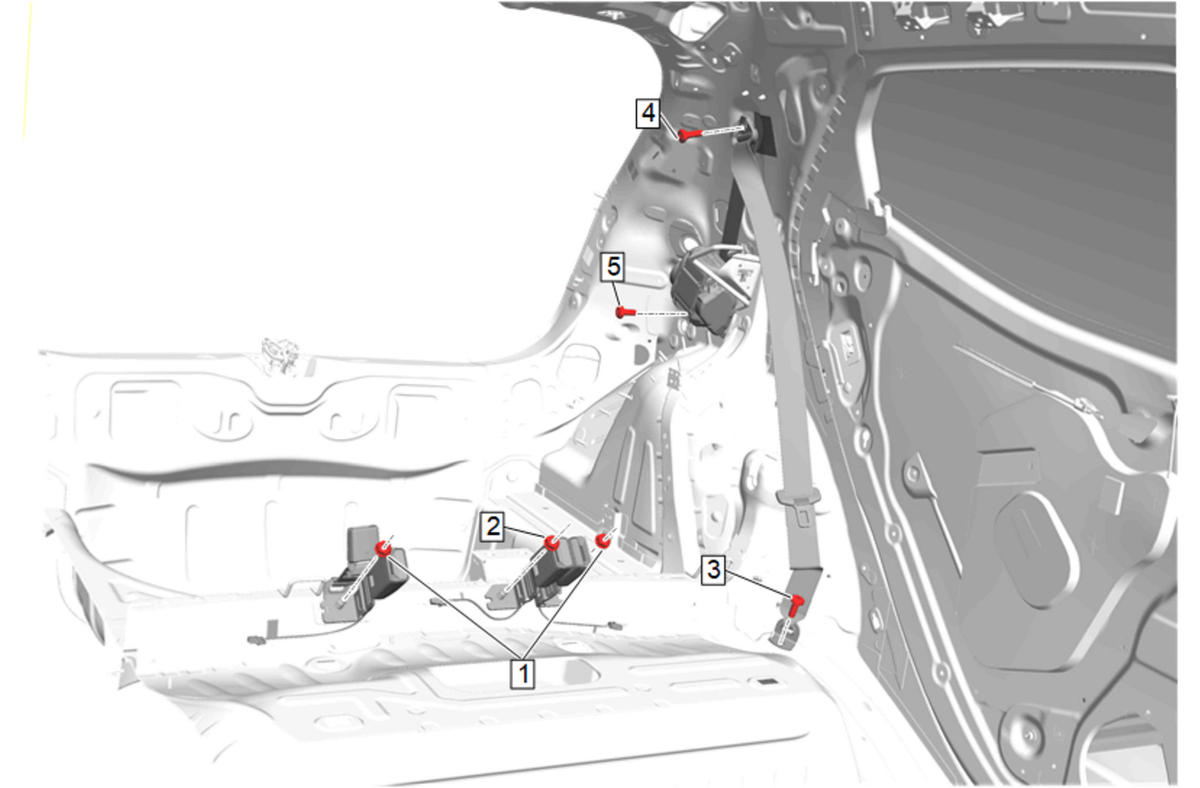

GM5775143Courtesy of GENERAL MOTORS COMPANY
Rear Seat Belts, Retractor and Buckle

Callout Component Name Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Seat Belt Buckle Nut - - 45 N.m (33 lb ft) Rear Seat Belt Buckle Replacement
2 Rear Center Seat Belt Buckle Nut - - 45 N.m (33 lb ft) Rear Center Seat Belt Buckle Replacement
3 Rear Seat Belt Retractor Bolt - - 45 N.m (33 lb ft) Rear Seat Belt Retractor Replacement
4 Rear Seat Belt Guide Bolt - - 45 N.m (33 lb ft) Rear Seat Belt Retractor Replacement
5 Rear Seat Belt Retractor Bolt - - 45 N.m (33 lb ft) Rear Seat Belt Retractor Replacement

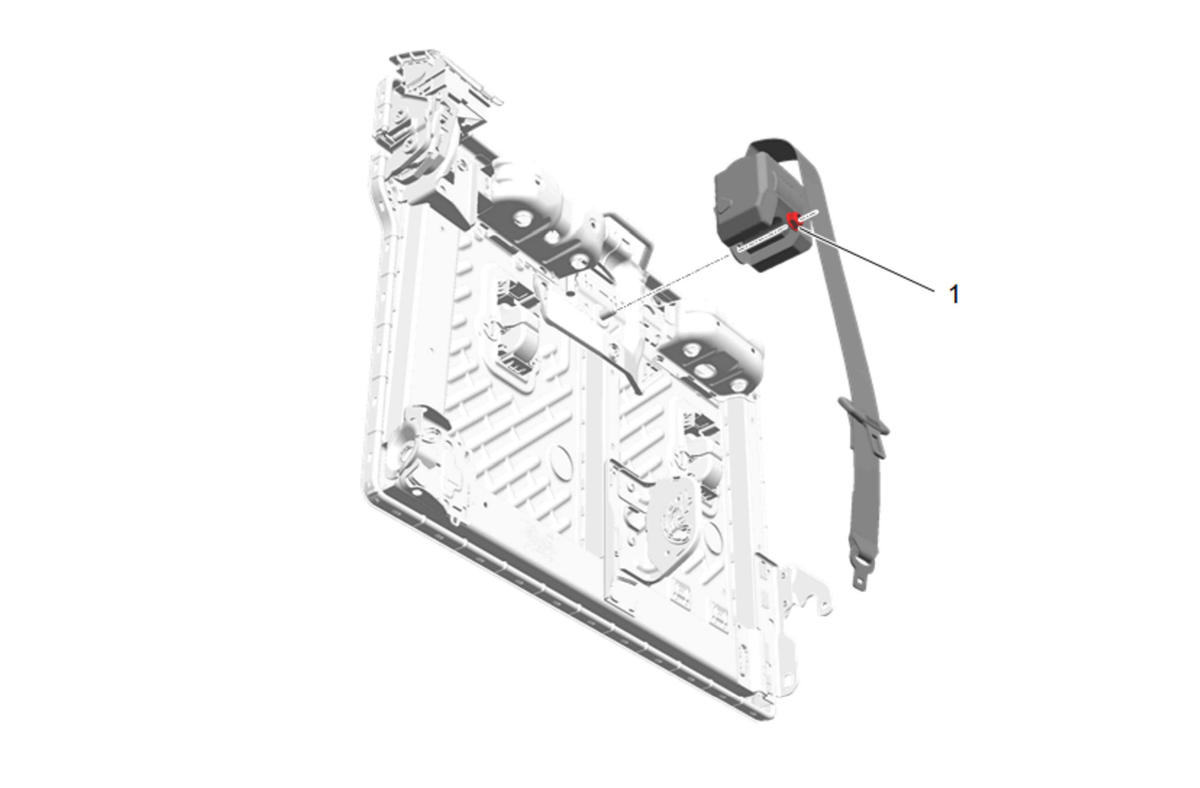

GM5775136Courtesy of GENERAL MOTORS COMPANY
Rear Center Seat Belt Retractor

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Center Seat Belt Retractor Fastener - - 45 N.m (33 lb ft) Rear Seat Center Belt Retractor Replacement (60 Percent Seat with Armrest) , or Rear Seat Center Belt Retractor Replacement (60 Percent Seat without Armrest)
