Exhaust Front Heat Shield Replacement

Courtesy of GENERAL MOTORS COMPANY

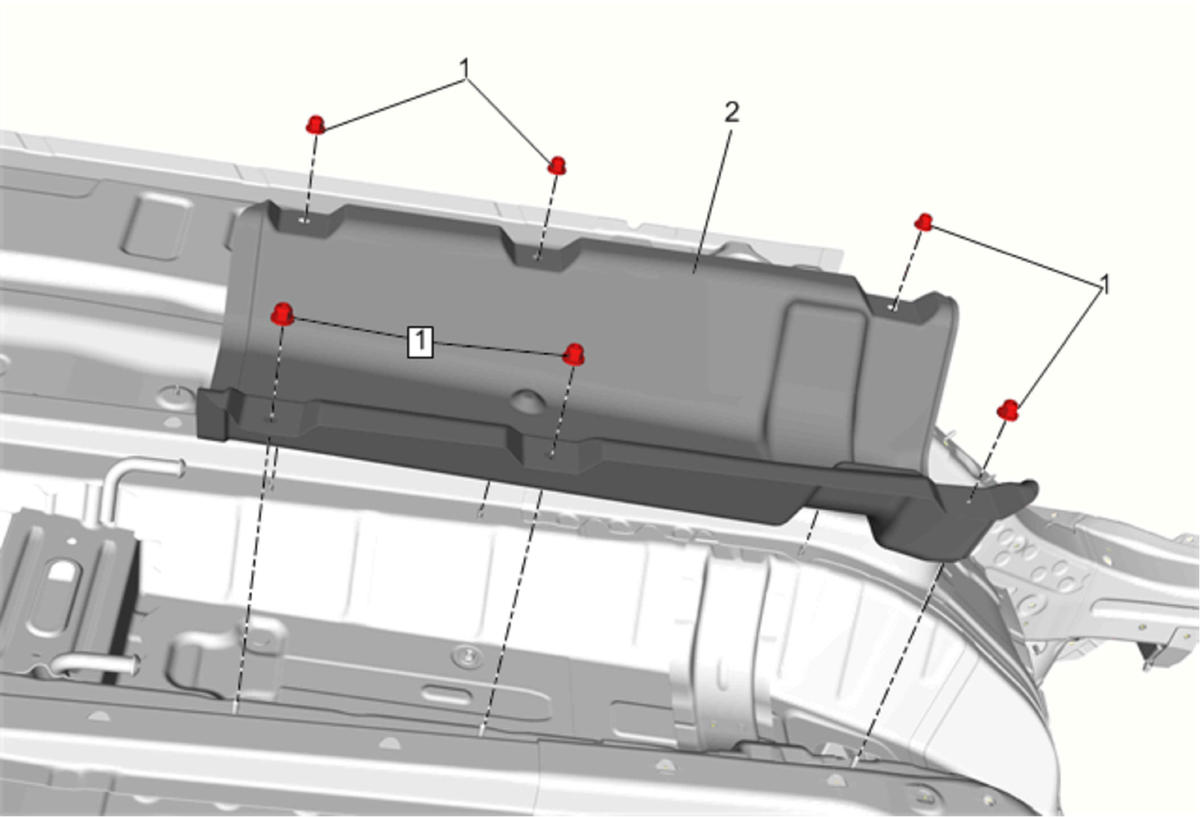

Callout	Component Name
Preliminary Procedure Remove the exhaust muffler. Refer to Exhaust Muffler Replacement .
1	Exhaust Front Heat Shield Nut (Qty: 6) CAUTION: Refer to Fastener Caution . Tighten 1 N.m (9 lb in)
2	Exhaust Front Heat Shield
