Knock Sensor Replacement

Courtesy of GENERAL MOTORS COMPANY

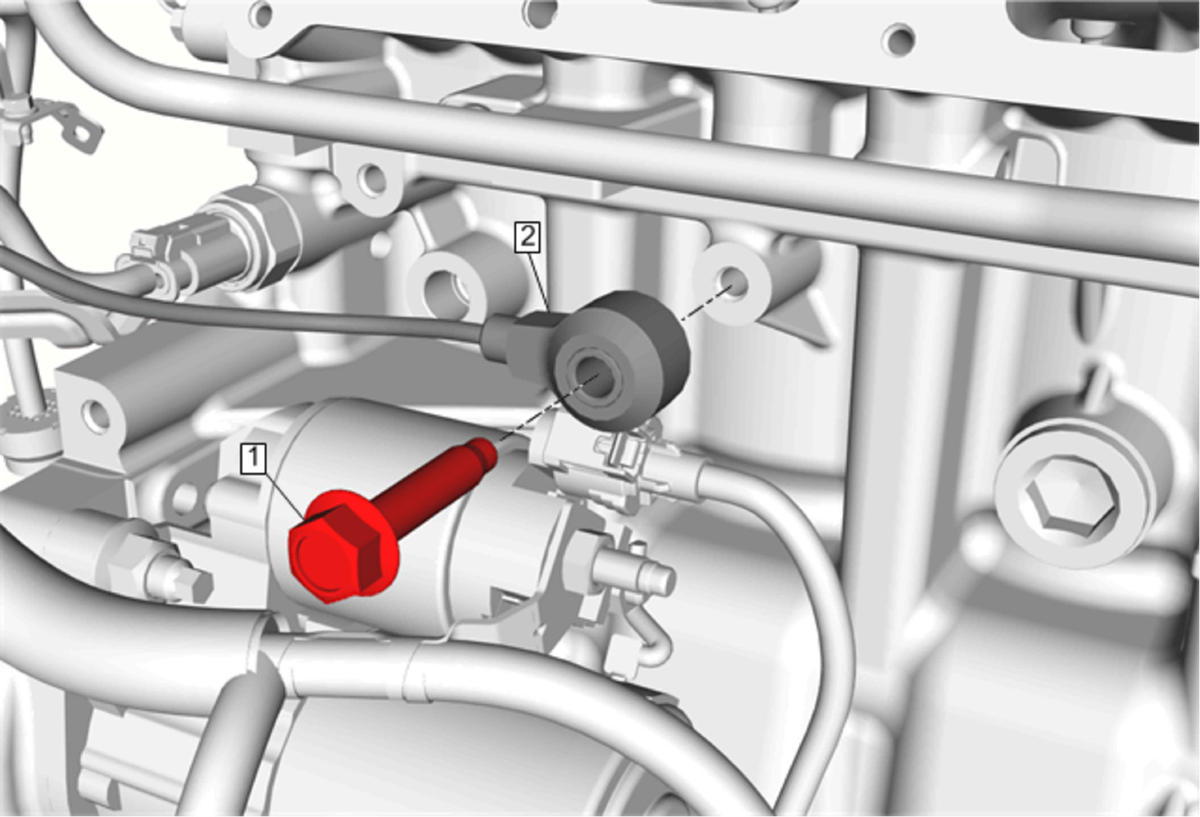

Callout	Component Name
Preliminary Procedures Disconnect the knock sensor wiring harness connector Starter Replacement
1	Knock Sensor Retaining Bolt CAUTION: Refer to Fastener Caution . Procedure Remove the knock sensor retaining bolt. Tighten 25 N.m (18 lb ft)
2	Knock Sensor

Callout

Component Name

Preliminary Procedures

Knock Sensor Retaining Bolt

CAUTION:

Procedure
Remove the knock sensor retaining bolt.
Tighten
25 N.m (18 lb ft)

Knock Sensor
