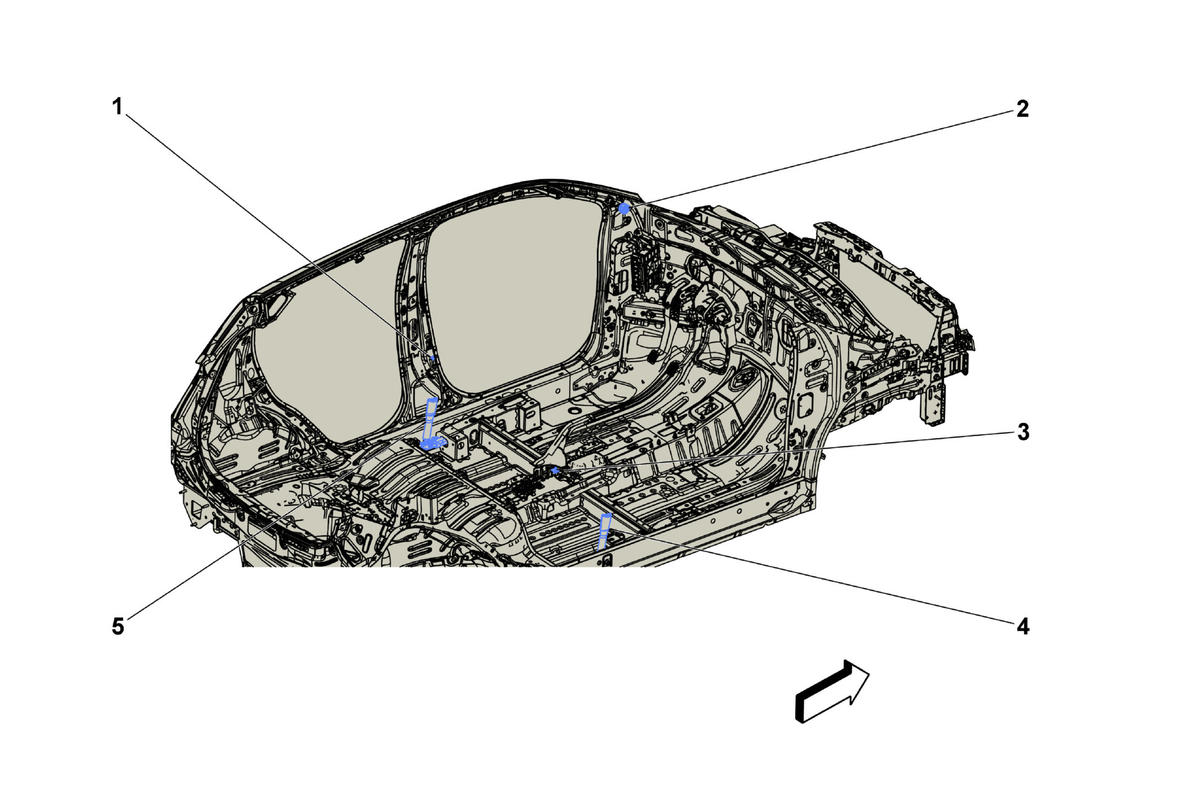

Passenger Compartment Components

GM4040508Courtesy of GENERAL MOTORS COMPANY
Passenger Compartment Components

Component Name Callout
B28D Door Ajar Switch - Driver B28D Door Ajar Switch - Driver 1
P19H Speaker - Left Front Tweeter (UFQ/UQ3) P19H Speaker - Left Front Tweeter (UQF/UQ3) 2
B80 Park Brake Switch B80 Park Brake Switch 3
F113P Seat Belt Anchor Pretensioner - Passenger F113P Seat Belt Anchor Pretensioner - Passenger 4
F113D Seat Belt Anchor Pretensioner - Driver F113D Seat Belt Anchor Pretensioner - Driver 5
