Installation Procedure

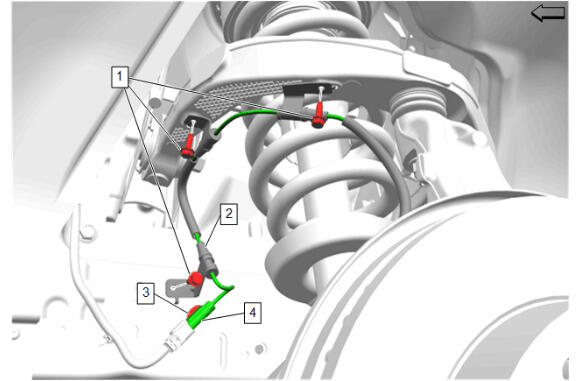

Front Wheel Speed Sensor (2) - Install
- Front Wheel Speed Sensor Bolt (1) - Install and tighten [3x] - Fastener Specifications
- Front Wheel Speed Sensor Retainer (3) - Install
- Connect the electrical connector. (4)

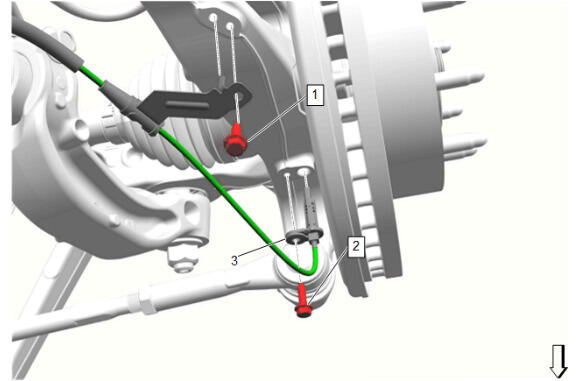

Apply a light coat of wheel speed anti-corrosion grease to the front wheel speed sensor (3) and mounting pad on the steering knuckle. Adhesives, Fluids, Lubricants, and Sealers
- Front Wheel Speed Sensor (3) @ Steering Knuckle - Install
- Front Wheel Speed Sensor Bolt (2) - Install and tighten - Fastener Specifications
- Front Wheel Speed Sensor Bracket Bolt (1) - Install and tighten - Fastener Specifications
- Install the front tire and wheel assembly. Tire and Wheel Removal and Installation
