Removal Procedure

Courtesy of GENERAL MOTORS COMPANY

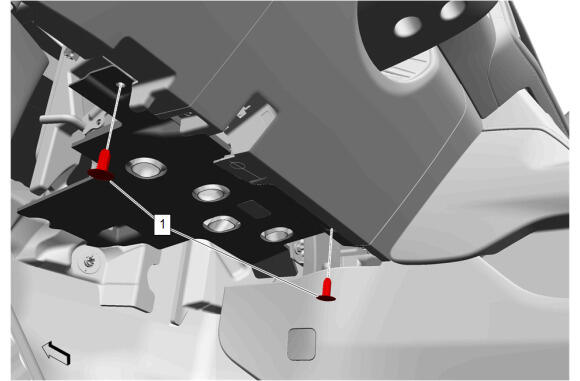

Instrument Panel Lower Insulator Retainer (1) - Remove[2x]
Courtesy of GENERAL MOTORS COMPANY

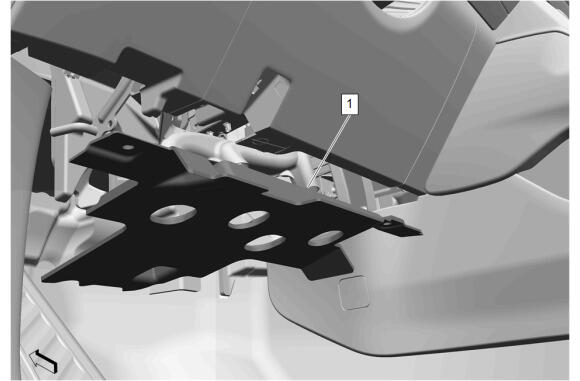

Instrument Panel Lower Trim Panel Insulator - Left Side (1) - Remove
Courtesy of GENERAL MOTORS COMPANY

Floor Front Air Outlet Duct Bolt (1) - Remove
Courtesy of GENERAL MOTORS COMPANY

Floor Front Air Outlet Duct (1) - Remove
Courtesy of GENERAL MOTORS COMPANY

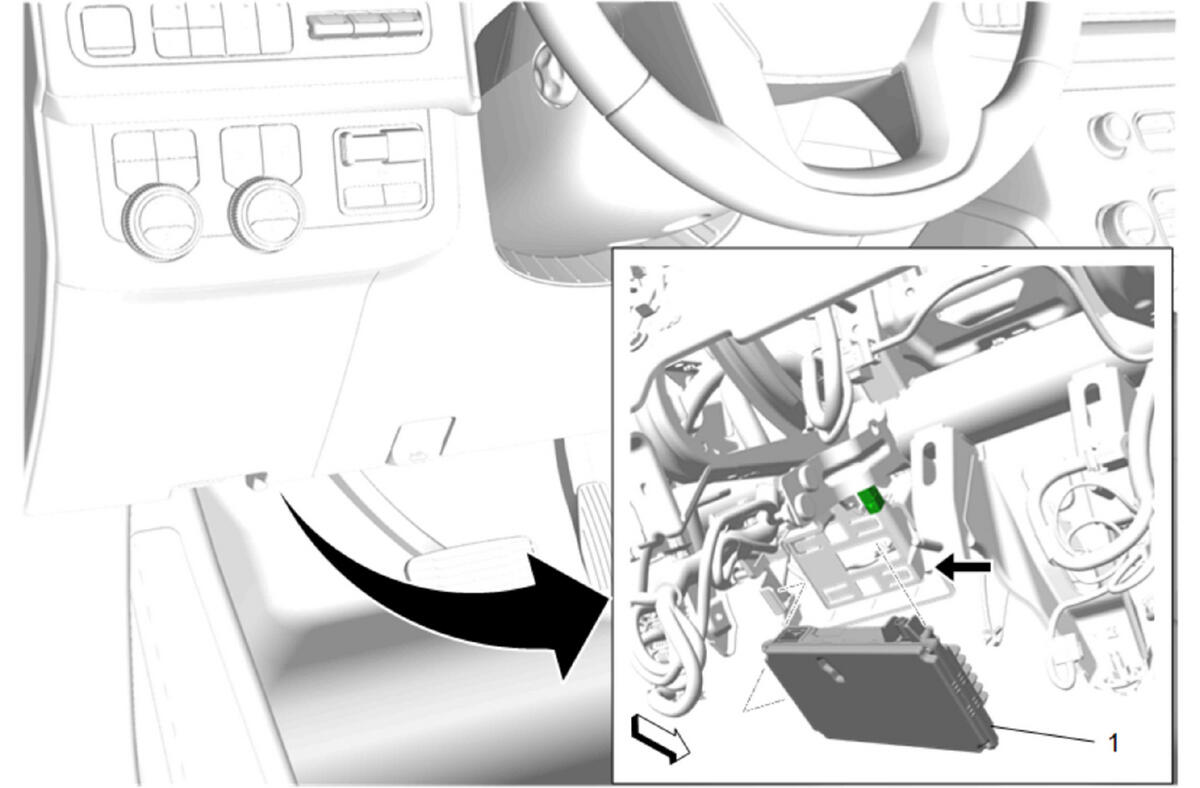

NOTE:
Some components not shown for graphic clarity.

Disconnect the electrical connector.
Release the retaining tab.
Driver Monitoring System Module (1) - Remove
