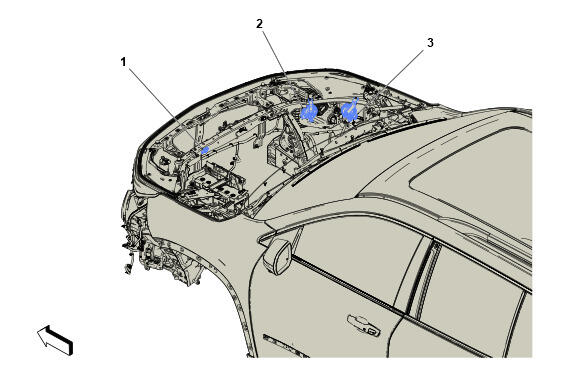

Left Front of Engine Compartment Components

GM6431845Courtesy of GENERAL MOTORS COMPANY
Callout Items
1 B58L Airbag Front End Discriminating Sensor - Left B58L Airbag Front End Discriminating Sensor - Left
2 P12B Horn - Low Note P12B Horn - Low Note
3 P12A Horn - High Note P12A Horn - High Note
